Heavy steel fabrication demands equipment capable of reliably severing plates and structural members exceeding 50mm in thickness. This is a threshold where alternative methods like plasma or laser often become technically unviable. Selecting underspecified or mismatched oxy-fuel equipment leads to poor cut quality. You end up requiring extensive secondary grinding. It also causes excessive gas consumption, accelerated consumable wear, and severe workplace safety hazards.
To optimize operational efficiency and safety, fabrication managers must evaluate gas cutting setups based on fuel gas compatibility, component durability, and specific application requirements. This guide breaks down the technical criteria for specifying industrial-grade equipment.
Match Consumables to Fuel: The choice between acetylene, propane, or propylene dictates the specific cutting nozzle design and hose grading required for safe, efficient operation.
Prioritize High-Flow Regulation: Heavy fabrication requires sustained, high-volume oxygen flow; two-stage regulators are critical to prevent pressure drops during long, deep cuts.
Safety is Non-Negotiable: Industrial setups must integrate high-capacity flashback arrestors at both the regulator and the cutting torch to mitigate the risks associated with heavy-duty gas cutting.
Scalability Dictates Automation: Transitioning from manual torches to mechanized tractors or CNC oxy-fuel tables significantly reduces per-part cost and improves beveling accuracy for high-volume production.
Evaluating the effectiveness of an operation relies on kerf width, edge squareness, dross accumulation, and the size of the Heat-Affected Zone (HAZ). A clean edge minimizes the need for secondary machining before welding. When you process thick plates, maintaining a perfectly square edge becomes exponentially harder. The oxygen stream must remain coherent over a long distance. If the stream diverges, you get a beveled cut even when the torch sits perfectly perpendicular to the plate.
In heavy applications, oxy-fuel remains the industry standard for carbon steel thicknesses above 50mm. You can push this process up to 300mm and beyond with the right setup. While plasma cuts faster on thin materials, oxy-fuel offers distinct advantages for heavy plates. The equipment acquisition costs are significantly lower. You also get superior portability for field work and structural modifications.
Feature | Oxy-Fuel Cutting | High-Definition Plasma |
|---|---|---|
Maximum Thickness (Carbon Steel) | 300mm+ | Typically up to 50mm (efficiently) |
Portability | High (Cylinders and hoses) | Low (Requires heavy power supplies) |
Edge Quality on Thick Plate | Excellent squareness if dialed in | Prone to edge rounding on very thick plate |
Initial Setup Cost | Low | High |
Clear parameters dictate what you can and cannot cut. The process relies on rapid oxidation. Therefore, it is highly effective for mild and low-alloy steels. However, it is completely ineffective for stainless steel and aluminum. These metals form refractory oxides with melting points higher than the base metal. The oxide layer acts as a shield, preventing the oxygen jet from severing the material.
Choosing between injector and equal-pressure torches depends entirely on your fuel gas pressure availability. Injector designs are necessary for low-pressure fuel gases. If you run low-pressure natural gas or piped propane, the injector uses the high-pressure oxygen stream to pull the fuel gas into the mixing chamber via a venturi effect. Equal-pressure designs, often called positive pressure or mixer torches, require both gases to enter the mixing chamber at roughly the same pressure. You use these for balanced high-pressure systems, typically with acetylene.

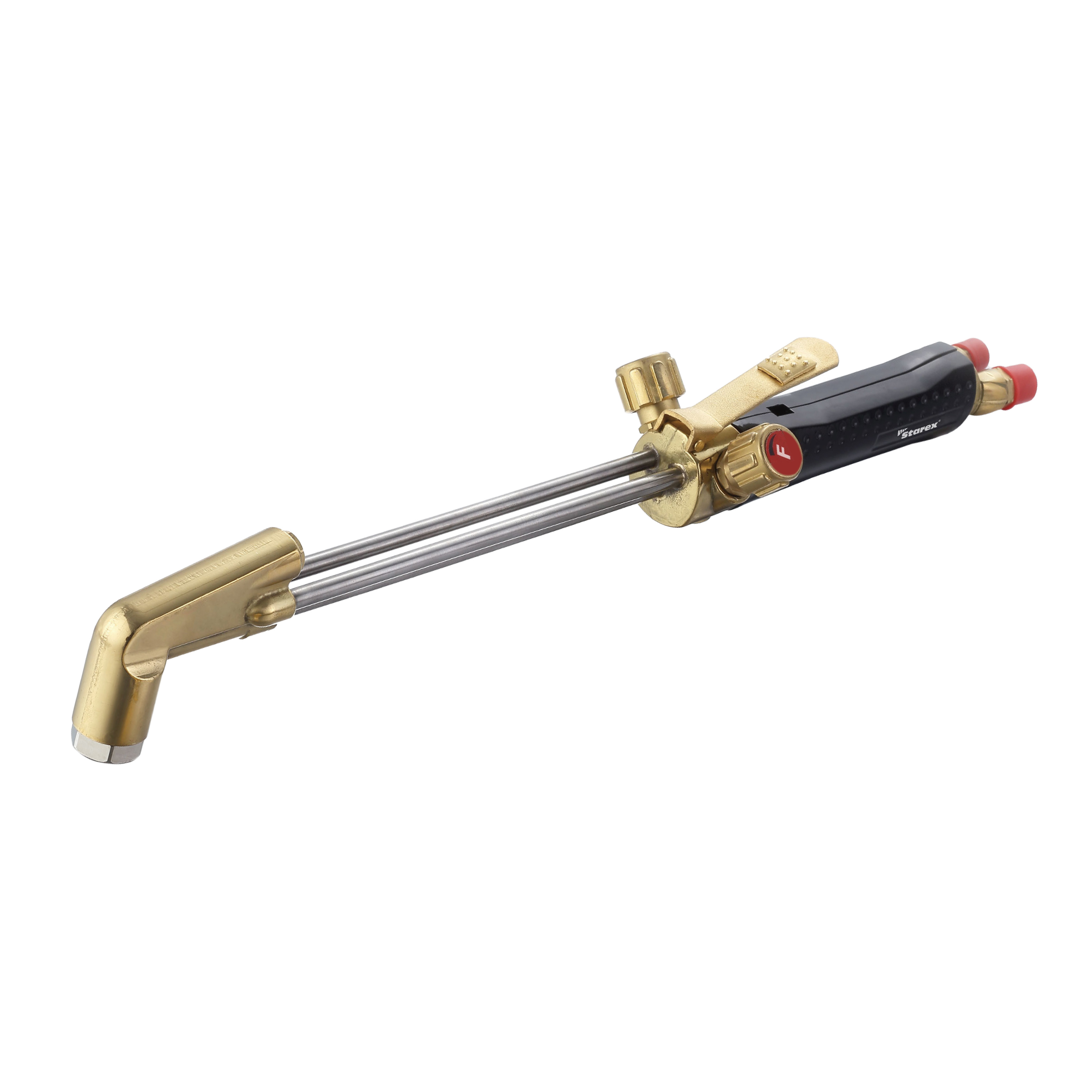

Ergonomics and form factor play a massive role in operator fatigue and safety. You must evaluate the length of the cutting torch based on the job. A standard 18-inch model works for general fabrication. However, when you cut 100mm plate, the heat radiating back at the operator is intense. Extended models measuring 36 inches or more provide necessary high-heat standoff. Head angles also matter. A 90-degree head suits flat plate work, a 75-degree head works well for structural coping, and a 180-degree straight head is standard for mechanized setups.
Durability metrics separate hobbyist tools from industrial workhorses. Assess the valve construction carefully. Stainless steel ball valves outlast traditional brass needle valves and provide more precise flow control. Look at the tube materials. Tri-tube stainless steel construction provides superior structural integrity. It resists bending if dropped and offers better flashback resistance compared to standard brass tubes.
Fuel-specific designs are critical for safety and performance. You cannot mix and match tips across different fuel gases. One-piece copper nozzles are strictly required for acetylene. Acetylene burns extremely fast, and the one-piece design dissipates heat quickly to prevent pre-ignition. Two-piece splined nozzles are necessary for slower-burning gases like propane or natural gas. The two-piece design creates a recessed face, which anchors the flame and prevents it from blowing off the tip.
Sizing for thickness involves reading manufacturer charts to match the orifice size to the steel thickness. If you use a tip designed for 25mm steel to cut 50mm steel, you will not penetrate the plate. If you use a tip designed for 100mm steel on 25mm plate, you waste massive amounts of oxygen and create a wide, sloppy kerf. The cutting nozzle must deliver the exact oxygen jet velocity required for the specific thickness.
Evaluating standard versus heavy-preheat options is necessary for real-world steel conditions. Clean, new steel cuts easily with standard preheat. However, heavily scaled, rusted, or primed steel plates require more energy to reach the ignition temperature. A heavy-preheat tip features more preheat orifices, bringing the material to the kindling point faster and maintaining the cut through heavy mill scale.
Proper maintenance prevents carbon buildup and orifice distortion. Follow these steps to maintain your equipment:
Secure the tip in a vise or hold it firmly.
Select the correct size cleaning wire from your tip cleaner set. It should slide in easily without forcing.
File the face of the tip flat using the file included in the cleaner set.
Push the cleaning wire straight up and down through the cutting orifice. Do not twist it, as this can bell-mouth the hole.
Blow out the orifices with a quick burst of oxygen before reattaching to the handle.
Heavy fabrication necessitates two-stage regulators. A single-stage regulator drops cylinder pressure to delivery pressure in one step. As the cylinder empties, the delivery pressure creeps up, requiring the operator to constantly adjust the knob. A two-stage regulator drops the pressure in two steps. The first stage drops cylinder pressure to an intermediate level, and the second stage drops it to the delivery pressure. This maintains consistent delivery pressure from a full cylinder down to an empty one, preventing mid-cut blowouts and inconsistent flame chemistry.
Sizing regulators and lines to handle massive oxygen consumption is required for processing steel over 100mm thick. Standard regulators will freeze up or fail to deliver the required cubic feet per hour (CFH). You must specify high-flow regulators designed specifically for heavy-duty applications. The internal orifices and diaphragms are larger to accommodate the volume.
Utilizing multi-cylinder manifolds or liquid dewars supports high-flow stations without pressure drops. Pulling high volumes of gas from a single cylinder causes the liquid inside (in the case of propane or propylene) to freeze, dropping the pressure drastically. Manifolding multiple cylinders together distributes the draw. For high-volume shops, switching to liquid oxygen dewars eliminates frequent cylinder changeouts and provides a stable, high-volume supply.
Evaluating encapsulated or armored gauges ensures they withstand the physical abuse typical of a heavy fabrication shop floor. Unprotected gauges get smashed by swinging steel or dropped tools. Armored gauges feature steel guards or heavy rubber boots that absorb impacts.
Hose grading is a critical safety factor that many shops overlook. Grade T hoses feature a neoprene cover and tube. They are absolutely necessary when using alternate fuel gases like propane or propylene. These gases will chemically degrade the rubber in standard hoses, causing them to rot from the inside out and eventually rupture. Grade R or RM hoses are suitable for acetylene-only setups.
Mandating high-flow flashback arrestors mitigates severe safety risks. A flashback occurs when the flame burns back into the torch and travels up the hoses. You must install flashback arrestors with thermal cut-off valves at the regulator. You should also install check valves at the handle. The check valves prevent reverse flow of gases, while the arrestors extinguish the flame front.
Standard operating procedures must include checking hose integrity. Operators should use leak detection spray or bubble test solutions on all connections weekly. Annual testing protocols for flashback arrestors are also required. A qualified technician must flow-test them to ensure the internal sintered metal filters are not clogged and the check valves seat properly.
Personal Protective Equipment (PPE) requirements go beyond standard shop gear. Operators need shade 5 or shade 6 cutting goggles to protect against infrared radiation. Heat-resistant leather apparel, including jackets and spats, protects against heavy slag splatter. Localized fume extraction and spark shielding protect both the operator and the surrounding environment from toxic fumes and fire hazards.
Acetylene provides the highest flame temperature at 3,160°C. It delivers the fastest preheat times of any fuel gas. It is best for rapid piercing, localized work, and short, intermittent cuts. However, it carries strict storage regulations. You cannot safely use acetylene at pressures above 15 psi. It also has flow-rate limitations known as the 1/7th withdraw rule. You cannot draw more than 1/7th of the cylinder's capacity per hour without pulling liquid acetone into your hoses.
Propane and propylene offer a lower flame temperature but higher total heat release (BTU). The heat is distributed throughout the outer envelope of the flame, rather than concentrated at the inner cone. They are superior for very thick steel and edge beveling. They offer safer storage and no 15 psi pressure limit. However, they require specialized tips and slightly longer preheat times before you can initiate the cut.
Natural gas is highly effective for stationary CNC tables. It requires pipeline infrastructure and heavy-preheat tips. The primary advantage is that it eliminates cylinder handling logistics entirely. You never run out of gas mid-cut, and you do not pay for cylinder rentals. The lower flame temperature means piercing takes longer, but edge quality on thick plate is excellent.

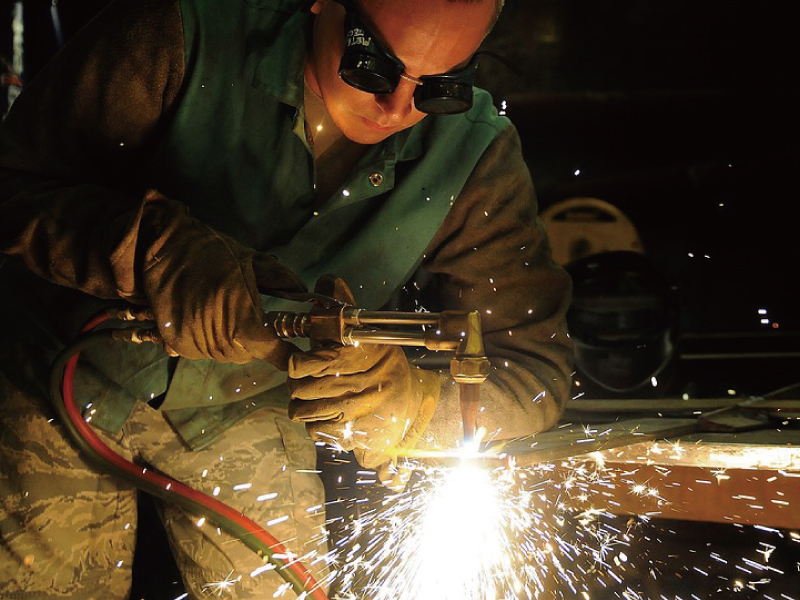

Handheld tools are best used for custom fabrication, structural modifications, scrap reduction, and field repairs. When mobility is paramount, nothing beats a manual setup. You can drag the hoses up scaffolding or into tight spaces where machines cannot fit.
Their limitations include a high dependence on operator skill. Maintaining a perfectly steady travel speed and consistent standoff distance by hand is difficult. This results in lower consistency on long, straight cuts or precise bevels compared to automated solutions. Manual cuts almost always require some level of grinding before welding.
Track-mounted tractors bridge the gap between manual labor and full CNC automation. These small, motorized carriages run on extruded aluminum tracks placed directly on the steel plate. They provide semi-automated straight-line cutting, circle cutting, and weld-prep beveling.
These systems drastically reduce secondary grinding and fit-up time. Because the tractor maintains a perfectly constant travel speed and standoff distance, the resulting cut is incredibly smooth. The kerf lines are uniform, and dross is minimal. You can set the torch at a precise angle to cut perfect bevels for full-penetration welds.
Multi-torch gantry systems offer high-volume scalability. These machines span large water tables or downdraft tables. They allow for nesting complex shapes and processing multiple thick plates simultaneously. A single operator can run four or more torches at once, multiplying throughput.
Evaluating capacitive height control and automated consoles ensures consistent quality. Capacitive height control automatically adjusts the torch height to compensate for warped plates. Automated gas consoles allow the CNC controller to adjust preheat and cutting oxygen pressures on the fly, minimizing operator intervention during long production runs.
Factoring in the replacement frequency of tips and O-rings is essential for maintaining cut quality. Cheap consumables often result in poor gas optimization. The internal machining on low-quality tips is often rough, causing turbulence in the oxygen stream. This turbulence widens the kerf and reduces cutting speed. Frequent replacements increase downtime and frustrate operators.
Evaluating gas supply logistics depends heavily on monthly consumption rates. If your shop empties multiple high-pressure cylinders per week, the labor spent swapping tanks and the gas wasted in the "empty" cylinders adds up. Transitioning to liquid cylinder manifolds or bulk installations provides a continuous supply and stabilizes line pressure.
The hidden cost of poorly trained operators is massive. Untrained operators often use excessive oxygen pressure, thinking it will cut faster. Instead, excessive pressure cools the slag, causes bell-mouthing of the kerf, accelerates tip degradation, and creates excessive slag accumulation on the bottom edge. Proper training on flame setting and pressure charts is mandatory.
In heavy steel fabrication, investing in high-quality, application-specific equipment yields immediate returns in cut quality and safety. Base your equipment selection primarily on the maximum steel thickness you process, the volume required, and the most effective fuel gas available in your region.
Conduct a thorough audit of your current gas consumption and cylinder changeout frequency to determine if a manifold system is justified.
Assess the physical condition of your existing regulators, hoses, and flashback arrestors, replacing any components that fail leak tests or show signs of dry rot.
Request on-site vendor demonstrations for mechanized tractors to evaluate the reduction in secondary grinding time on your specific plate thicknesses.
Standardize your tip selection charts across the shop floor to prevent operators from guessing pressures and wasting oxygen.
A: Oxy-fuel processes can effectively sever carbon steel up to 300mm thick. In specialized heavy-duty applications with custom equipment, it can cut even thicker. It remains the most viable and reliable method for materials exceeding 50mm.
A: Consult the manufacturer's sizing chart specific to your torch model. The orifice size must correspond directly to the thickness of the steel being processed. This ensures proper oxygen jet velocity, prevents gas waste, and maintains a clean kerf.
A: Injector models use the high-pressure oxygen stream to draw in low-pressure fuel gases via a venturi effect. Equal-pressure models require both the oxygen and fuel gas to enter the mixing chamber at roughly the same pressure.
A: The handle itself may be compatible, but you must change the tip to a two-piece design specifically meant for propane. You must also ensure you are using Grade T hoses, as propane will degrade standard Grade R or RM hoses.
A: Excessive dross is typically caused by incorrect travel speed. Moving too slow or too fast disrupts the slag flow. It can also be caused by insufficient preheat or using too much oxygen pressure, which cools the slag before it clears the kerf.
A: Flashback arrestors should be tested annually by a qualified technician. They check to ensure the internal check valves and flame barriers function correctly. Replace them immediately if they fail testing or if they sustain a severe flashback event.
A: Upgrade when you require consistent, long straight cuts, or precise bevels for weld preparation. It is also time to upgrade when the volume of repetitive work causes manual cutting and subsequent grinding to become a bottleneck in your production schedule.
