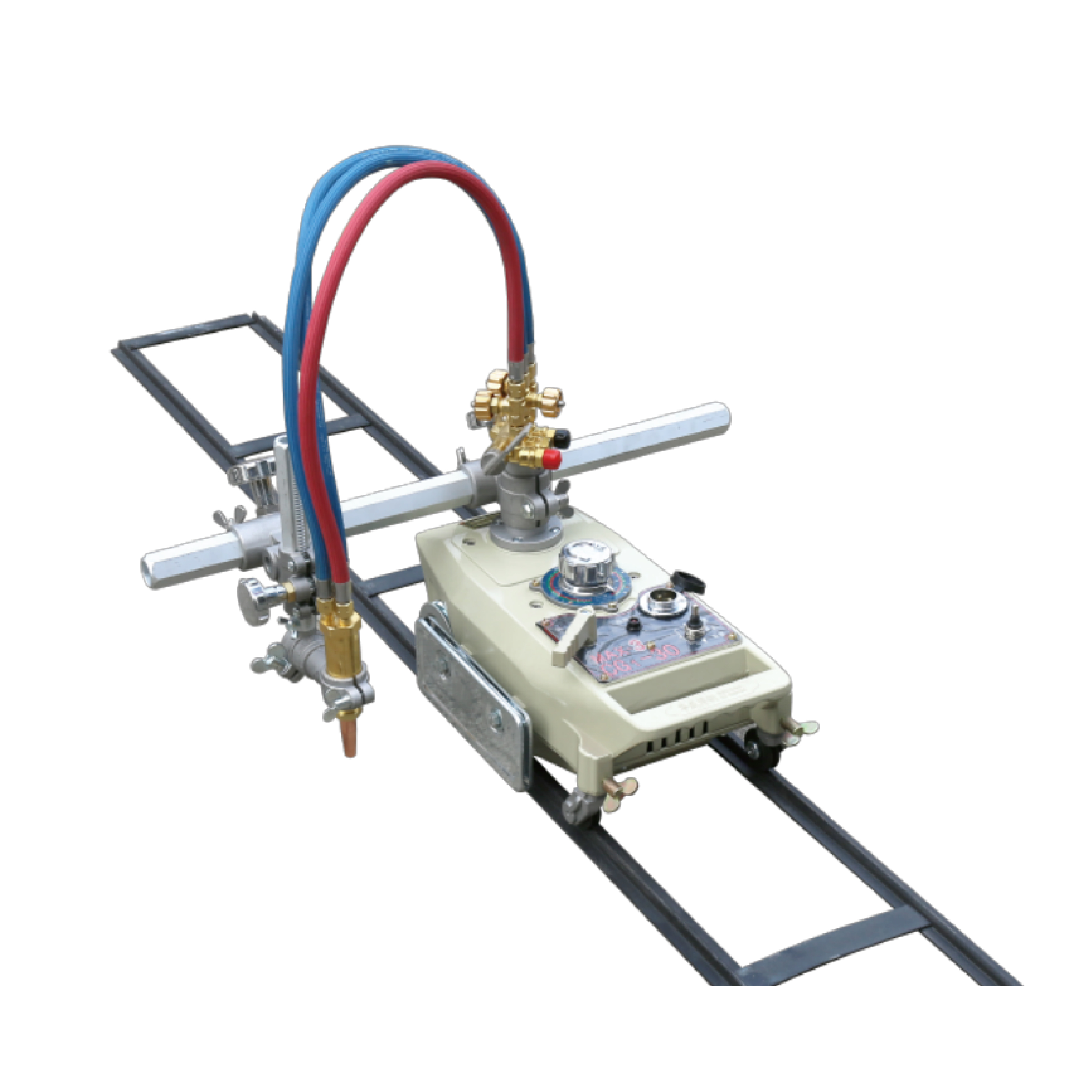

CG1-30·MAX-3 Gas Cutter
● The speed control system of the device adopts a mechanical two-cone stepless speed change system to control the speed more intuitively.
● The device adopts a double-layer insulation board, which substantially reduces the impact of high temperature and moist environment in cutting.
● The machine adopts an imported alternator with cooling fan, in which the carbon brush need not be changed.
● The device is extremely appropriate for cutting moderately thick materials, and two cutting torches maybe installed in the same time as needed to cut a groove;
● The user may also selectively purchase disk guide rail and radius rod to cut round spare parts.
● The device is applicable to shipbuilding, petroleum, metallurgy, and metal structure etc.
| Model | LxWxH (mm) | Supply Voltage V/HZ | Cutting Thickness (mm) | Cutting Speed (mm/min) | Dia.of Circle Cutting (mm) | Total Weight (kg) |
| CG1-30·MAX-3 | 430×230×215 | AC220/50 | 6-50 | 80-800 | φ390-φ640 | 12 |
