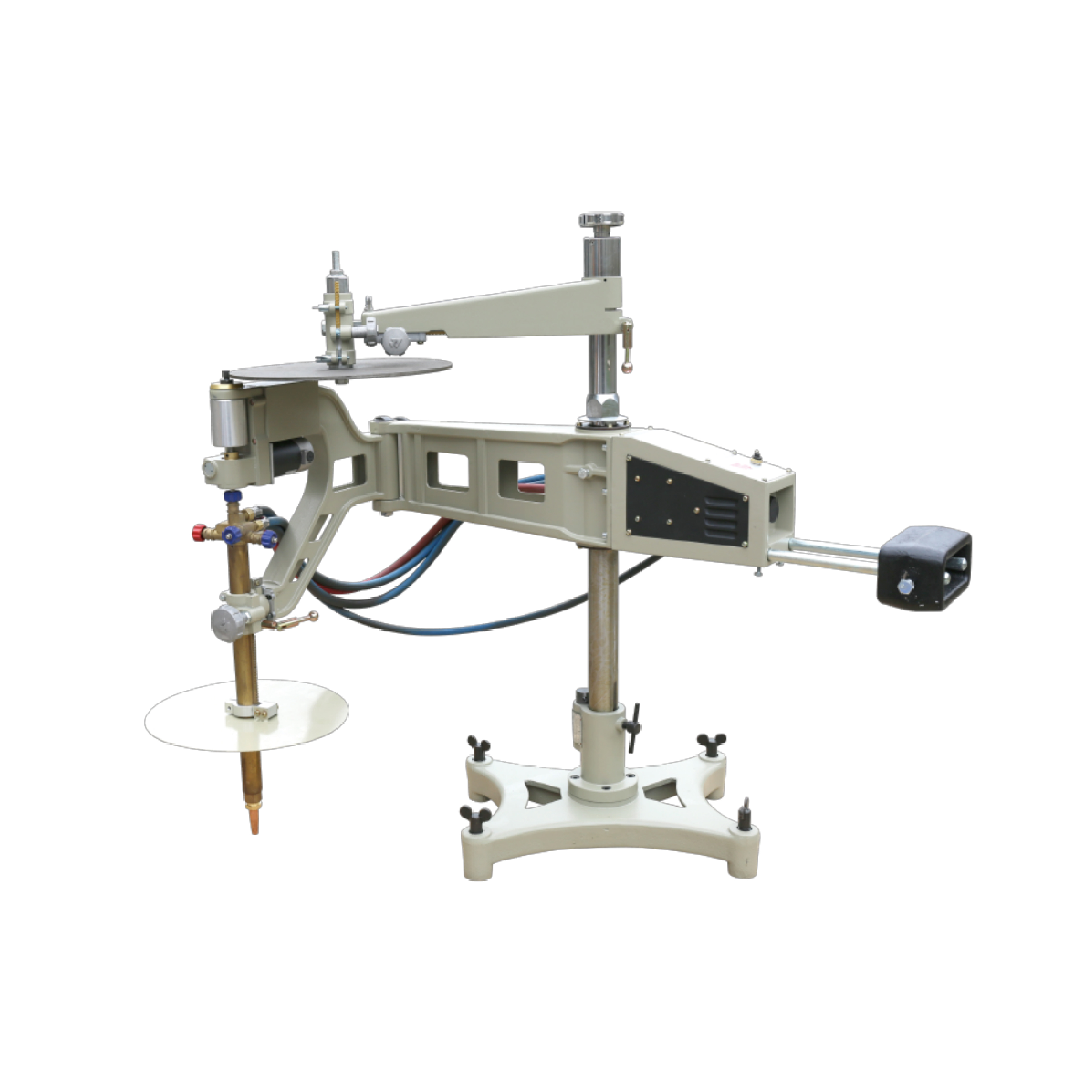

CG2-150D Heavy Thickness
Profiling Gas Cutter
● Speed adjusted by integrate circuit to ensure move steadily.
● Longer shaft and torch can allow the machine far from the heatingsource, to avoid distortion of the main body.
● The torch has heat insulator, which can protect the main body and electric parts.
● Although this machine is used for big thickness steel plate, but also can used for cutting of general steel plate.
| Model | LxWxH (mm) | Supply Voltage (V/HZ) | Cutting Thickness(mm) | Cutting Speed (mm/min) | Dia.of Circle Cutting(mm) | Length of Line Cutting (mm) | Max.size of Cutting Square (mm) | Max.size of Cutting Rectangle (mm) | Total Weight(kg) |
| CG2-150D | 1190×335×1000 | AC200/50 | 8-200 | 50-750 | φ20-φ600 | 1200 | 500×500 | 400×900 450×750 | 58.5 |
