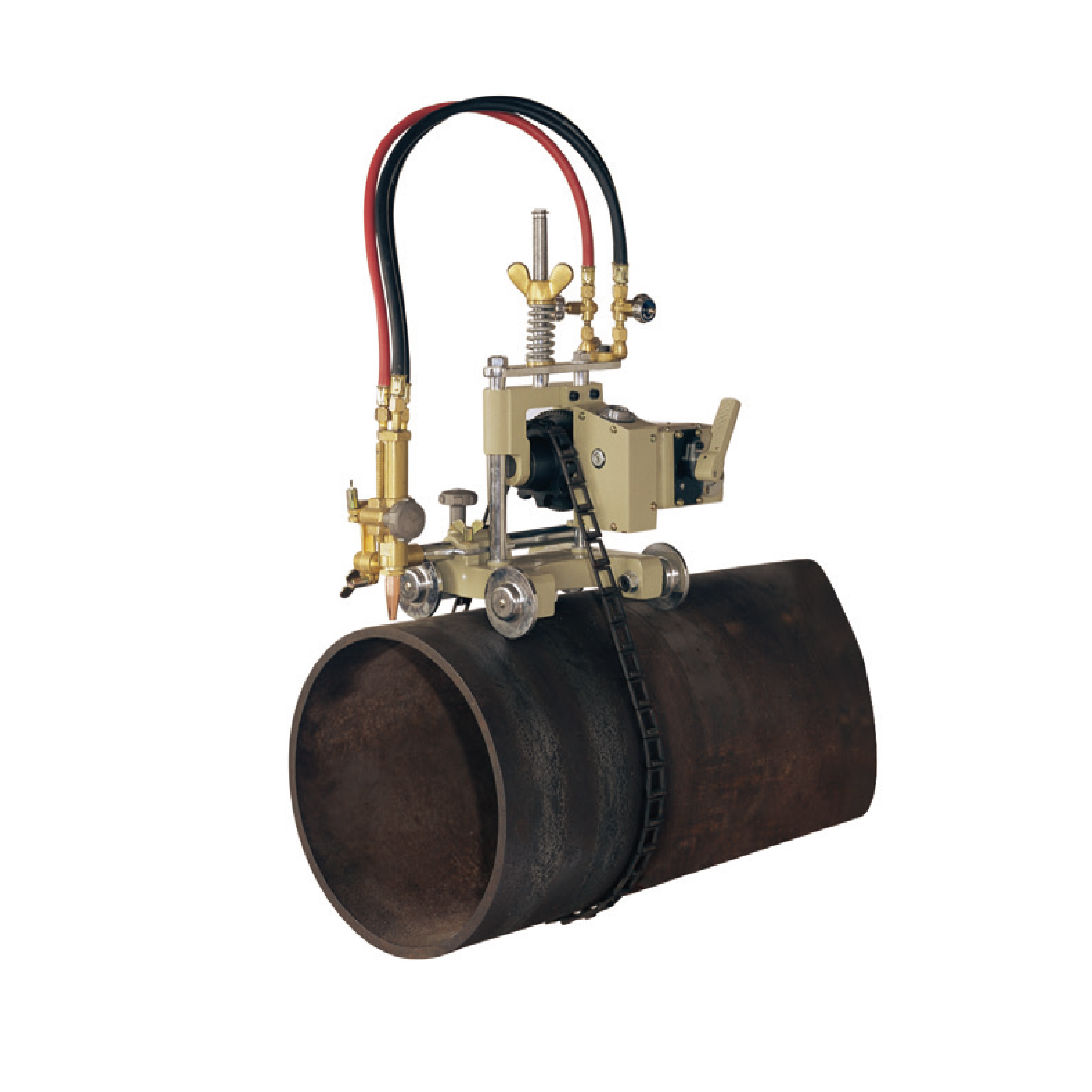

CG2-11D Automatic Pipe
Gas Cutter
● The main body is made of aluminum alloy, light and portable.
● lts driven by motor with shift gear.
● lt has high cutting quality and stability of movement.
● Chain belt is used for lock of pipe and cutter, flexible and convenient in operation.
● Chain belt can be added or reduced,adjusted according to diameter of pipe.
● Applied to oil and chemical engineering project.
● Bevel angle: I.Y.V(45°).
| Model | LxWxH (mm) | Supply Voltage V/HZ | Cutting Thickness (mm) | Cutting Speed (mm/min) | Dia.of Circle Cutting (mm) | Total Weight (kg) |
| CG2-11D | 265x420x450 | AC220/50 | 6-50 | 5-1150 | φ150-φ600 | 16 |
