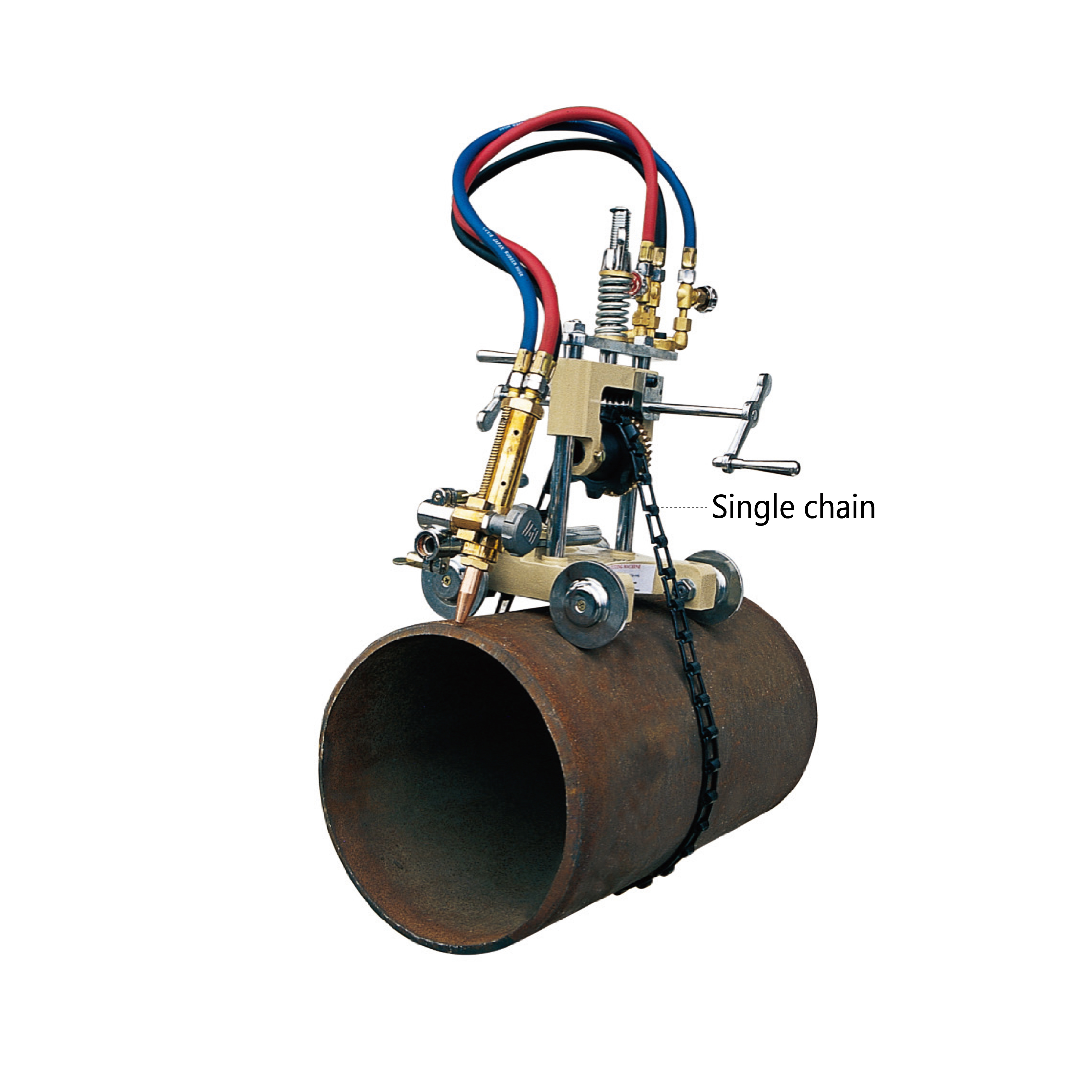

CG2-11G Manual Pipe Cutter
● The main body is made of aluminum alloy, light and portable.
● Chain belt is used for lock of pipe and cutter, flexible and convenientin operation.
● Chain belt can be adjusted according to diameter of pipe.
● Bevel angle:l.Y.V(45°).
● Applied to boiler making, oil production, and chemical factory, etc.
● Especially applied for field work without power supply.
CG2-11G: the attached chain can be used for maximum OD of pipecutting is 600mm.
OD:Outside Diameter
| Model | LxWxH (mm) | Min Dia Pipe (mm) | Cutting Thickness(mm) | Cutting Speed (mm/min) |
| CG2-11G | 420×280×450 | φ150 | 6-50 | hand-control |
