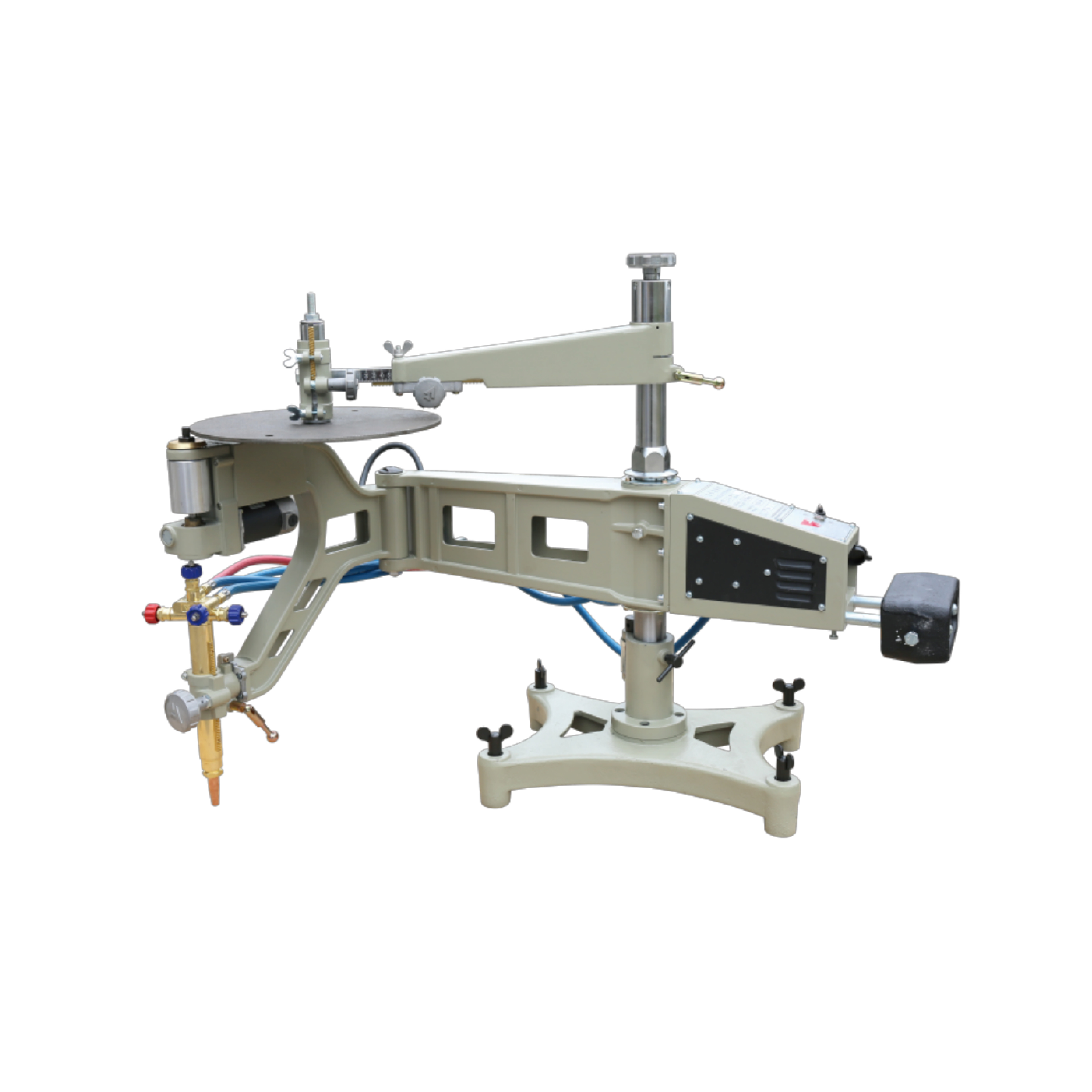

CG2-150 Profiling Gas Cutter
● The main body is made of aluminum by die-casting minutely.
● Speed system is adjusted by integrated circuit, to ensure running steadily.
● Oxygen acetylene hoses are made of high quality rubber .
● Various kinds of spare parts can be cutted followed patterns.
● High precision in cutting with well smooth surface.
● Especially for batch producing of components in same pattern.
● Applied to shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.
● Suitable for field work.
| Model | LxWxH (mm) | Supply Voltage(V/HZ) | Cutting Thickness(mm) | Cutting Speed (mm/min) | Dia.of Circle Cutting(mm) | Length of Line Cutting (mm) | Max.size of Cutting Square (mm) | Max.size of Cutting Rectangle (mm) | Total Weight(kg) |
| CG2-150 | 1190×335×800 | AC200/50 | 6-100 | 50-750 | φ20-φ600 | 1200 | 500×500 | 400×900 450×750 | 56.5 |
