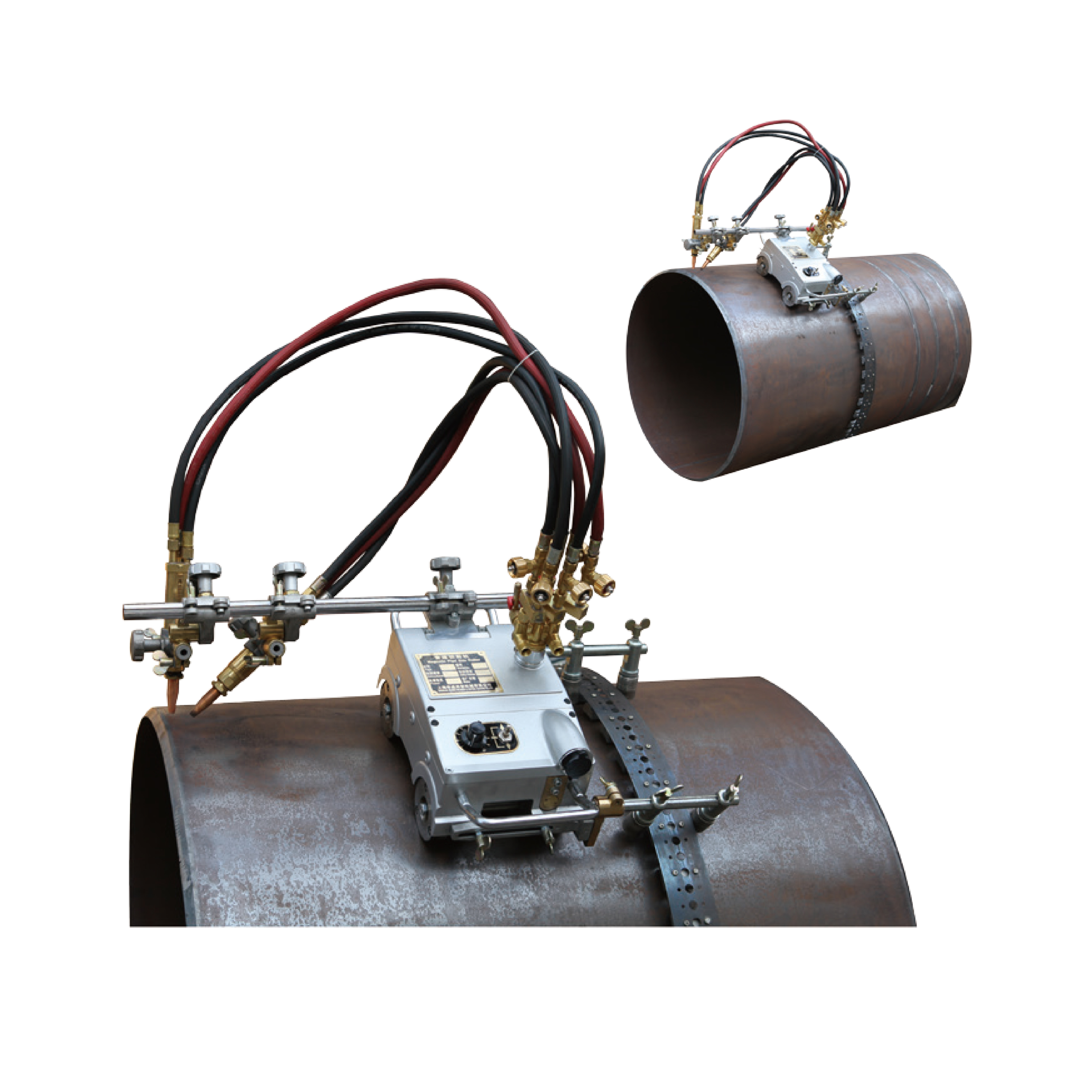

CG2-11-II Magnetic Pipe Gas Cutter
● The main body is made of aluminum alloy, light and portable.
● lt adopts permanent magnet wheel to crawl on pipe while cutting.
● Can be used for parallel,upright and face upward cutting.
● Especially for pipe cutting,convenient in operation.
● Double torches cutting, beveling range: l.Y.V (45°)
● Widely applied to oil production,chemical pipe project.
| Model | LxWxH (mm) | Supply Voltage V/HZ | Dia.of Circle Cutting (mm) | Cutting Thickness (mm) | Cutting Speed (mm/min) | Magnetic Adsorbability (Kg) | Total Weight (kg) |
CG2-11-II (Two torch) | 450x230x210 | AC220/50 | >φ110 | 6-50 | 50-750 | >50 | 20.5 |
