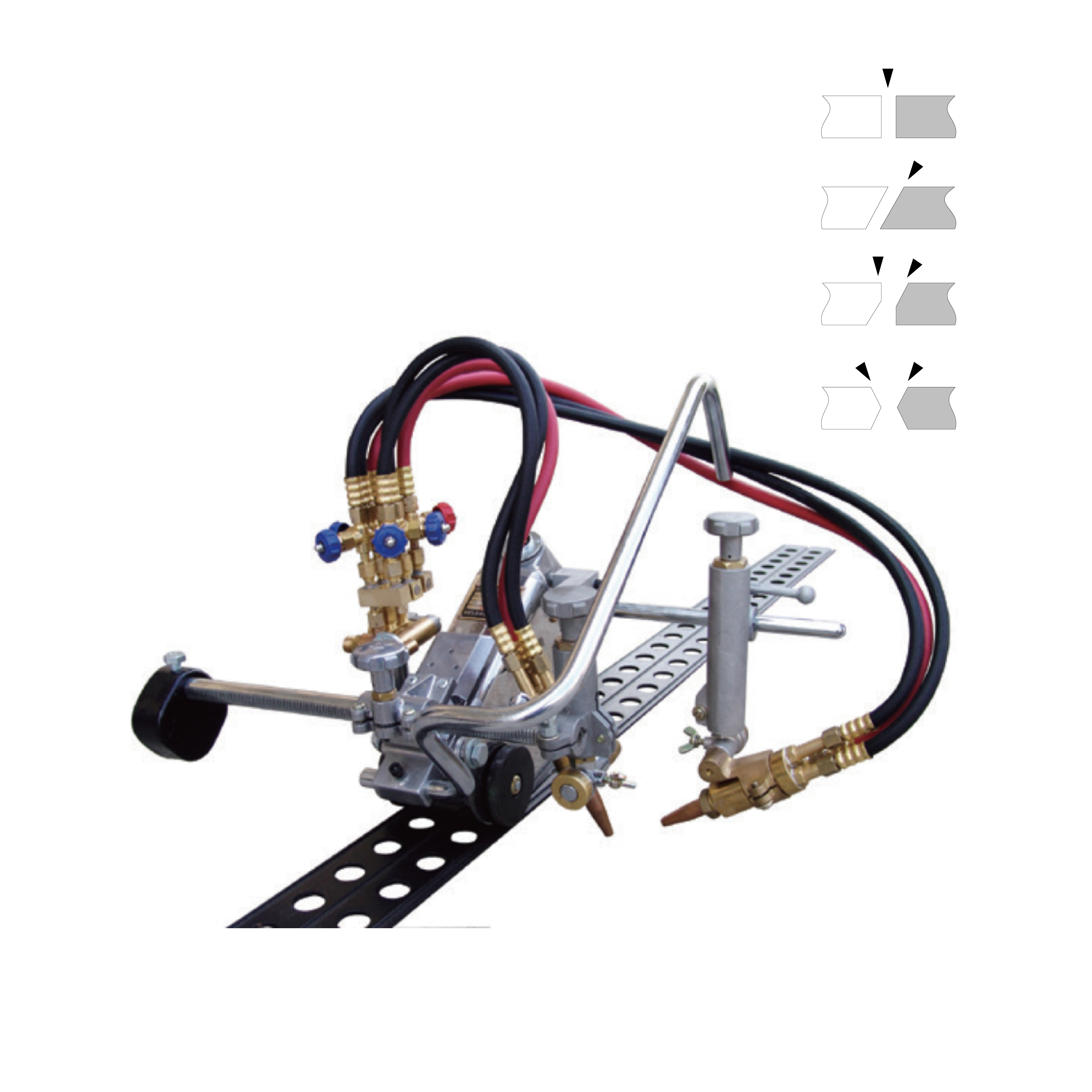

HK-93-II Head-face Profiling Cutting Machine
● This machine has two sets of torches that can bevel X-shape at the end of the plate (both sides) at the same time, form in a single pass.
● The machine is with swiftness of motion and flexibility of operation.
● This machine is equipped with gas pre-set switch so as to avoid readjusting when cutting
● At the bottom and two sides of machine is equipped with the thermal baffle so as to prevent the machine from the heating radiation.This consequently provides the stable walking and high quality in beveling X-shape.
Beveling angle: 0°-45° Bevel width: 50mm
| Model | LxWxH (mm) | Supply Voltage V/HZ | Cutting Thickness (mm) | Cutting Speed (mm/min) | Dia.of Circle Cutting (mm) | Total Weight (kg) |
| HK-93-II | 465×400×365 | AC220/50 | 6-30 | 100-1000 | / | 16.5 |
