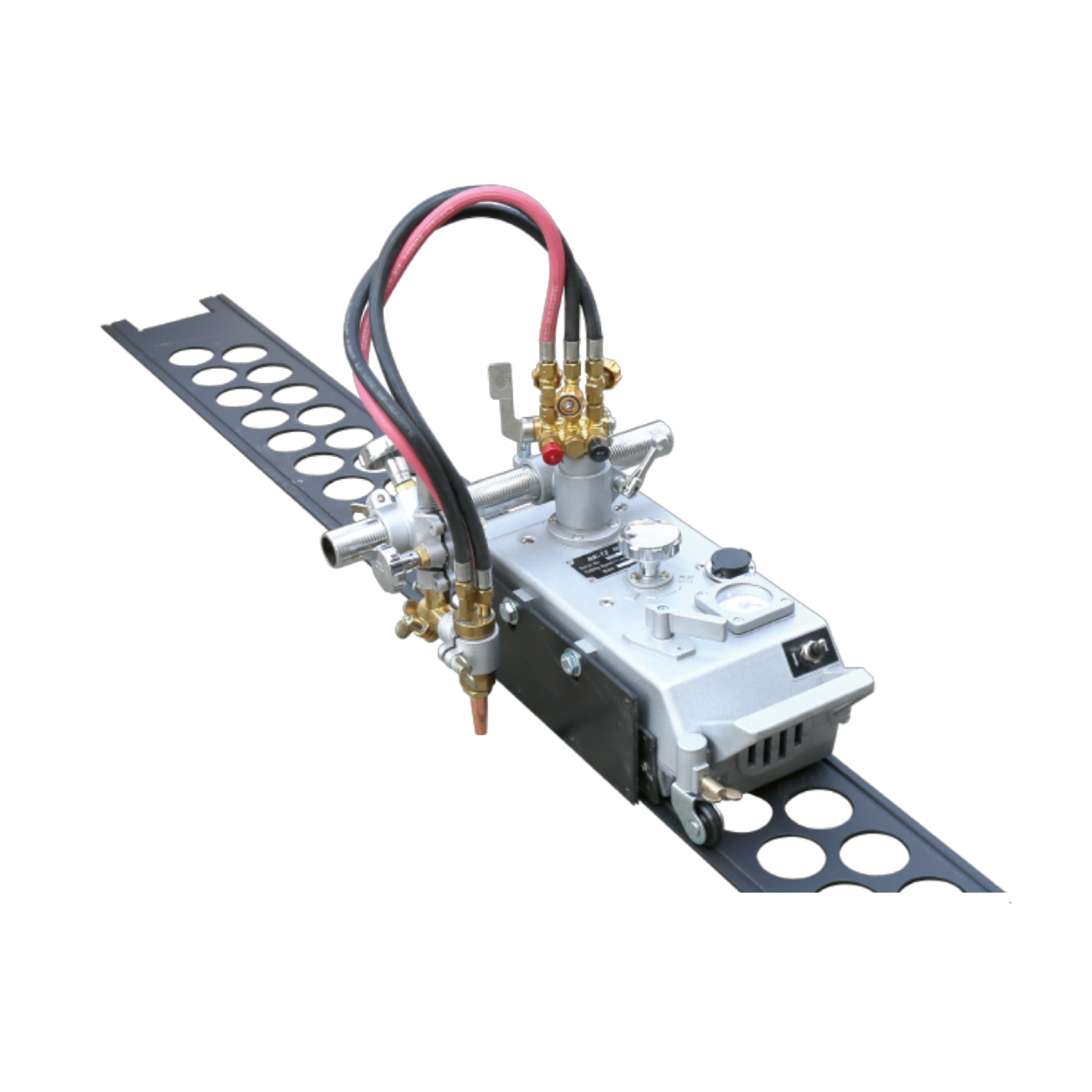

HK-12MAX-1 Portable Flame Cutting Machine
● The main body is made of aluminum of high strength by diecasting.
● It's light weight and compact structure to ensure the machine becomes ideal portable machine.
● Speed system adopts mechanical adjustment which can keeps running continuously under high temperature.
● Advanced motor with fan for cooling.
● Circular rail can be equipped as required for circular piece cutting.
● Beveling range: I.Y.V(45).
● Applied to shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.
| Model | LxWxH (mm) | Supply Voltage V/HZ | Cutting Thickness (mm) | Cutting Speed (mm/min) | Dia.of Circle Cutting (mm) | Total Weight (kg) |
| HK-12MAX-I | 600×175×228 | AC 220/50 | 6-100 | 150-800 | φ390-φ640 | 15 |
