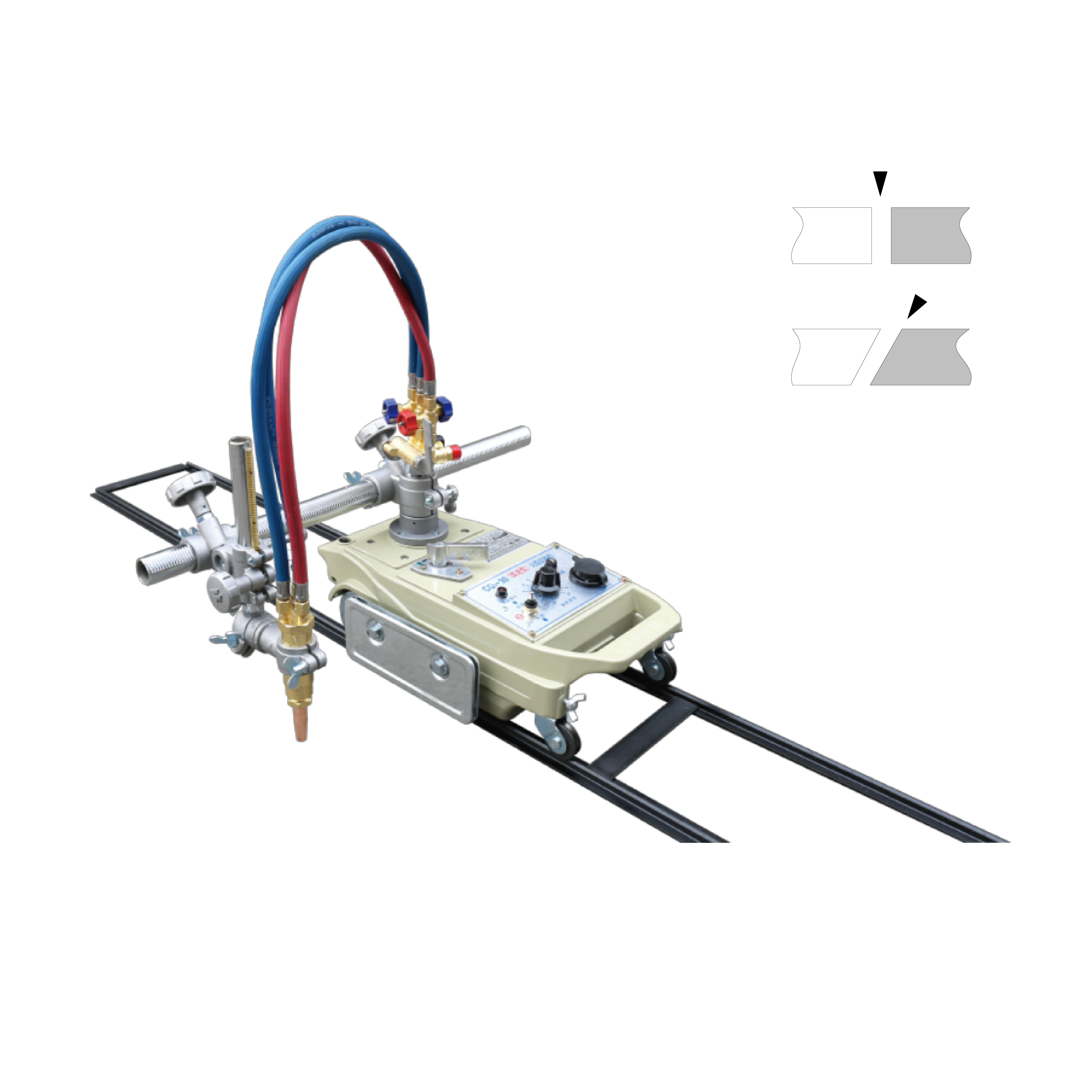

CG1-30 Gas Cutter
(lmproved)
● The main body is made of aluminum of high strength by diecasting minutely
● Speed system is adjusted by controlled silicon
● Attached quick connector for hose quick link
● Quick switch is attached in pipe assembly for higher efficiency
● Single torch cutting, beveling range: I.V(45°)
● Double torches cutting, beveling range: I.Y.V(45°)
● Applied in shipbuilding, oil production, metallurgy, metal structure and other manufacturers etc.
| Model | LxWxH (mm) | Supply Voltage V/HZ | Cutting Thickness (mm) | Cutting Speed (mm/min) | Dia.of Circle Cutting (mm) | Total Weight (kg) |
CG1-30 (Improved) | 470x230x240 | AC220/50 | 6-100 | 50-750 | φ200-φ2000 | 16 |
