Single stage | Flowmeter Regulators
CAPACITY : Medium Duty
NET WEIGHT : 0.849 kg / each
OUTLET PRESSURE : 3.5 Bar (Preset)

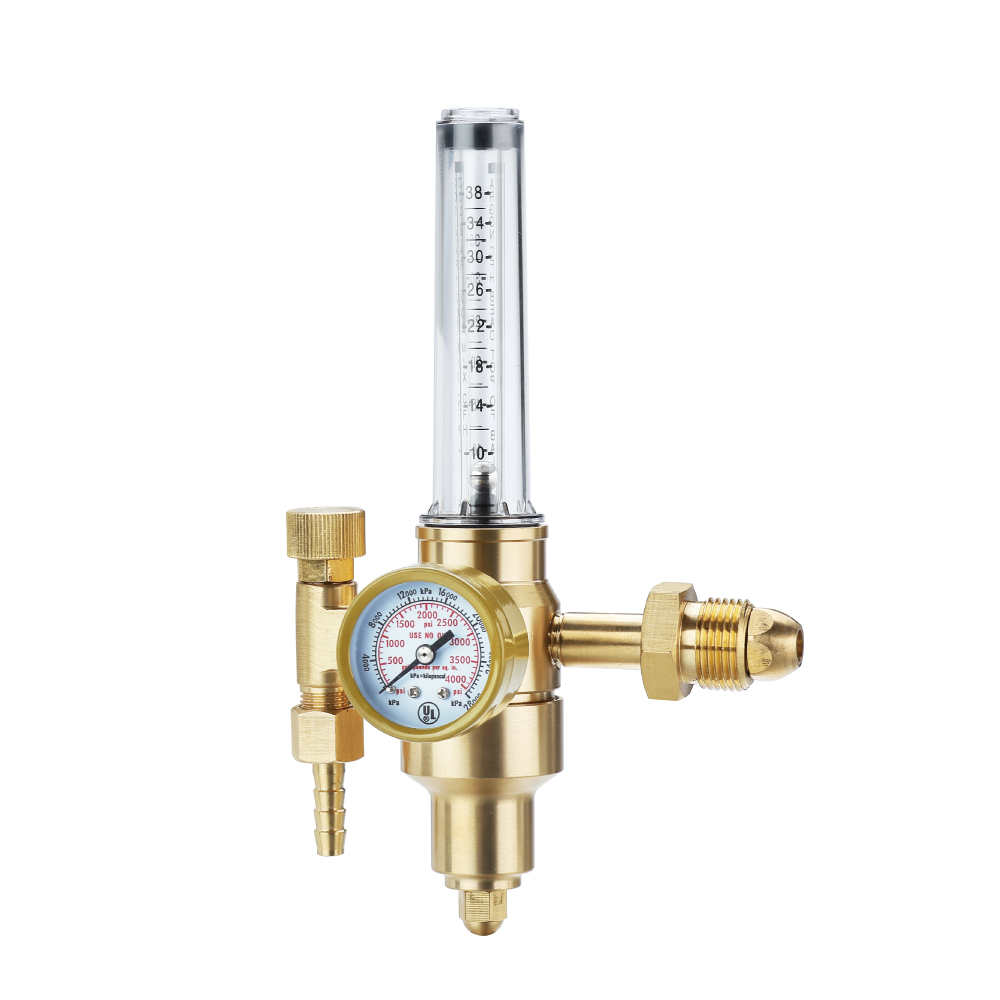

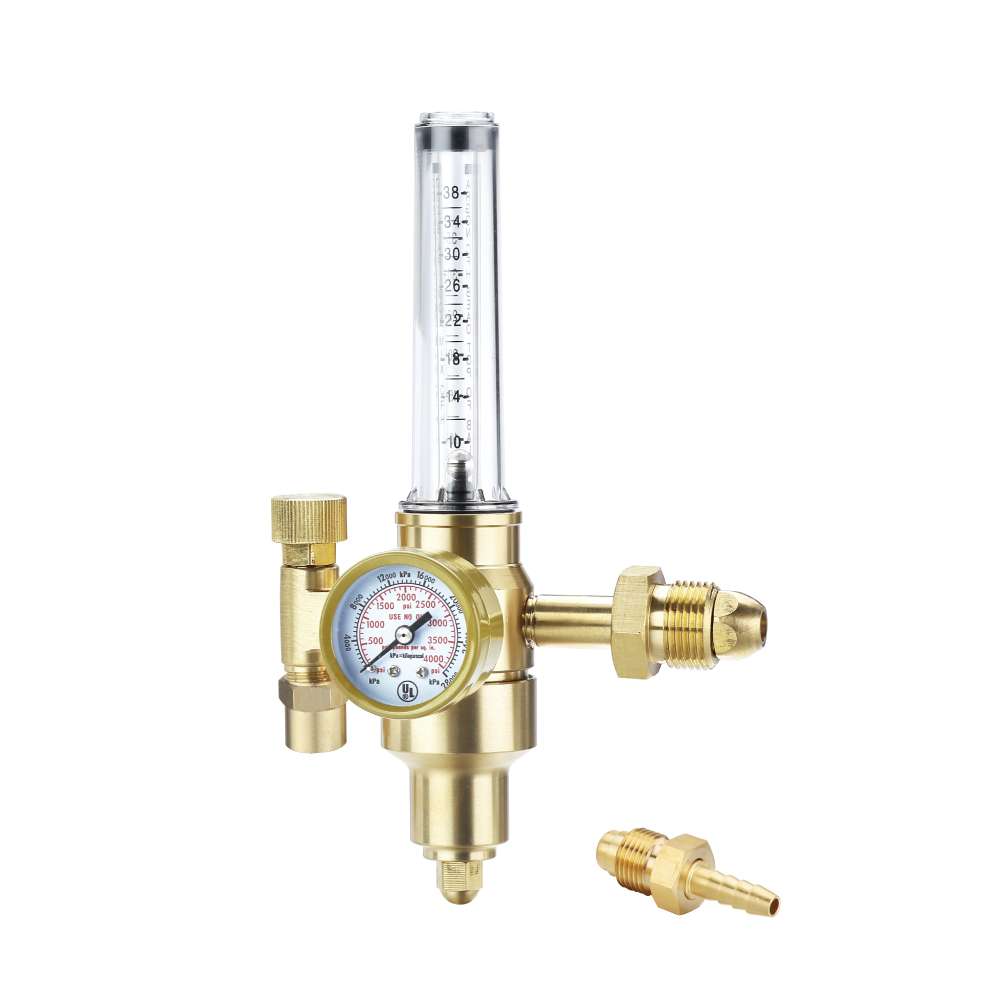

FL2400
STAREX
| MODEL: | |
|---|---|
| Quantity: | |
FEATURES:
MIG/TIG applications
Single stage construction
Machined brass body
Neoprene diaphragms
Sintered metal inlet filter to trap impurities
Accurate gas flow regulator Safety relief valve is set for all gases
No soldered joints, for easy maintenance
Combination of regulator and flowmeter in one unit
Side entry
Economy style
Option kit available with 10 feet (3m) hose in clamshell packaging
| Model | Gas | Flow Range | Max. Working Pressure(Bar) | 10 Feet Hose |
| FL2400A-AR | Argon | 10-50(SCFH) | 315 | W/O |
| FL2400A-CD | Co2 | 10-38(SCFH) | 315 | W/O |
| FL2400B-AR | Argon | 10-50(SCFH) | 315 | W/O |
| FL2400B-CD | Co2 | 10-38(SCFH) | 315 | W/O |
OUTLET PRESSURE : 3.5 Bar (Preset)
FEATURES:
MIG/TIG applications
Single stage construction
Machined brass body
Neoprene diaphragms
Sintered metal inlet filter to trap impurities
Accurate gas flow regulator Safety relief valve is set for all gases
No soldered joints, for easy maintenance
Combination of regulator and flowmeter in one unit
Side entry
Economy style
Option kit available with 10 feet (3m) hose in clamshell packaging
| Model | Gas | Flow Range | Max. Working Pressure(Bar) | 10 Feet Hose |
| FL2400A-AR | Argon | 10-50(SCFH) | 315 | W/O |
| FL2400A-CD | Co2 | 10-38(SCFH) | 315 | W/O |
| FL2400B-AR | Argon | 10-50(SCFH) | 315 | W/O |
| FL2400B-CD | Co2 | 10-38(SCFH) | 315 | W/O |
OUTLET PRESSURE : 3.5 Bar (Preset)
