CONFORMITY WITH
EN ISO 2503

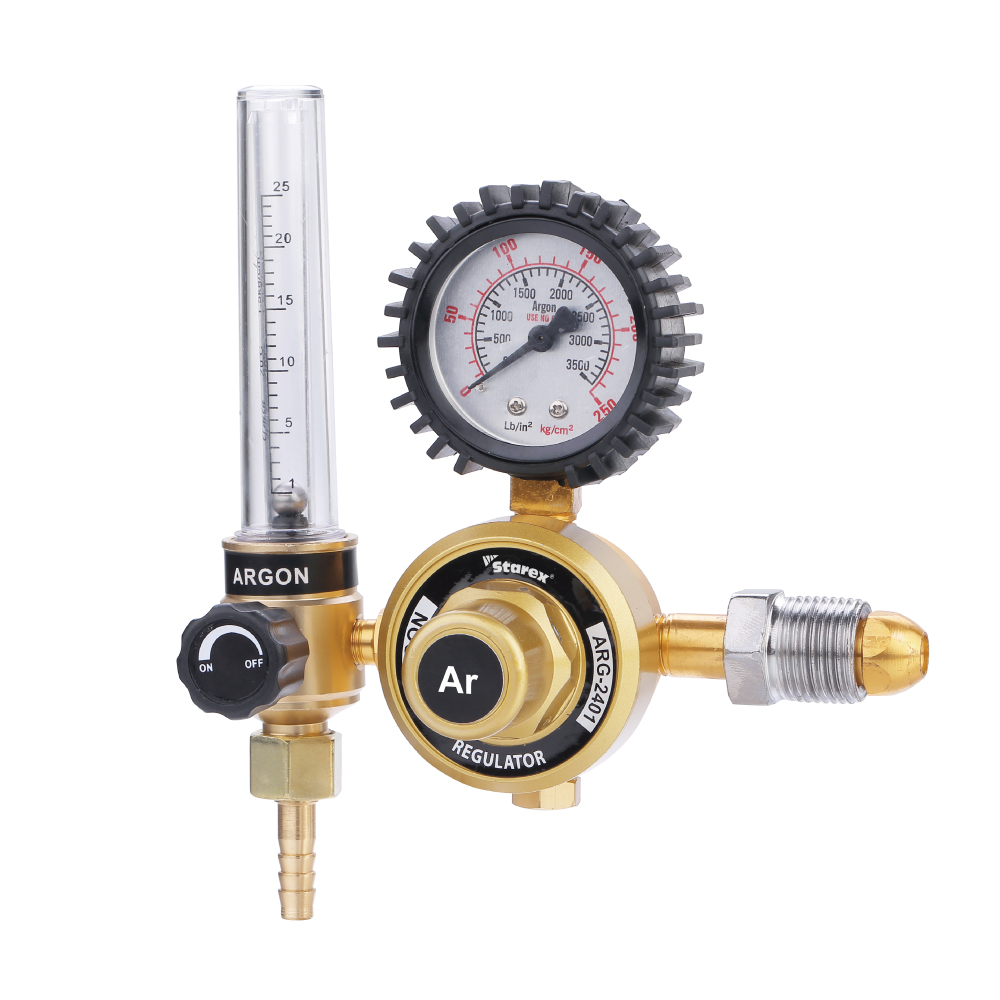

FL1580
STAREX
| MODEL: | |
|---|---|
| Quantity: | |
FEATURES:
*MIG/TIG applications
*Single stage construction
*Machined aluminium body
*Neoprene diaphragms
*Sintered metal inlet filter to trap impurities
*Accurate gas flow regulator
*Safety relief valve is set for all gases
*No soldered joints, for easy maintenance
*Side entry
*Economy style
| Model | Gas | Flow Range | Max. Working Pressure(Bar) | Outlet Pressure(Bar) |
| FL1580-25L-AR | Argon | 25(Lt.min) | 200 | 3.5 |
| FL1580-25L-CD | Co2 | 25(Lt.min) | 200 | 3.5 |
OUTLET PRESSURE : 3.5 Bar (Preset)
FEATURES:
*MIG/TIG applications
*Single stage construction
*Machined aluminium body
*Neoprene diaphragms
*Sintered metal inlet filter to trap impurities
*Accurate gas flow regulator
*Safety relief valve is set for all gases
*No soldered joints, for easy maintenance
*Side entry
*Economy style
| Model | Gas | Flow Range | Max. Working Pressure(Bar) | Outlet Pressure(Bar) |
| FL1580-25L-AR | Argon | 25(Lt.min) | 200 | 3.5 |
| FL1580-25L-CD | Co2 | 25(Lt.min) | 200 | 3.5 |
OUTLET PRESSURE : 3.5 Bar (Preset)
