CAPACITY : Medium Duty
NET WEIGHT : 0.825 kg / each
OUTLET PRESSURE :3.5 Bar (Preset)
CERTIFICATIONS :
Conform with EN ISO 2503

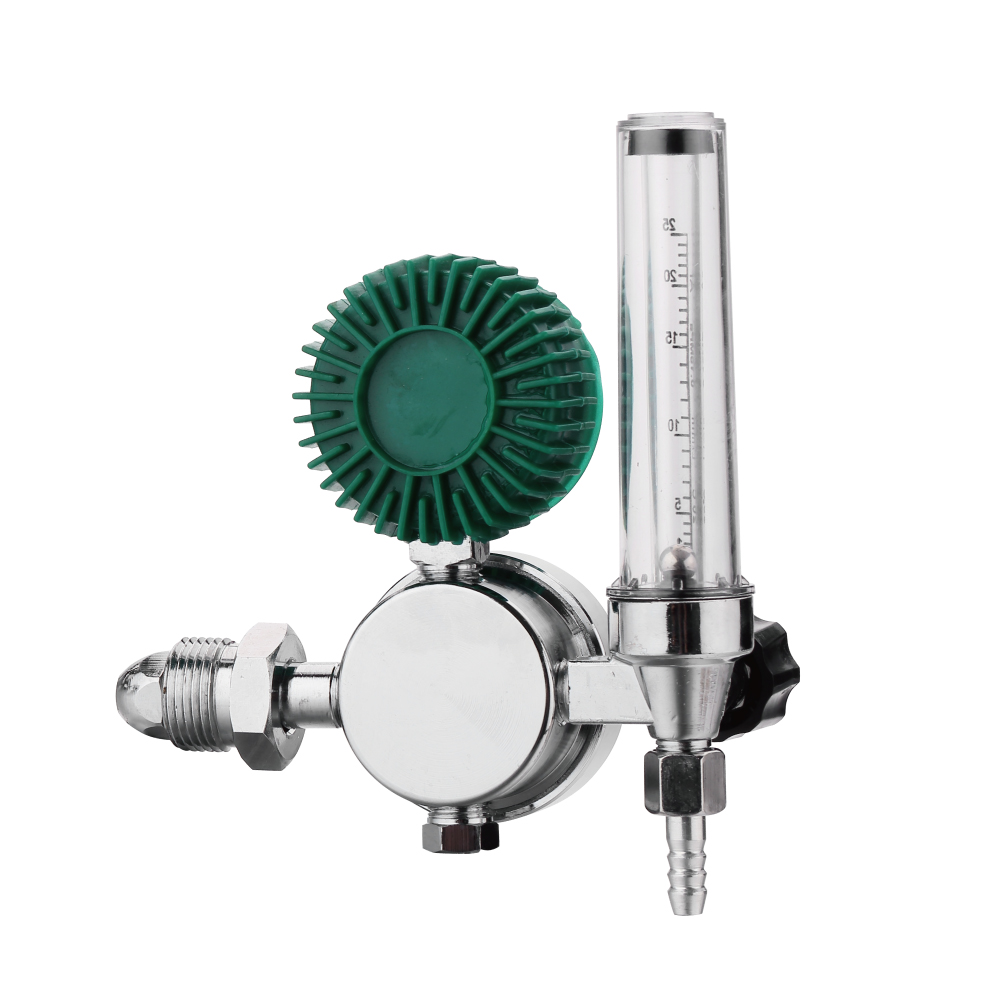

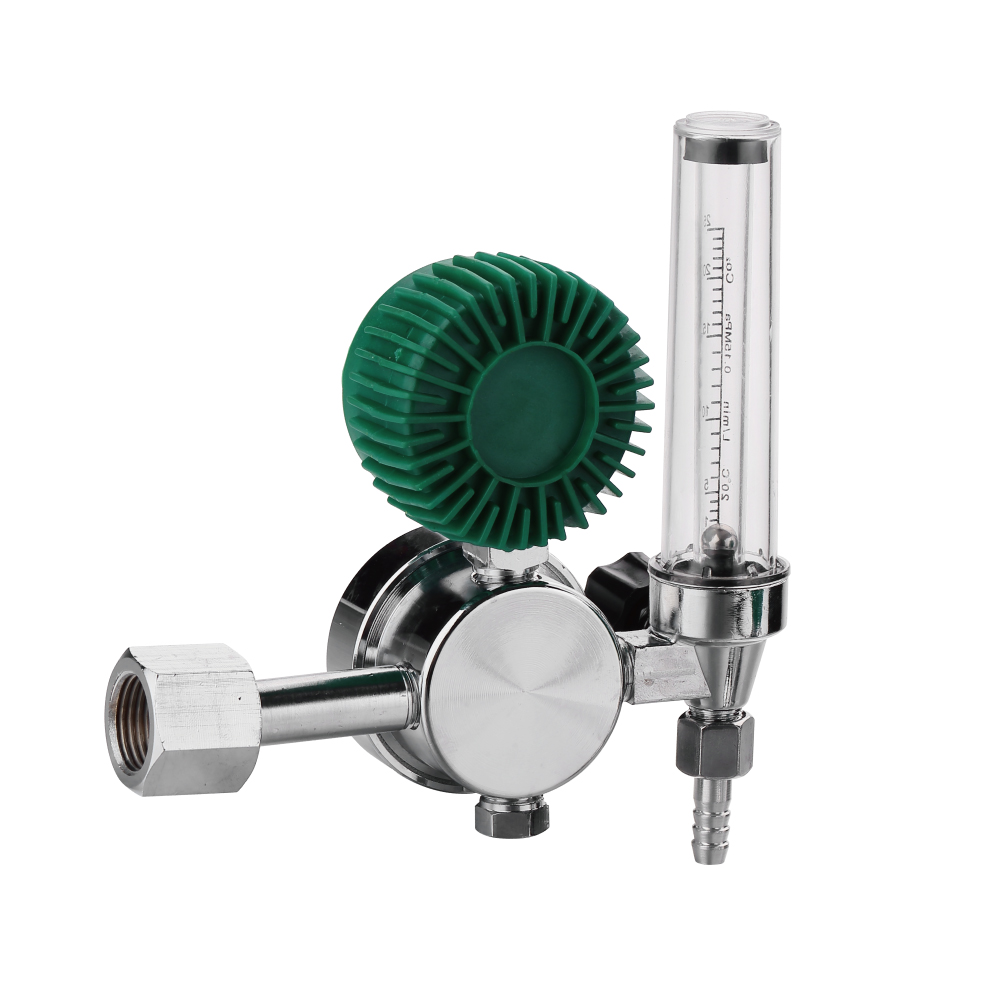

FL1560
STAREX
| MODEL: | |
|---|---|
| Quantity: | |
FEATURES:
MIG/TIG applications
Single stage construction
Machined Aluminium body
Fully chromed iron upper cover
Neoprene diaphragms
Sintered metal inlet filter to trap impurities
Accurate gas flow regulator
Safety relief valve is set for all gases
No soldered joints, for easy maintenance
Side entry
Economy style
| Model | Gas | Flow Range | Max. Working Pressure(Bar) | Outlet Pressure(Bar) |

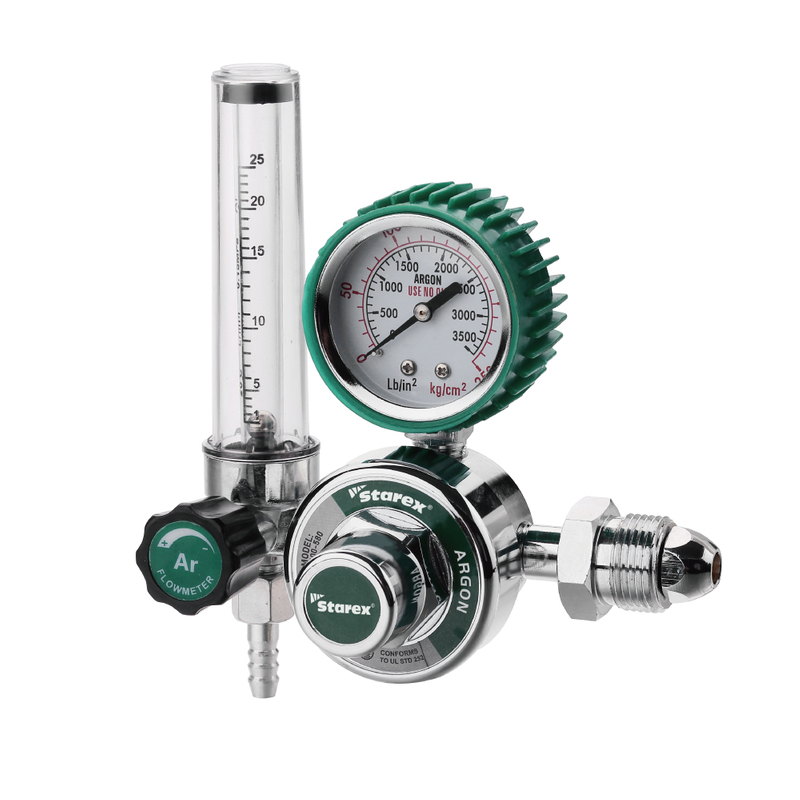

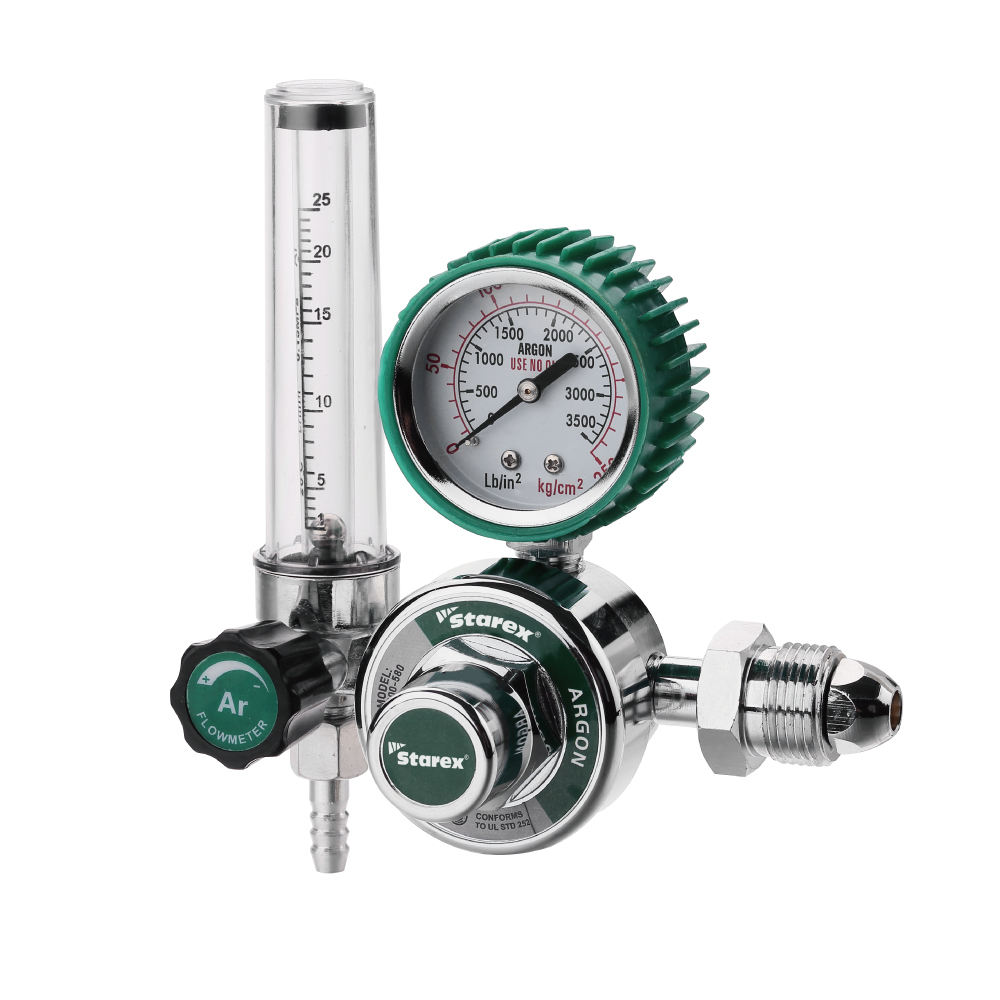

| FL1560-25L-AR | Argon | 25(Lt.min) | 200 | 3.5 |

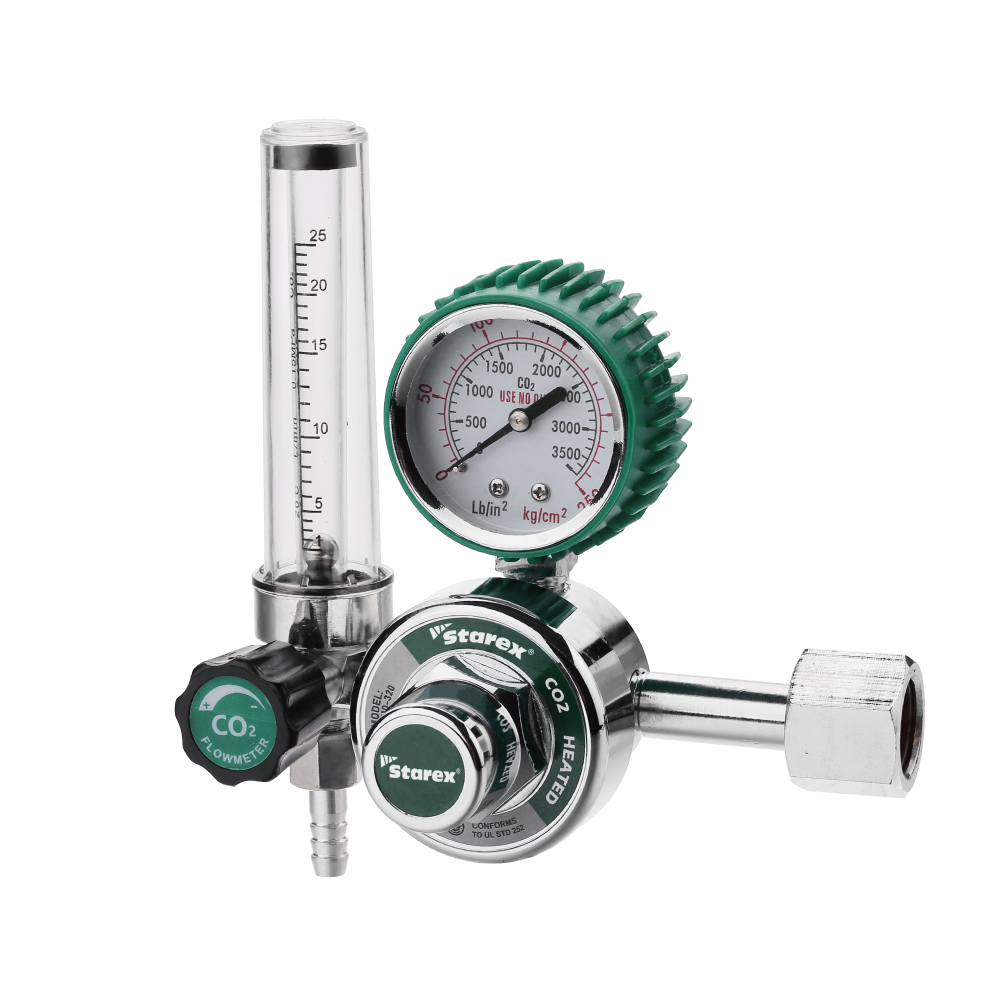

| FL1560-25L-CD | Co2 | 25(Lt.min) | 200 | 3.5 |
OUTLET PRESSURE : 3.5 Bar (Preset)
FEATURES:
MIG/TIG applications
Single stage construction
Machined Aluminium body
Fully chromed iron upper cover
Neoprene diaphragms
Sintered metal inlet filter to trap impurities
Accurate gas flow regulator
Safety relief valve is set for all gases
No soldered joints, for easy maintenance
Side entry
Economy style
| Model | Gas | Flow Range | Max. Working Pressure(Bar) | Outlet Pressure(Bar) |
| FL1560-25L-AR | Argon | 25(Lt.min) | 200 | 3.5 |
| FL1560-25L-CD | Co2 | 25(Lt.min) | 200 | 3.5 |
OUTLET PRESSURE : 3.5 Bar (Preset)
