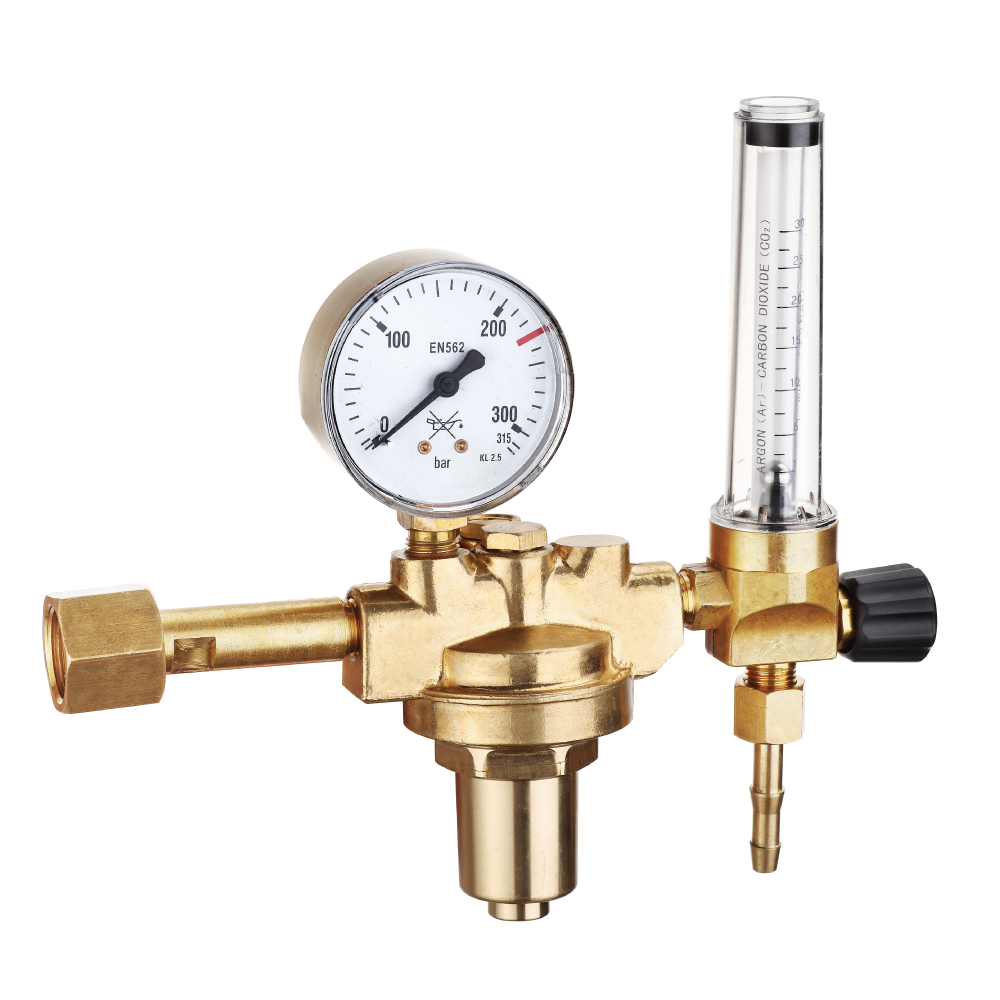

Oxyturbo Style
Single Stage with Flowmeter
CAPACITY : Medium Duty
NET WEIGHT : 1.2kg / each
FL850
STAREX
| MODEL: | |
|---|---|
| Quantity: | |
FEATURES:
MIG/TIG applications
Single stage construction
Forged brass body & bonnet for maximum strength
Neoprene diaphragms
External safety relief valve is set for all gases
Sintered metal inlet filter to trap impurities
No soldered joints, for easy maintenance
Flowmeter with easy-to-read tube and transparent polycarbonate outer cover for impact resistant
Side entry
T screw (Knob adjustment optional)
| Model | Gas | Flow Range | Max. Working Pressure(Bar) |
| FL850-25L-AR | Argon | 25(Lt./min) | 200 |
| FL850-25L-CD | Co2 | 25(Lt./min) | 200 |
| FL850-60S-AR | Argon | 60(SCFH) | 200 |
| FL850-60S-CD | Co2 | 60(SCFH) | 200 |
OUTLET PRESSURE : 3.5 Bar (Preset)
FEATURES:
MIG/TIG applications
Single stage construction
Forged brass body & bonnet for maximum strength
Neoprene diaphragms
External safety relief valve is set for all gases
Sintered metal inlet filter to trap impurities
No soldered joints, for easy maintenance
Flowmeter with easy-to-read tube and transparent polycarbonate outer cover for impact resistant
Side entry
T screw (Knob adjustment optional)
| Model | Gas | Flow Range | Max. Working Pressure(Bar) |
| FL850-25L-AR | Argon | 25(Lt./min) | 200 |
| FL850-25L-CD | Co2 | 25(Lt./min) | 200 |
| FL850-60S-AR | Argon | 60(SCFH) | 200 |
| FL850-60S-CD | Co2 | 60(SCFH) | 200 |
OUTLET PRESSURE : 3.5 Bar (Preset)
