CONFORMITY WITH
EN ISO 2503

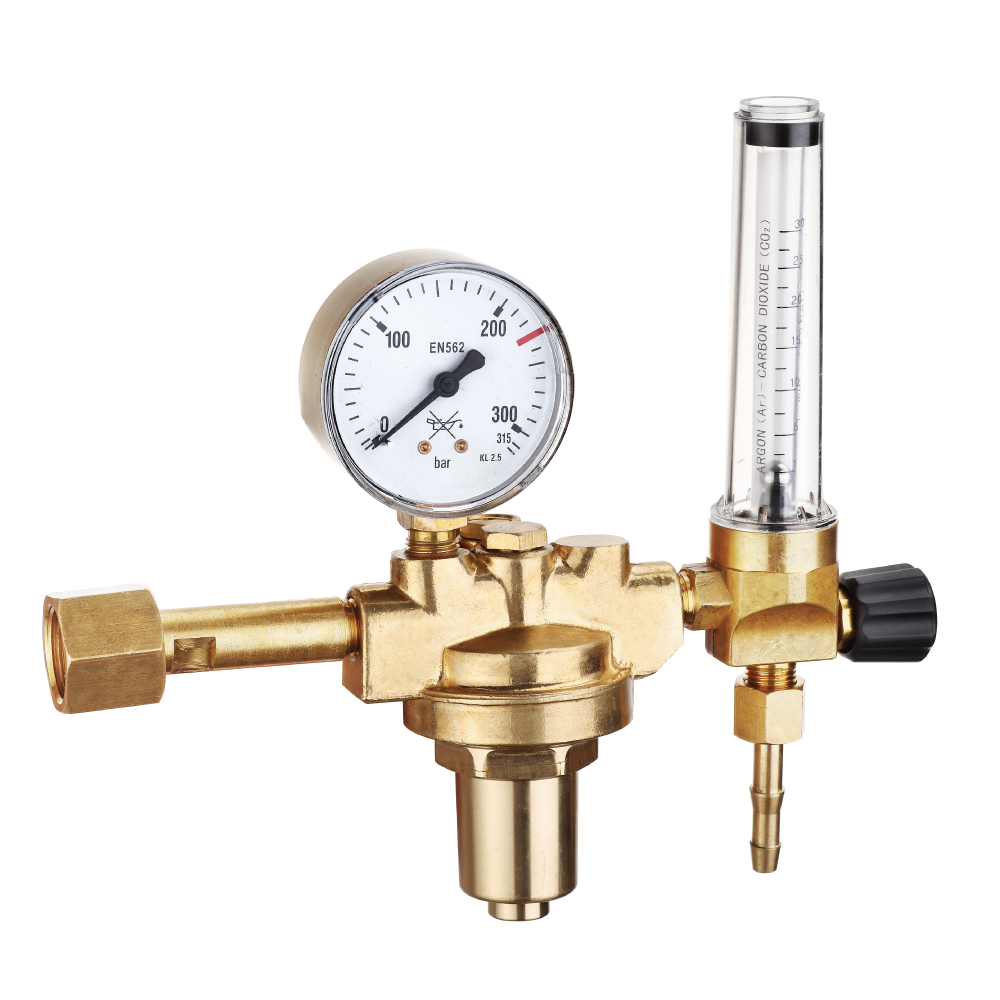

FL850
STAREX
| MODEL: | |
|---|---|
| Quantity: | |
Features:
• Designed for MIG/TIG welding applications
• Single-stage construction for stable gas control
• Forged brass body and bonnet for high strength and durability
• Neoprene diaphragm for reliable performance
• External safety relief valve preset for all gases
• Sintered metal inlet filter to trap impurities and protect internal components
• No soldered joints for easy maintenance and longer service life
• Flowmeter with clear viewing tube and transparent polycarbonate outer cover for impact resistance and easy reading
• Side entry design
| Model | Gas | Flow Range | Max. Working Pressure(Bar) |
| FL850-25L-AR | Argon | 25(Lt./min) | 200 |
| FL850-25L-CD | Co2 | 25(Lt./min) | 200 |
| FL850-60S-AR | Argon | 60(SCFH) | 200 |
| FL850-60S-CD | Co2 | 60(SCFH) | 200 |
OUTLET PRESSURE : 3.5 Bar (Preset)
