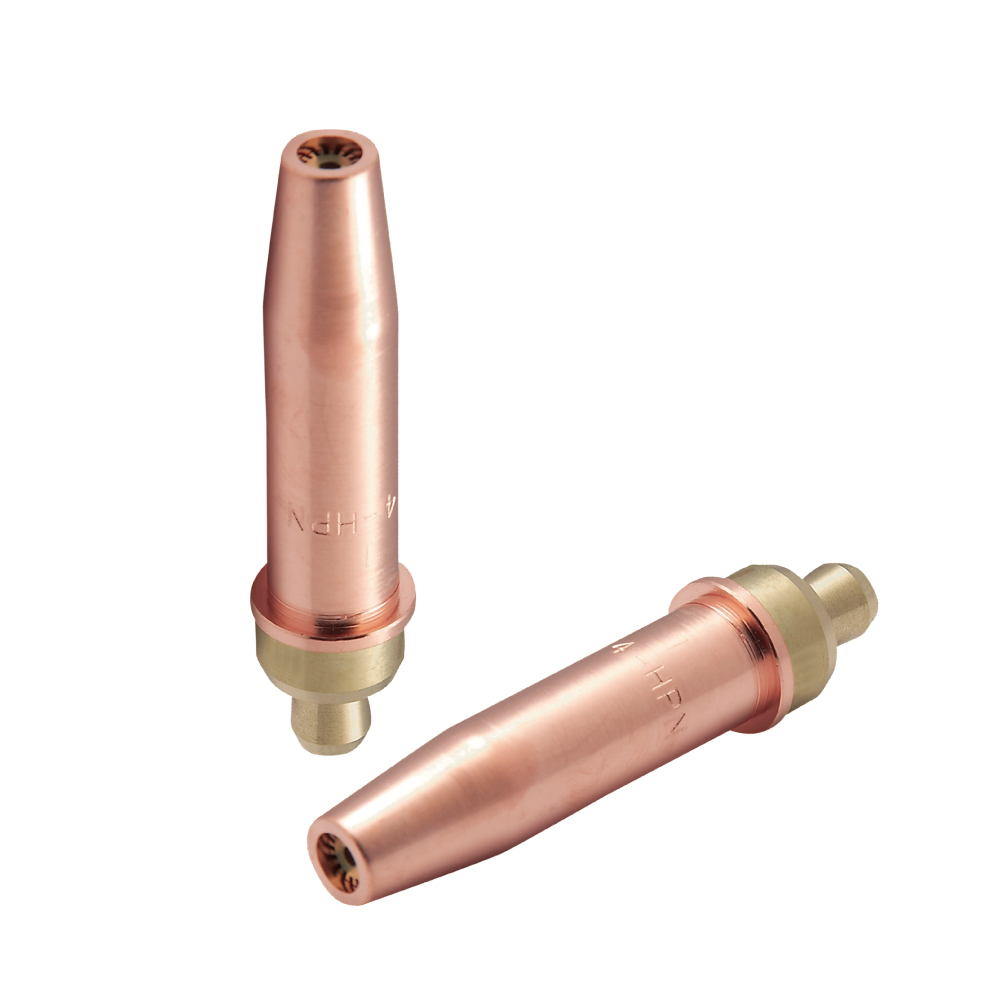

HPN
STAREX
| Quantity: | |
|---|---|
| Tip | Cutting Thickness (mm) | Cutting Oxygen (psig) | Fuel (psig) | Orifice (mm) |
| 1-HPN | 10-20 | 30-35 | 4-6 | 1.2 |
2-HPN | 20-40 | 40-45 | 4-8 | 1.5 |
3-HPN | 40-60 | 40-45 | 5-9 | 1.8 |
4-HPN | 60-80 | 40-50 | 8-12 | 2.1 |
5-HPN | 80-125 | 45-55 | 8-12 | 2.4 |
6-HPN | 125-200 | 45-55 | 10-15 | 2.8 |
7-HPN | 200-250 | 55-65 | 8-12 | 3.2 |
| 8-HPN | 250-300 | 60-70 | 10-14 | 3.6 |
| 10-HPN | 300-380 | 45-55 | 10-16 | 4.2 |
| 12-HPN | 380-450 | 45-55 | 10-16 | 5.0 |
