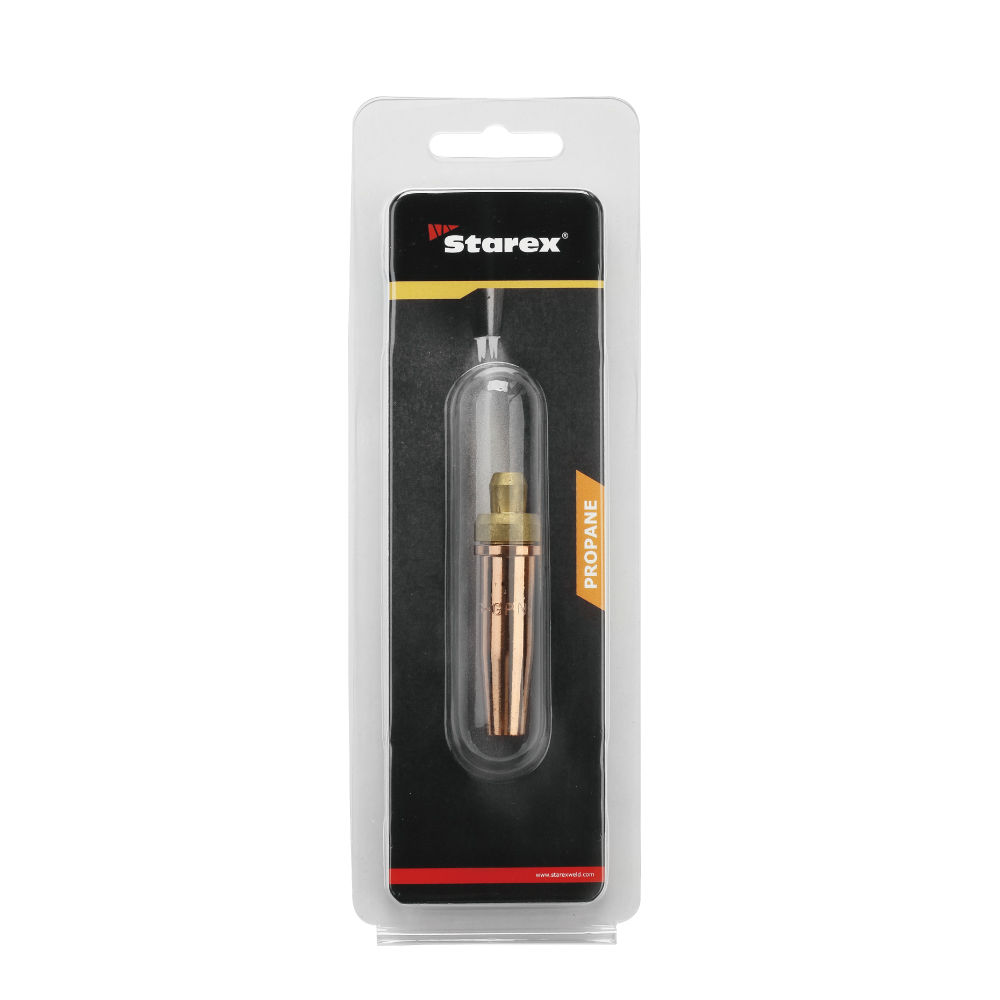

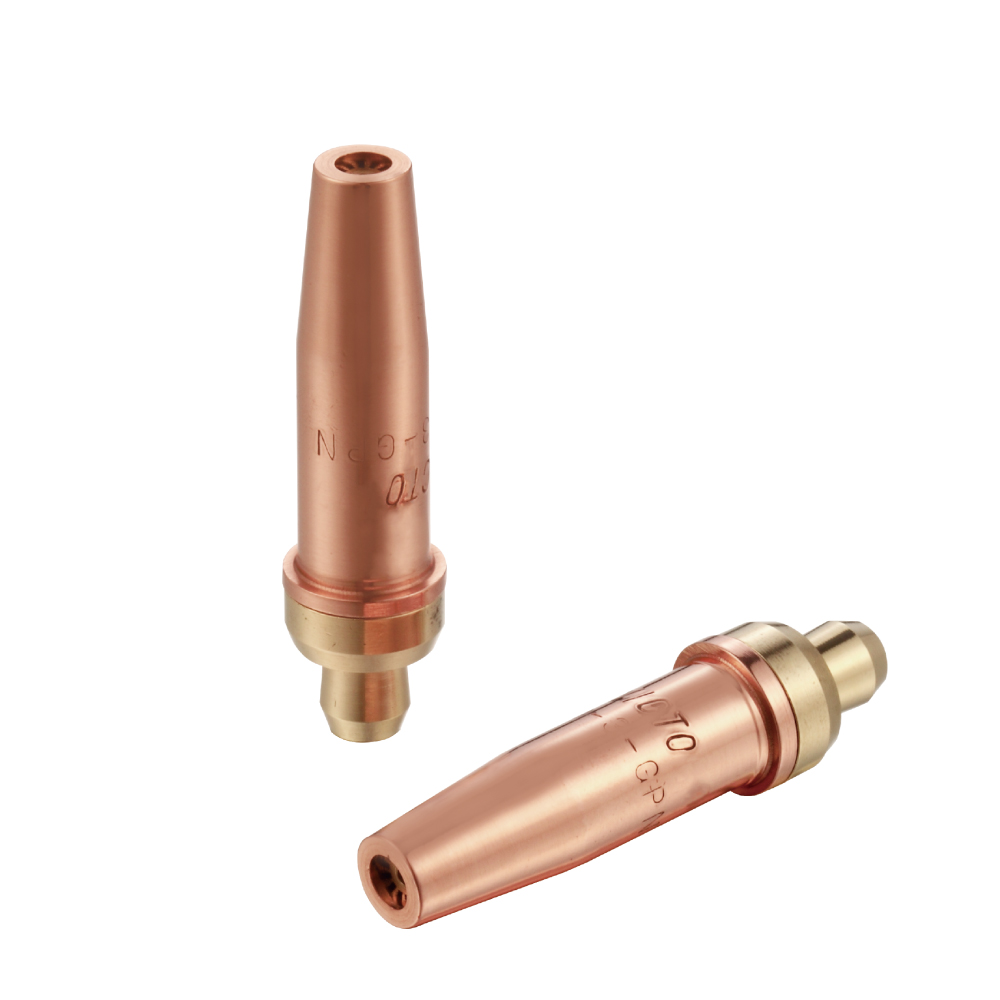

FEATURES:
Two-Pieces type
For V*Star Cutting attachment, cutting torches & cutting machine.
Tip Size: 000, 00, 0, 1, 2, 3, 4, 5
| Tip | Cutting Thickness (mm) | Cutting Oxygen (psig) | Fuel (psig) | Orifice (mm) |
| 000-3-GPN | 1-3 | 20-25 | 3-5 | 0.7 |
00-3-GPN | 3-6 | 20-25 | 3-5 | 0.8 |
0-3-GPN | 6-10 | 25-30 | 3-5 | 1.0 |
1-3-GPN | 10-20 | 30-35 | 3-5 | 1.2 |
2-3-GPN | 20-40 | 40-45 | 3-7 | 1.5 |
3-3-GPN | 40-60 | 40-45 | 4-9 | 1.8 |
4-3-GPN | 60-80 | 40-50 | 5-10 | 2.0 |
5-3-GPN | 80-125 | 45-55 | 5-12 | 2.4 |
