EATURES:

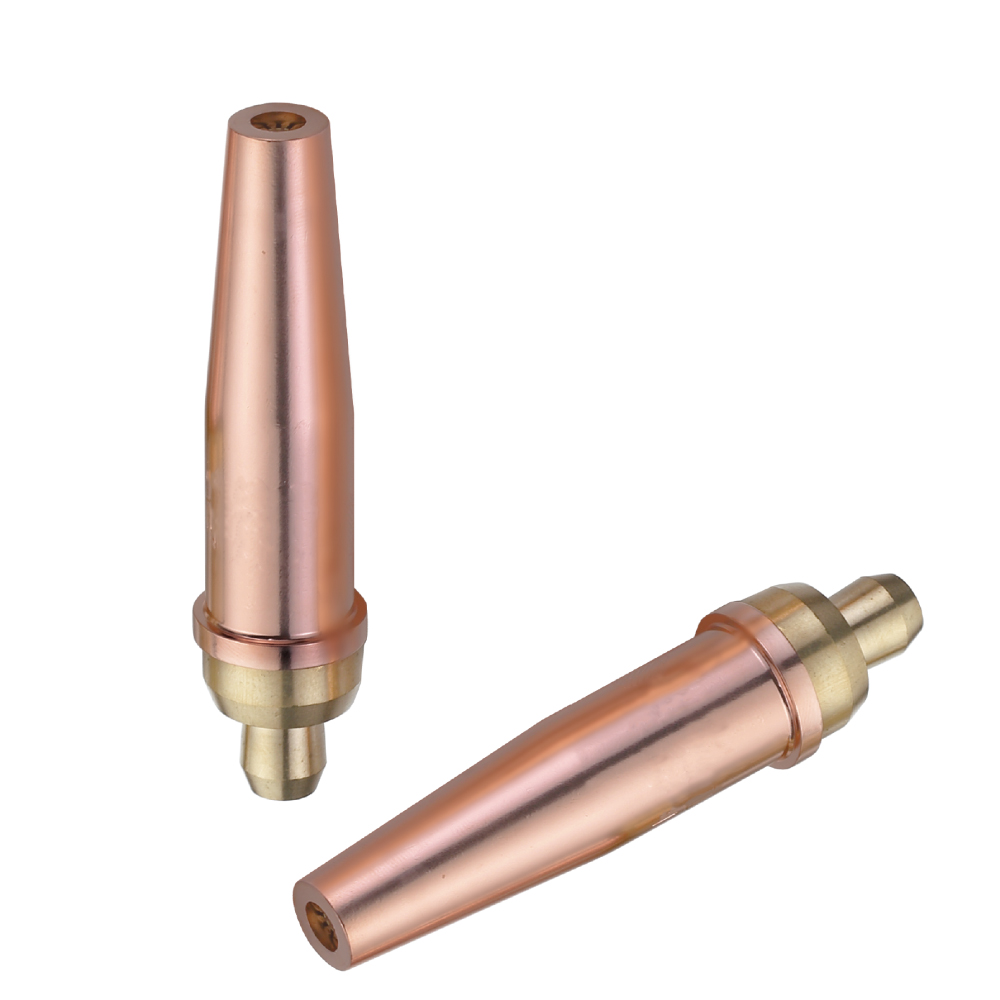

Two-Pieces type
For V*Star Cutting attachment, cutting torches & cutting machines.
| Tip | Cutting Thickness (mm) | Cutting Oxygen (psig) | Fuel (psig) | Orifice (mm) |
| 000-GPM | 1-3 | 20-25 | 3-5 | 0.7 |
00-GPM | 3-6 | 20-25 | 3-5 | 0.8 |
0-GPM | 6-10 | 25-30 | 3-5 | 1.0 |
1-GPM | 10-20 | 30-35 | 4-6 | 1.2 |
2-GPM | 20-40 | 40-45 | 4-8 | 1.5 |
3-GPM | 40-60 | 40-45 | 5-9 | 1.8 |
4-GPM | 60-80 | 40-50 | 8-12 | 2.0 |
5-GPM | 80-125 | 45-55 | 8-12 | 2.4 |
6-GPM | 125-200 | 45-55 | 10-15 | 2.8 |
7-GPM | 200-250 | 55-65 | 8-12 | 3.2 |
| 8-GPM | 250-300 | 60-70 | 10-14 | 4.0 |
