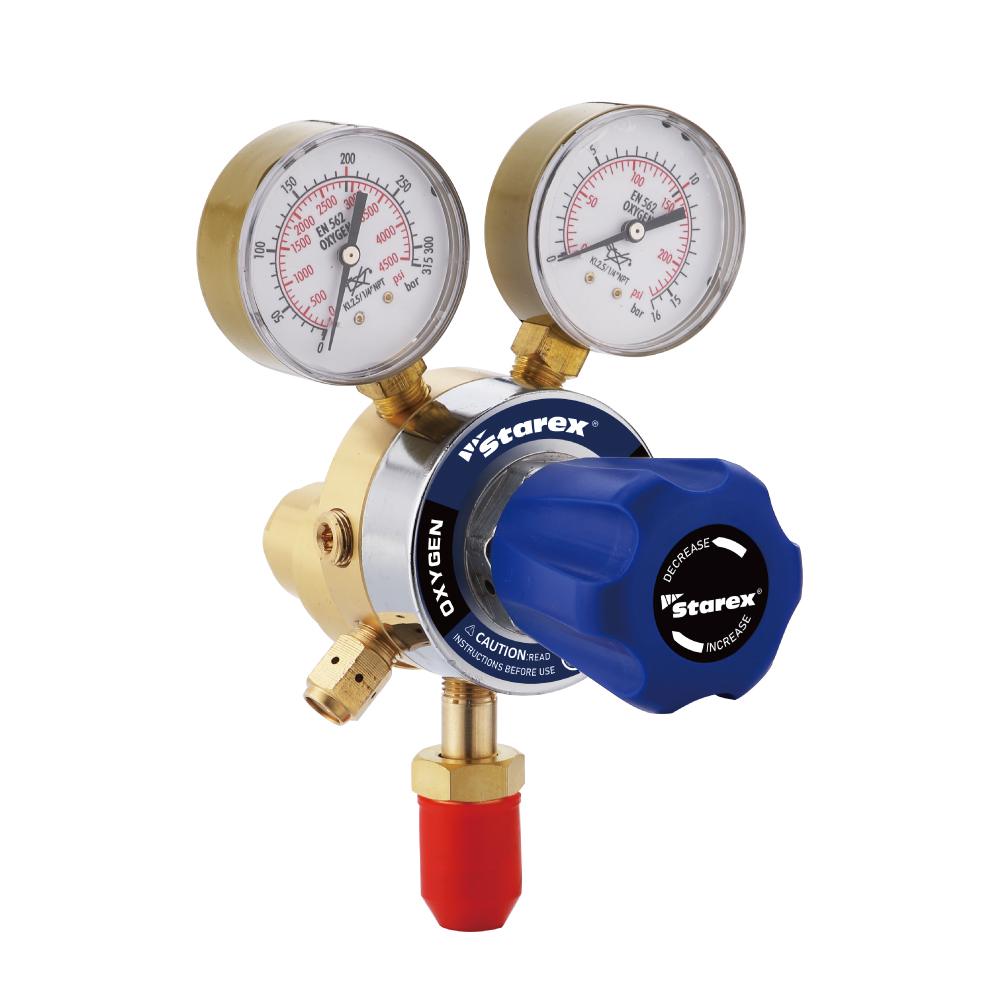

FEATURES:
Two-stage construction provides more constant delivery pressure
First stage reduces cylinder pressure by approximately 90%
Second stage accurately controls flow and delivery pressure
Forged brass body for maximum strength
Chrome bonnet and forged brass
Neoprene diaphragms
External safety relief valve is set for all gases
Sintered metal inlet filter to trap impurities
No soldered joints, for easy maintenance
Side entry (Vertical optional)
| Model | Gas | Max. Inlet Pressure(Bar) | Delivery Pressure(Bar) | Max. Working Pressure(Bar) |
| SR2800-OX | Oxygen | 230 | 16 | 10 |
| SR2800-AC | Acetylene | 25 | 2.5 | 1.5 |
| SR2800-LP | Propane | 25 | 6 | 2.5 |
| SR2800-CD | CO2 | 200 | 16 | 10 |
