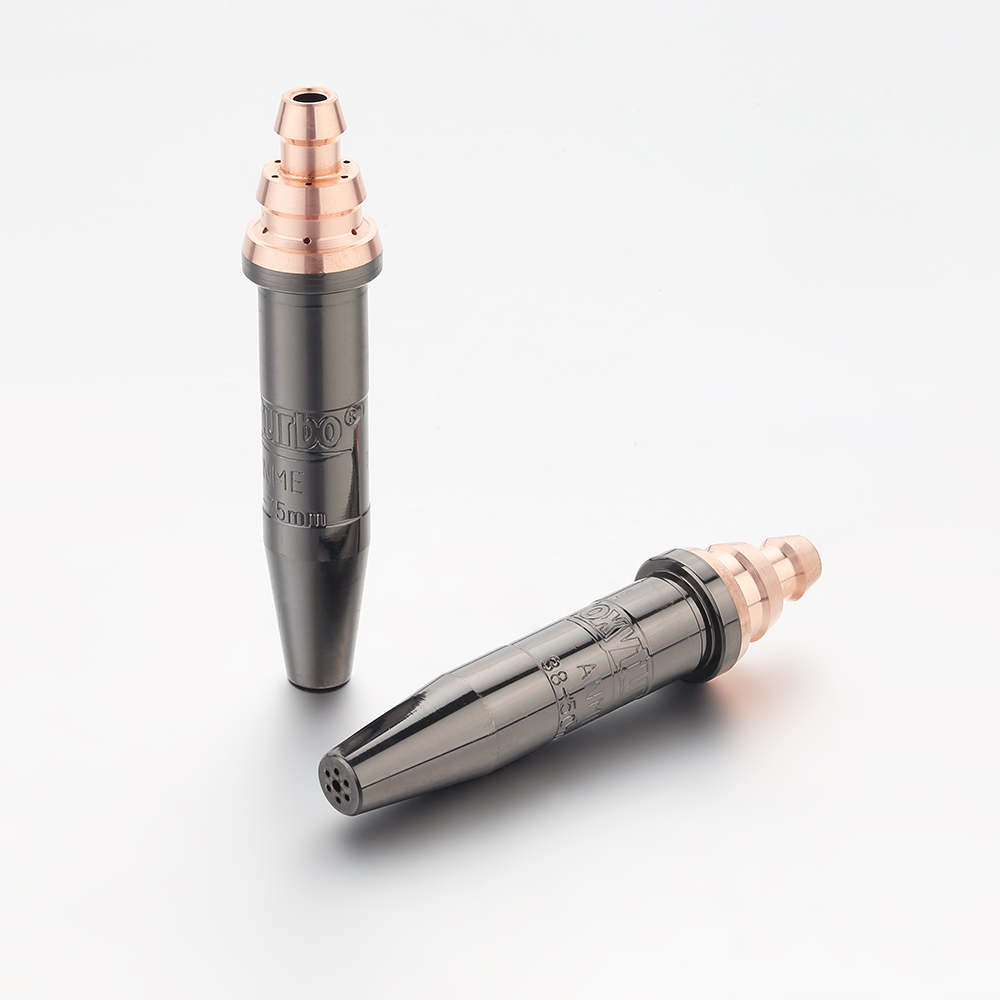

ANME
STAREX
| Quantity: | |
|---|---|
Features:
• ANME Series Acetylene Cutting Tip
• Designed for general-purpose oxy-fuel cutting applications
• Suitable for both hand-held torches and machine cutting systems
• Stable preheat flame for consistent cutting performance
• Durable construction for extended service life
• Compatible alternative to leading European systems (GCE / Messer / AGA / Unitor / BOC)
Custom Option – Black Nickel Plated Cutting Nozzles
• Available with black nickel plated finish for enhanced corrosion resistance
• Improved heat and oxidation resistance for longer service life
• Reduced spatter adhesion for cleaner cutting performance
• Enhanced durability in heavy-duty and high-temperature applications
• Premium appearance for professional-grade cutting equipment
• Optional surface treatment available upon request
| Tip | Cutting Thickness (mm) | Cutting Oxygen (psig) | Fuel (psig) | Orifice (mm) |
| ANME 1/32 | 3-6 | 2.5-3.5 | 0.3 | 0.8 |
ANME 3/64 | 10-20 | 3.0-4.0 | 0.3 | 1.2 |
ANME 1/16 | 20-60 | 3.5-4.5 | 0.3 | 1.6 |
| ANME 5/64 | 60-80 | 4.5-5.0 | 0.5 | 2.0 |
ANME 3/32 | 80-125 | 4.5-5.5 | 0.5 | 2.4 |
ANME 7/64 | 125-200 | 5.0-6.5 | 0.5 | 2.8 |
| ANME 1/8 | 200-300 | 6.0-7.5 | 0.8 | 3.2 |
