3-101
STAREX
| Quantity: | |
|---|---|

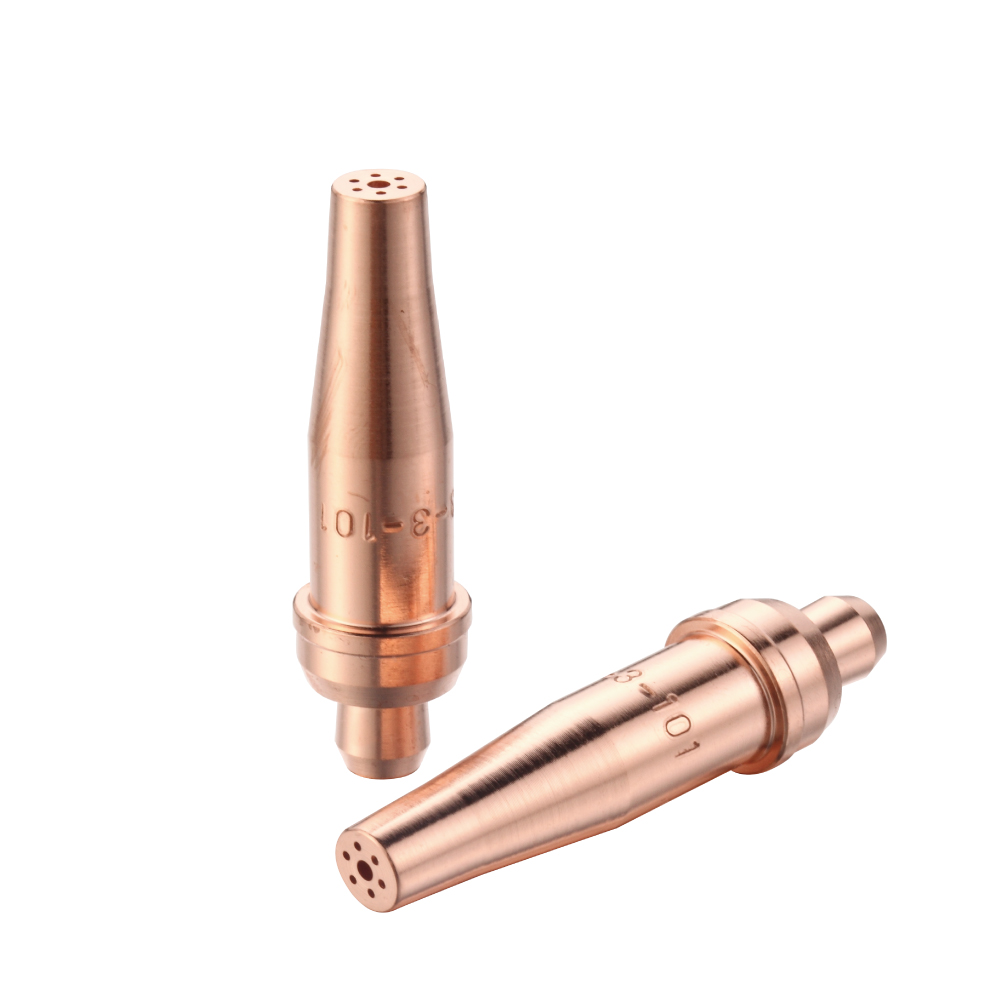

Sourced directly from a premier industrial manufacturer, this medium-duty acetylene cutting tip is engineered to elevate operational efficiency for large-scale fabrication facilities. Designed for seamless integration into existing procurement pipelines, it delivers exceptional thermal stability and precision.
Manufactured for high-volume industrial applications
Direct-from-factory sourcing ensures consistent supply and cost control
Optimized for both manual and mechanized torch setups
Engineered to reduce operational downtime and maintenance frequency
Step into a realm of unmatched thermal precision with our medium-duty acetylene cutting tip. From the moment you handle this component, the solid, weighty feel of premium machined brass and pure copper communicates industrial-grade durability. The sleek, seamlessly turned exterior is not just visually striking; it is purposefully crafted to resist slag buildup and withstand the intense radiant heat of continuous heavy-duty fabrication. When ignited, the tip produces a distinctly sharp, focused, and stable preheat flame that hums with consistent power, slicing through thick carbon steel with a fluid, butter-like smoothness.
Beyond its robust physical attributes, this cutting tip is a strategic asset for your fabrication floor. The meticulously drilled orifices ensure a perfectly balanced oxygen stream, resulting in exceptionally clean, dross-free kerfs that drastically reduce the need for secondary grinding or finishing. By maintaining a stable thermal profile even during prolonged cutting cycles, it prevents the frustrating blowbacks and erratic flame behaviors that often disrupt production lines. Equipping your workforce with this precision-engineered tool means faster cutting speeds, reduced operator fatigue, and a noticeable improvement in overall project turnaround times, ultimately driving a more efficient and profitable operation.
| Tip Size | Cutting Thickness (mm) | Cutting Oxygen (psig) | Fuel (psig) | Orifice (mm) |
|---|---|---|---|---|
| 000-3-101 | 1-3 | 20-25 | 3-5 | 0.7 |
| 00-3-101 | 3-6 | 20-25 | 3-5 | 0.8 |
| 0-3-101 | 6-10 | 25-30 | 3-5 | 1.0 |
| 1-3-101 | 10-20 | 30-35 | 3-5 | 1.2 |
| 2-3-101 | 20-40 | 40-45 | 3-7 | 1.5 |
| 3-3-101 | 40-60 | 40-45 | 4-9 | 1.8 |
| 4-3-101 | 60-80 | 40-50 | 5-10 | 2.0 |
| 5-3-101 | 80-125 | 45-55 | 5-12 | 2.4 |
Engineered to meet the rigorous demands of modern metalworking, this cutting tip combines advanced fluid dynamics with rugged metallurgy. It empowers operators to achieve flawless cuts while minimizing consumable waste.
Series 3 Acetylene Optimization: Specifically calibrated for oxy-acetylene gas mixtures, ensuring maximum heat transfer and rapid preheating capabilities.
Stable Flame Performance: Internal gas channels are micro-machined to guarantee high cutting consistency, eliminating flame flutter and ensuring a steady, piercing jet.
Broad Industrial Application: Perfectly optimized for general-purpose cutting, adapting effortlessly to shipyards, automotive repair, and structural steel fabrication.
Dual System Compatibility: Delivers equally exceptional results whether installed on a manual hand torch or integrated into a mechanized track cutting system.
Extended Service Life: The robust copper and brass architecture actively dissipates heat, significantly reducing replacement frequency and keeping your production lines moving.
Premium Alternative: Serves as a highly reliable, cost-effective replacement for VICTOR® cutting tips, maintaining top-tier performance without the premium markup.
Understanding the critical balance between performance and operational expenditure, this cutting tip is designed to deliver measurable improvements across all facets of your metal fabrication workflow.
Forged from premium pure copper and high-grade brass, the one-piece design exhibits exceptional thermal conductivity. This superior craftsmanship prevents heat accumulation at the tip end, effectively resisting slag adherence and wear, ensuring a remarkably long operational lifespan even in the most punishing high-temperature industrial environments.
Designed as a flawless, high-quality alternative to standard VICTOR® consumables, it offers seamless integration. Operators can effortlessly thread this tip into VICTOR® 1300 and 1200 series, as well as CA1350, CA1260, CA-2470, CA1351, and CA1352 cutting attachments without any modifications, ensuring zero friction during equipment transitions.
Through precision engineering, the internal gas mixing chambers provide an incredibly stable flame and a uniform, laminar oxygen stream. This translates to smooth, continuous cuts with exceptionally clean edges and minimal dross, drastically reducing the labor hours typically spent on post-cut grinding and surface preparation.
Built for the dynamic reality of general-purpose industrial cutting, this versatile component transitions smoothly from intricate manual detailing to heavy-duty mechanized automation. It provides project managers with the flexibility to deploy a single, reliable consumable across diverse operational environments.
Available in a complete array of sizes ranging from 000 to 5, this series offers surgical precision for thin sheet metals starting at 1mm, all the way up to aggressive severing of 125mm thick steel plates. This comprehensive coverage ensures that every specific orifice and pressure requirement is met with exactitude.
By delivering original-equipment-level cutting quality at a highly competitive price point, this tip transforms procurement strategy. The extended durability dramatically lowers the frequency of consumable replacements and prevents costly machine downtime, driving down the comprehensive operational costs for large-scale procurement programs.
Securing a reliable supply chain for critical welding and cutting consumables is paramount for maintaining uninterrupted production schedules. We understand the complex demands of large-scale industrial procurement and have structured our manufacturing and fulfillment processes to serve as a seamless extension of your operations.
Uncompromising Quality Control: Every cutting tip undergoes rigorous acoustic and flow-rate testing before leaving the facility, ensuring that your operators receive only the most reliable, defect-free tools.
Scalable Production Capacity: Our advanced manufacturing infrastructure is designed to handle high-volume demands effortlessly, guaranteeing that your inventory levels remain optimal even during peak production seasons.
Direct-Source Economics: By eliminating intermediary markups, we provide a streamlined procurement pathway that maximizes your purchasing power without sacrificing an ounce of performance or safety.
Technical Expertise and Support: Backed by decades of metallurgical engineering experience, our team is equipped to provide precise recommendations, ensuring you select the exact specifications required to optimize your specific cutting applications.
The one-piece construction utilizing premium brass and pure copper maximizes thermal conductivity. This allows rapid heat dissipation away from the cutting zone, which prevents the tip from overheating and degrading. It ensures a stable flame and significantly extends the operational life of the consumable during continuous industrial use.
Absolutely. This tip is precision-machined to serve as a direct, high-quality alternative. It perfectly fits VICTOR® 1300 and 1200 series, as well as CA1350, CA1260, CA-2470, CA1351, and CA1352 cutting attachments. You will experience a secure, leak-free seat with zero need for adapters or modifications.
The precisely drilled orifices, ranging from 0.7mm to 2.4mm, guarantee a laminar flow of cutting oxygen. This concentrated, high-velocity stream effectively blows away molten metal before slag can form, resulting in a narrow, smooth kerf. For thicker plates up to 125mm, the larger sizes maintain this focused jet, preventing the flame from wandering and ensuring a perfectly vertical cut.
Yes, the Series 3-101 tips are engineered for exceptional versatility. Their consistent flame geometry and stable gas flow make them highly reliable for mechanized track torches and automated cutting systems, where uniform speed and uninterrupted performance are critical to maintaining tight dimensional tolerances.
Selecting the right size is crucial for efficiency and cut quality. You should reference our detailed specification table. For instance, a size 000 is ideal for thin materials between 1-3mm requiring 20-25 psig of oxygen, whereas a size 5 is designed for heavy-duty severing of 80-125mm steel, requiring 45-55 psig of oxygen. Matching the size to the thickness prevents excessive gas consumption and poor edge quality.
