FEATURES:
Single stage construction
Forged brass body & High strength alloy bonnet for maximum strength
Neoprene diaphragms
External safety relief valve is set for all gases
Sintered metal inlet filter to trap impurities
No soldered joints, for easy maintenance
Side entry
Knob adjustment
FEATURES:
Single stage construction
Forged brass body & High strength alloy bonnet for maximum strength
Neoprene diaphragms
External safety relief valve is set for all gases
Sintered metal inlet filter to trap impurities
No soldered joints, for easy maintenance
Side entry
Knob adjustment
Model | Gas | Max. Inlet Pressure(Bar) | Delivery Pressure(Bar) | Max. Working Pressure(Bar) |

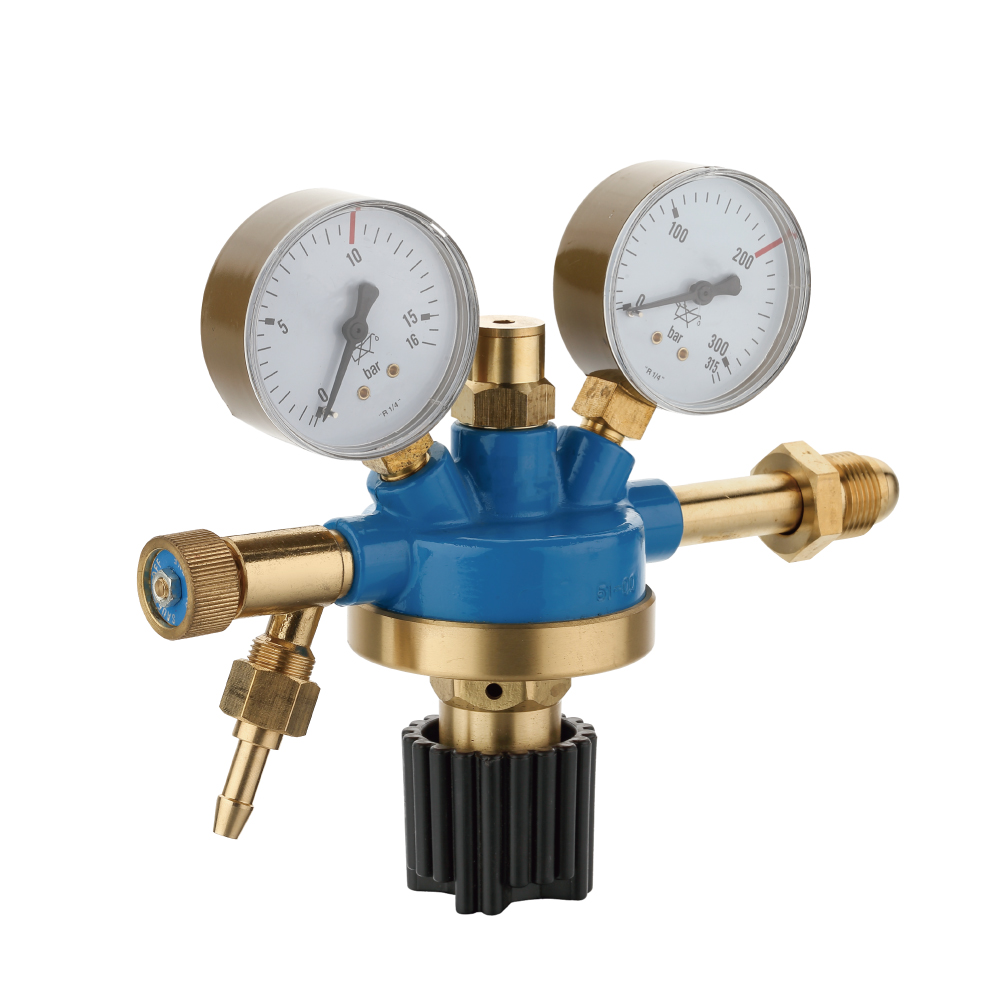

SR750-OX | Oxygen | 230 | 16 | 10 |

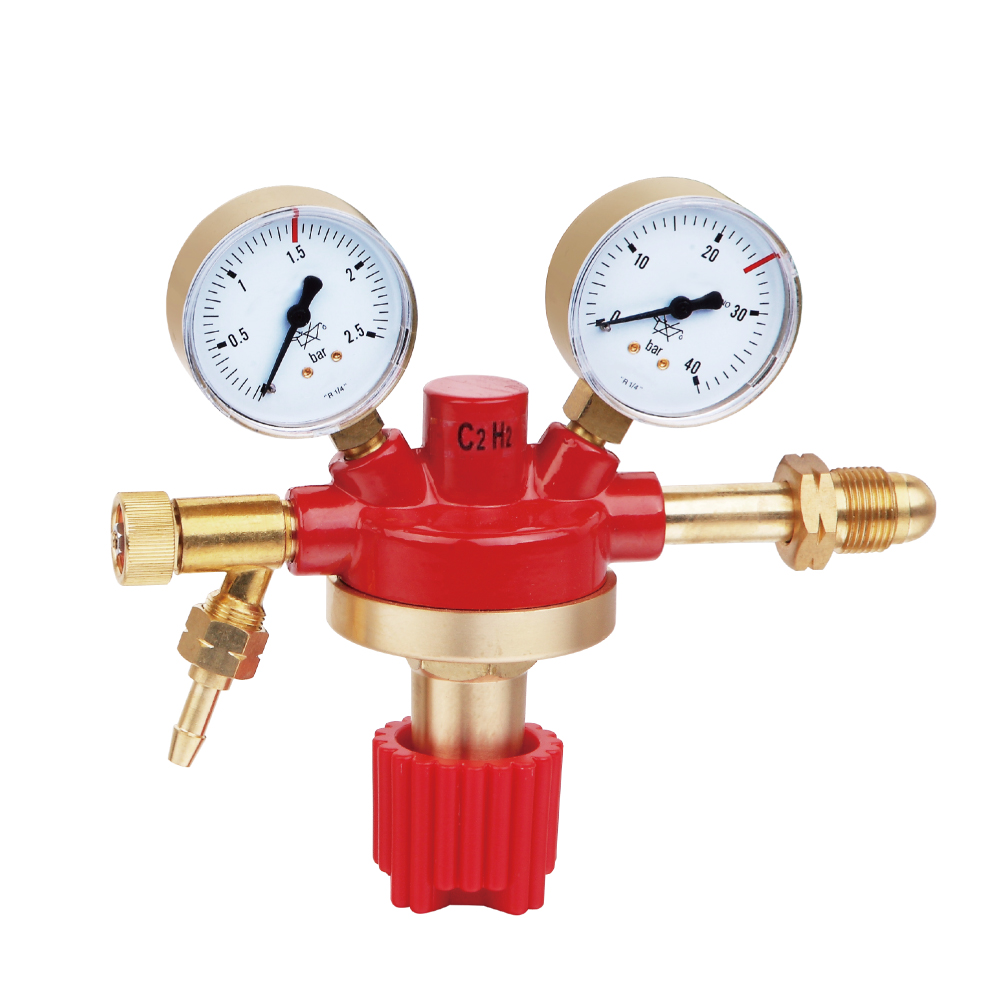

SR750-AC | Acetylene | 25 | 2.5 | 1.5 |
SR750-LP | Propane | 25 | 6 | 2.5 |
SR750-NI | Nitrogen | 230 | 16 | 10 |
Model | Gas | Max. Inlet Pressure(Bar) | Delivery Pressure(Bar) | Max. Working Pressure(Bar) |
SR750-OX | Oxygen | 230 | 16 | 10 |
SR750-AC | Acetylene | 25 | 2.5 | 1.5 |
SR750-LP | Propane | 25 | 6 | 2.5 |
SR750-NI | Nitrogen | 230 | 16 | 10 |
