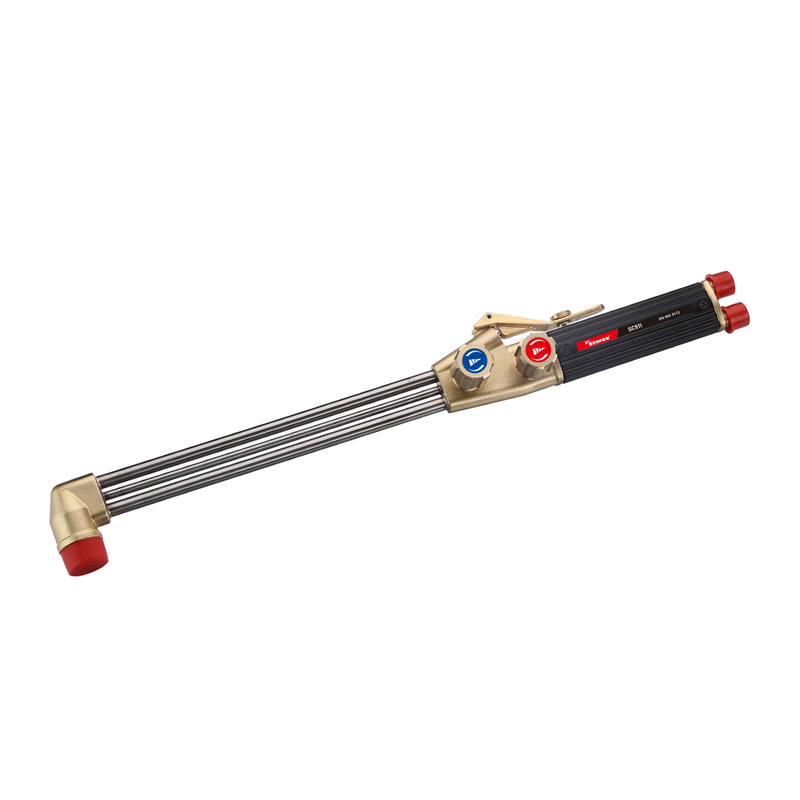

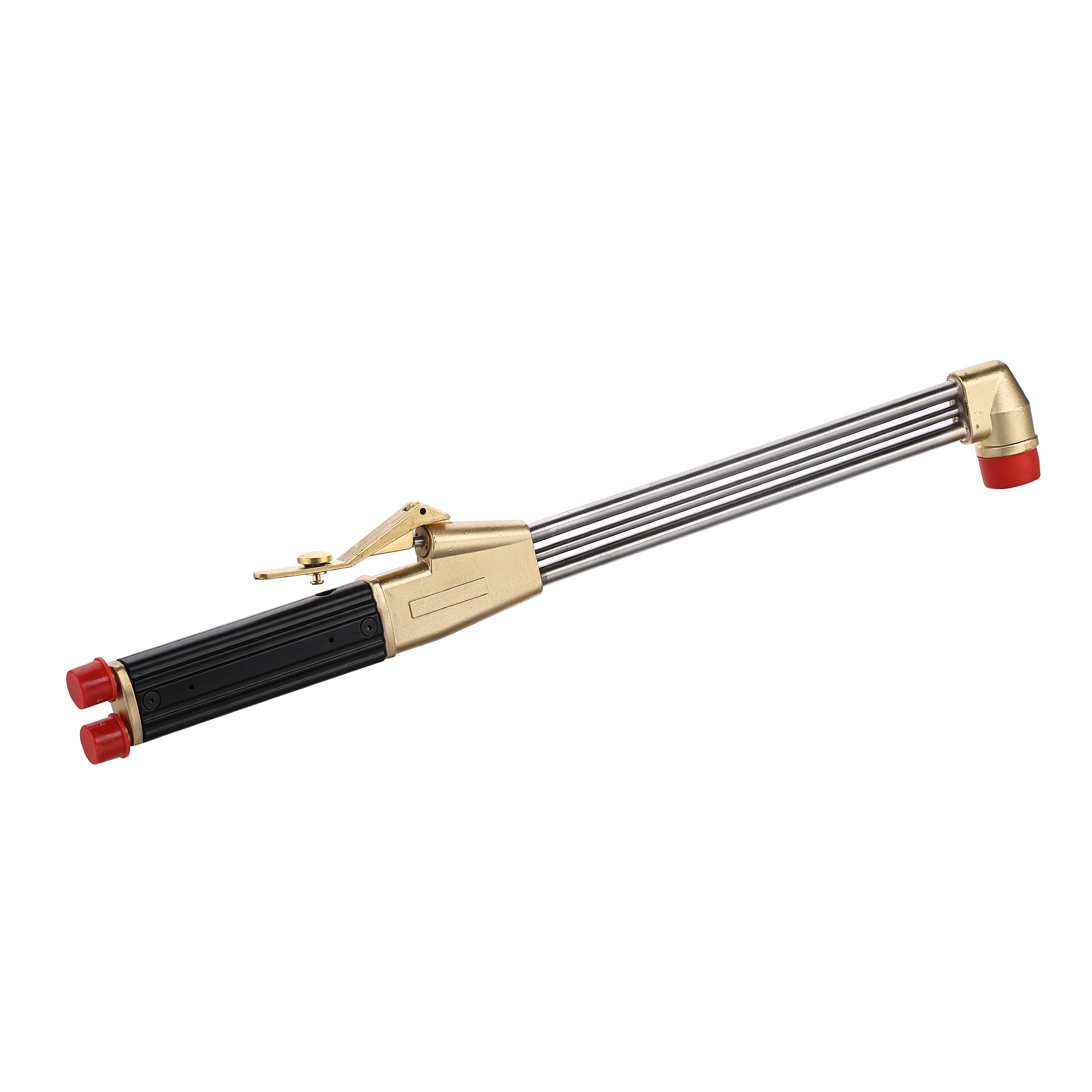

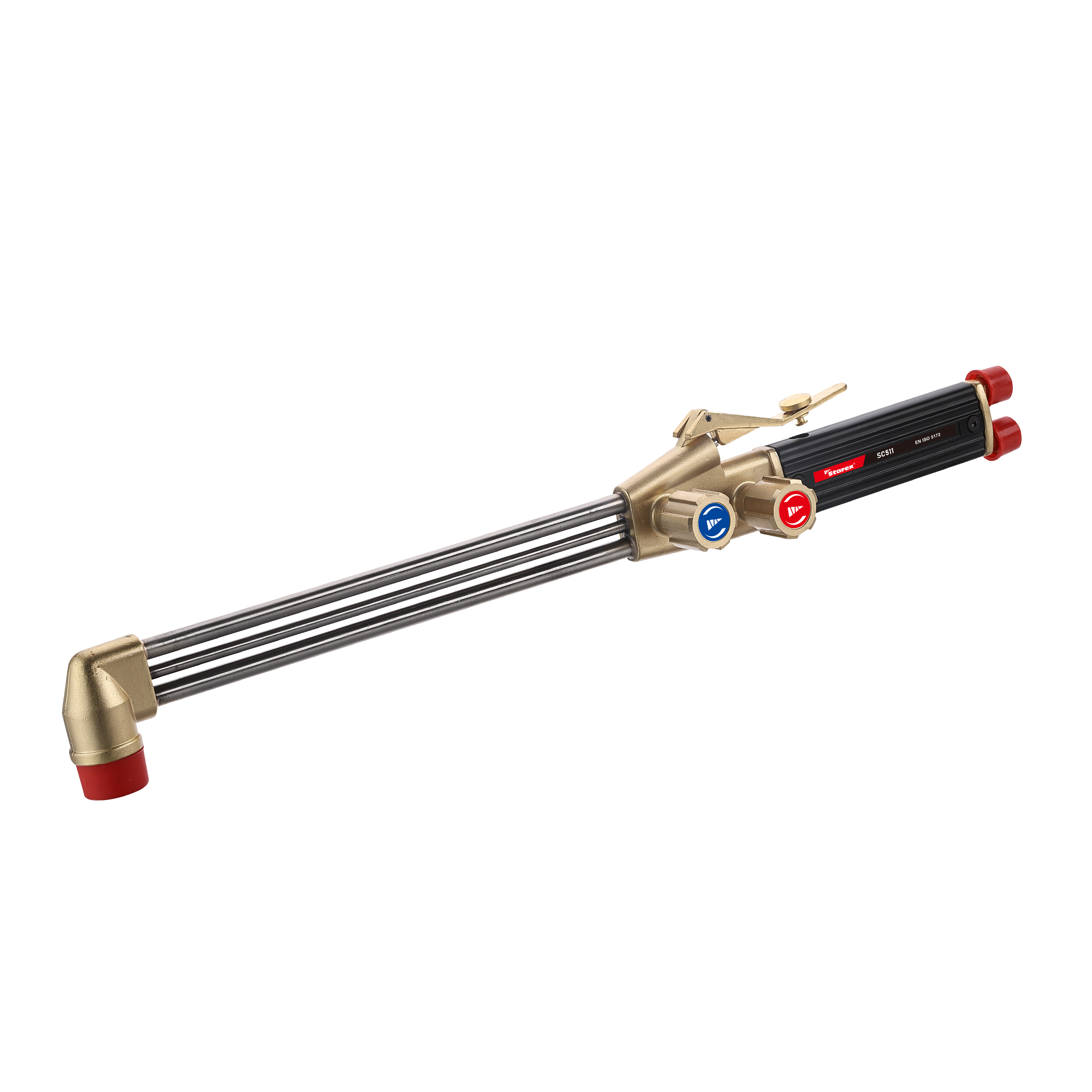

SC511 Heavy-Duty Cutting Torch
Professional Industrial Cutting Performance
The STAREX SC511 Heavy-Duty Cutting Torch is engineered for demanding industrial cutting applications. Designed with an ergonomic profile, balanced weight distribution, and rugged construction, it delivers precise flame control, smooth operation, and reliable performance in continuous use.
Manufactured from premium forged brass components and stainless-steel tubes, the SC511 combines durability, safety, and cutting efficiency for workshops, fabrication plants, shipyards, steel service centers, and heavy industrial environments.
Key Features
- Heavy-duty forged brass body for maximum durability and long service life.
- Stainless steel tubes provide excellent strength, corrosion resistance, and operator visibility.
- Precision brass needle valves ensure accurate flame adjustment and consistent gas flow.
- Ergonomic balanced design reduces operator fatigue during prolonged cutting operations.
- Stainless steel cutting oxygen lever with lock-down button for smooth, comfortable operation.
- Tip-mixing design enhances resistance to flashback and improves operational safety.
- Suitable for piercing, gouging, rivet washing, and heavy-duty steel cutting applications.
- Available in 75°, 90°, and 180° head configurations.
- Compatible with ANME and PNME cutting nozzles.
- Cutting capacity up to 500 mm (20") depending on nozzle selection and gas supply conditions.
Safety & Reliability
Every SC511 cutting torch is manufactured under strict STAREX quality standards and subjected to 100% leakage testing before shipment. Precision-machined sealing surfaces and carefully assembled valve systems ensure dependable performance and long-term reliability in harsh industrial environments.
Designed for Productivity
The forward-mounted control valves allow quick and precise flame adjustment, while the optimized handle profile provides excellent balance and control. Whether performing straight cuts, bevel cuts, piercing operations, or gouging work, the SC511 delivers stable flame characteristics and repeatable cutting results.
The STAREX Advantage
- 100% leak tested before shipment
- Premium brass construction
- Consistent flame performance
- Long service life
- OEM & Private Label available
- Trusted by industrial distributors worldwide
| MODEL | Length (mm) | Angle | Inlet connection oxygen | Inlet connection fuel gas |
| SC5112090 | 510 | 90° | G3/8" | G3/8"LH |
| SC5112091 | 510 | 90° | G1/4" | G3/8"LH |
| SC5112075 | 510 | 75° | G3/8" | G3/8"LH |
| SC5112076 | 510 | 75° | G1/4" | G3/8"LH |
| SC5112080 | 510 | 180° | G3/8" | G3/8"LH |
| SC5113492 | 855 | 90° | G3/8" | G3/8"LH |
| SC5113477 | 855 | 75° | G3/8" | G3/8"LH |
| SC5113480 | 855 | 180° | G3/8" | G3/8"LH |
| SC5114594 | 1155 | 90° | G3/8" | G3/8"LH |
| SC5114578 | 1155 | 75° | G3/8" | G3/8"LH |
| SC5114579 | 1155 | 75° | G1/4" | G3/8"LH |
| SC5114580 | 1155 | 180° | G3/8" | G3/8"LH |
