Featured

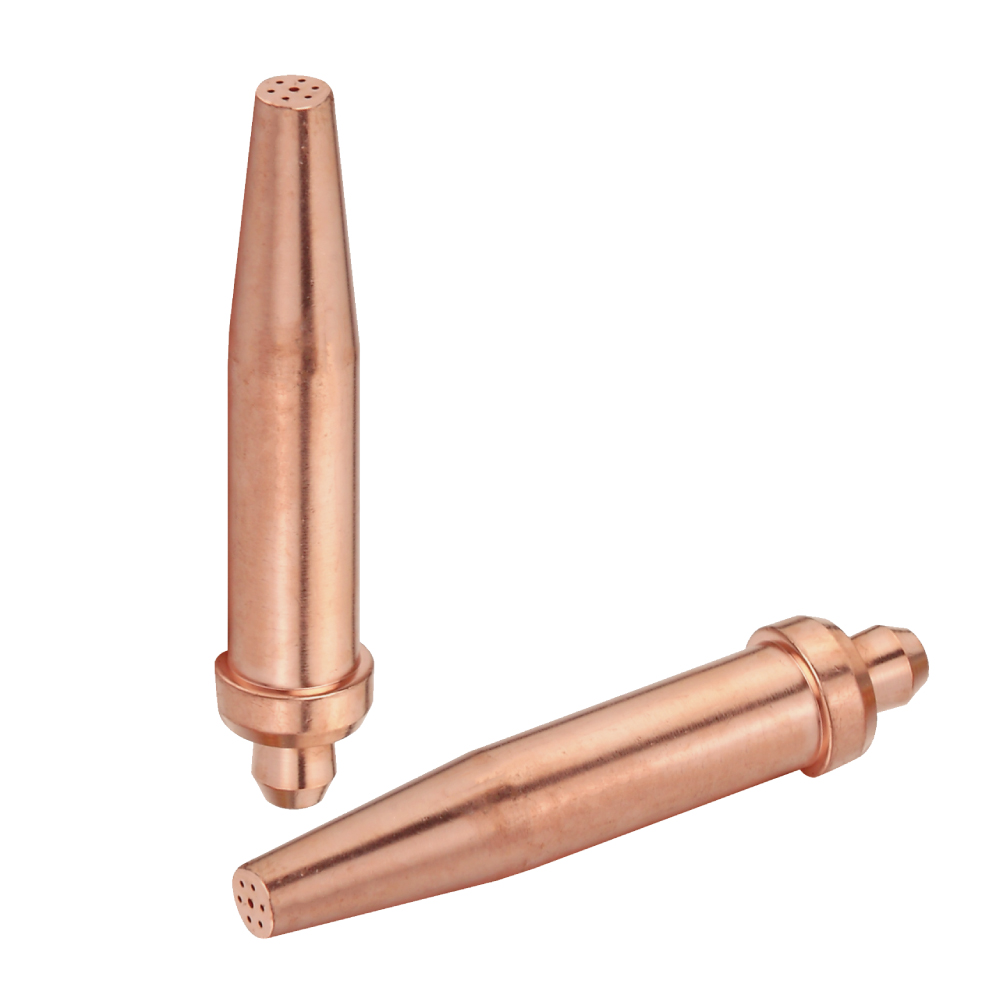

Hard drawn, electrolytic, tough pitch copper used in one-piece nozzles – withstands heat and wear – outlasts any copper alloy nozzle
Precise CNC controlled drilling process ensures consistency in performance and quality
One-piece tips have triple swaged interior – gas passages are mirror smooth with internal angles rounded for non-turbulent, more efficient gas flow – clean, smooth cuts with minimal kerf
Preheat ports are closely spaced around cutting orifice for greater concentration of preheat flames
Long, parallel preheat passages permit re-dressing tips without affecting performance
One-piece tips are a single piece of solid copper– provide maximum cooling – recommended always for acetylene, and for other fuel gases when heat exposure is unusually severe
Two-piece tips – recommended for high efficiency with alternate fuels – solid copper, heavy-wall external sleeve and brass internal sections can be ordered separately to minimize replacement cost
| Tip | Cutting Thickness (mm) | Cutting Oxygen (psig) | Fuel (psig) | Orifice (mm) |
| 4202-2 | 3 | 20-25 | 5-10 | 0.7 |
4202-3 | 6 | 20-25 | 5-10 | 0.8 |
4202-4 | 13 | 30-35 | 5-10 | 1.0 |
4202-5 | 38 | 45-56 | 5-10 | 1.5 |
4202-7 | 100 | 60-73 | 5-12 | 1.8 |
4202-9 | 150 | 67-73 | 7-12 | 2.0 |
4202-11 | 250 | 80-86 | 7-12 | 2.4 |
4202-13 | 300 | 75-85 | 7-12 | 2.8 |
