EH830
STAREX
| Quantity: | |
|---|---|

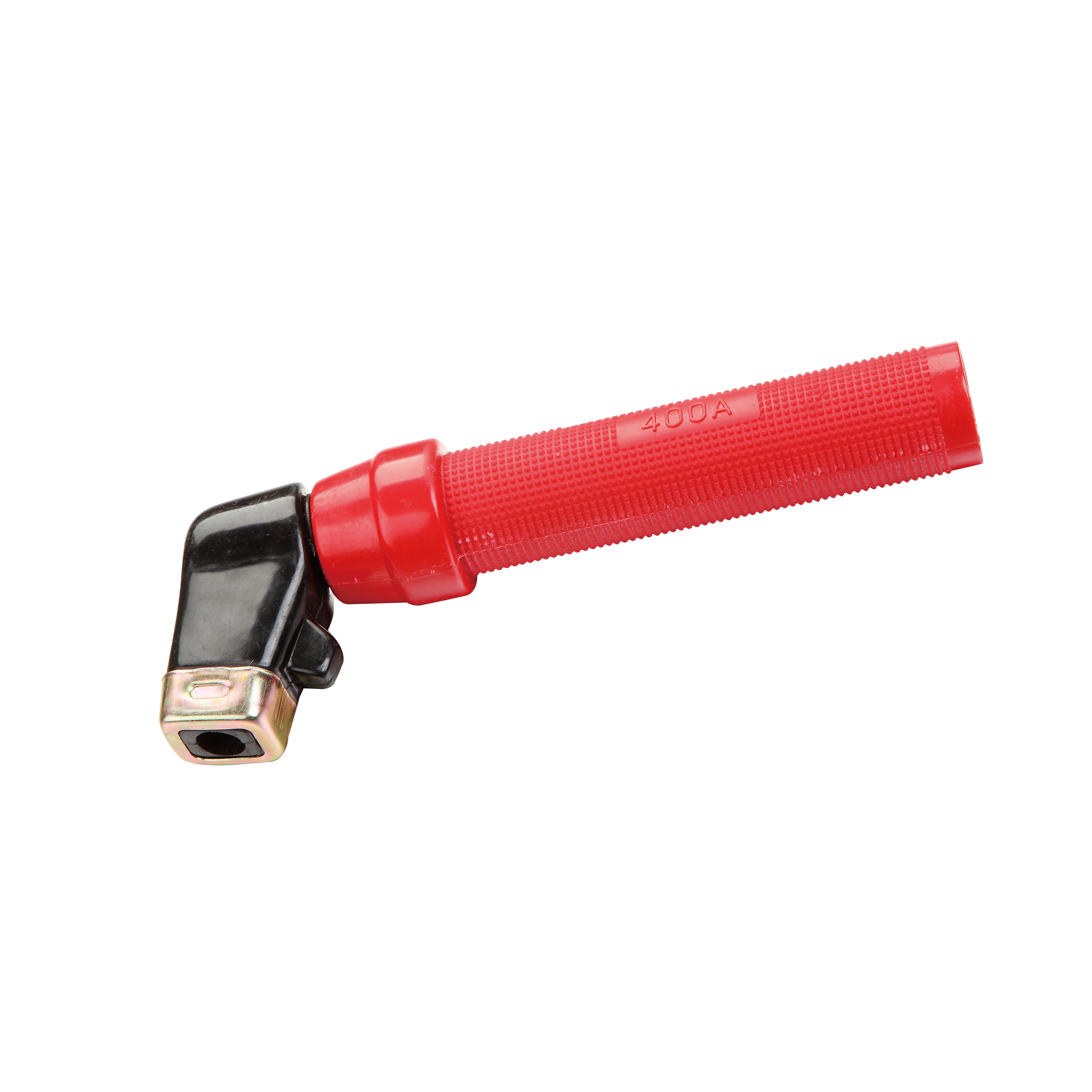

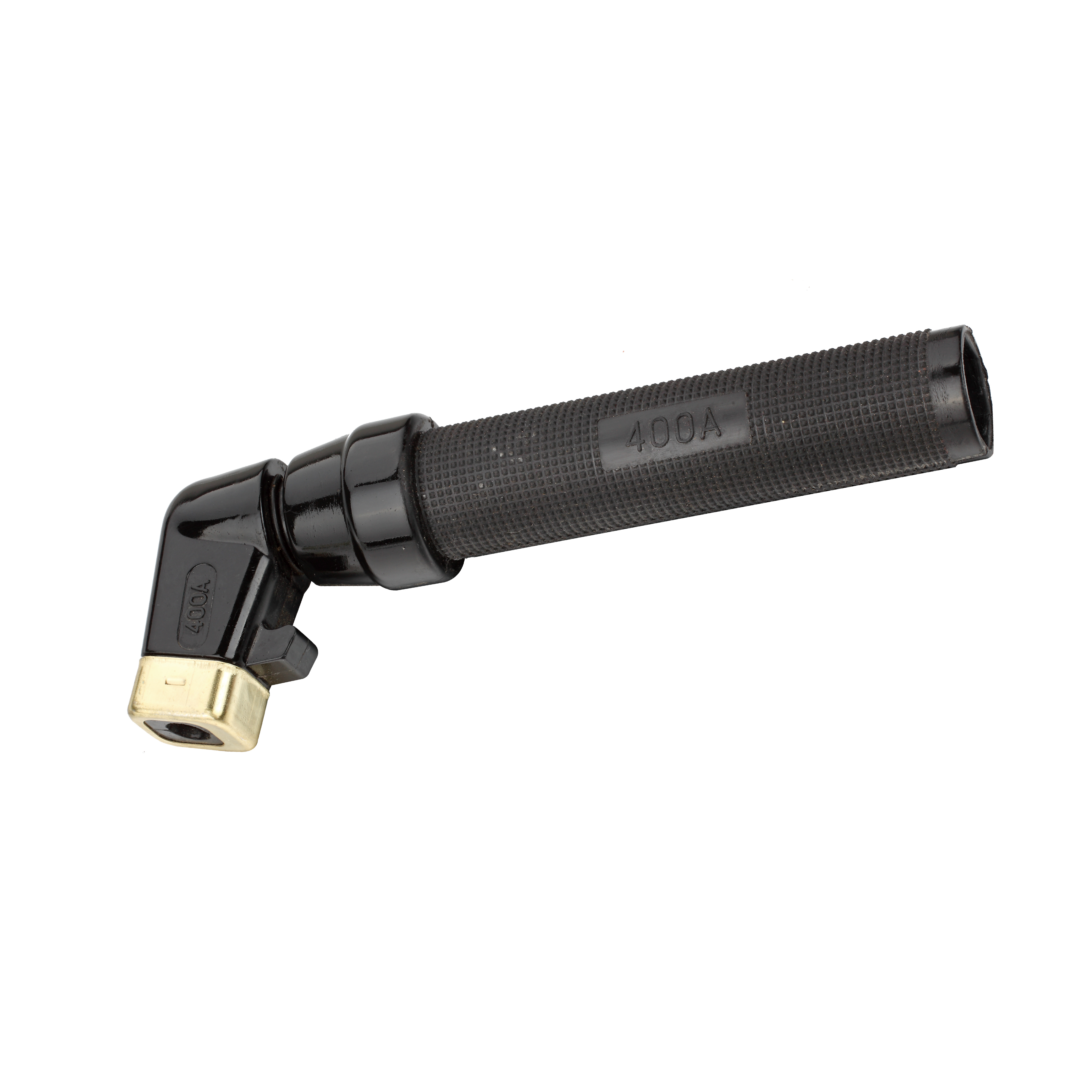

As a leading manufacturer and premium supplier of industrial welding equipment, we present the EH830 Welding Electrode Holder. Engineered for heavy-duty applications, this tool ensures optimal current transfer and exceptional operator safety. Perfect for bulk procurement and large-scale industrial deployment, it delivers consistent performance across the most demanding structural projects.
Forged high-conductivity brass and premium copper alloy internal construction.
Heat-resistant, impact-proof insulated polymer and fiberglass handle.
Precision-grooved jaw design for secure, multi-angle electrode gripping.
Specifically engineered for MMA/Stick welding in heavy industrial environments.
The EH830 Welding Electrode Holder represents the pinnacle of manual metal arc welding accessories, meticulously crafted to elevate operational efficiency on the most demanding job sites. When you grip the handle, the immediate tactile feedback is one of robust stability; the heat-resistant fiberglass polymer feels substantial yet perfectly balanced in the hand, actively mitigating wrist strain during prolonged shifts. The heavy-duty copper alloy core ensures that power flows seamlessly, emitting a steady, reliable hum of electrical current without the disruptive heat buildup that plagues inferior tools. By maintaining a cool exterior and a highly conductive interior, this holder directly translates to smoother weld beads, fewer interruptions, and a significant reduction in operator fatigue.
Furthermore, the precision-engineered jaw mechanism clamps down on electrodes with a satisfying, metallic snap. This unwavering grip prevents arc stutter and electrode slippage, empowering welders to execute flawless vertical and overhead passes with absolute confidence. Whether deployed in the abrasive environment of a bustling shipyard or the high-altitude framework of a commercial construction site, the EH830 withstands the physical abuse of daily drops, sparks, and debris. Equipping your workforce with this caliber of tool not only accelerates project completion times but also drastically reduces replacement costs, ensuring your operations run continuously without costly downtime.
Understanding the exact technical capabilities of your welding equipment is crucial for maintaining safety standards and achieving precise operational outcomes. The EH830 series is manufactured to meet rigorous international standards, specifically EN 60794-11:2010, ensuring reliable performance across various amperage ratings. Below is the comprehensive technical data detailing the material composition, dimensional capacities, and electrical ratings. These specifications are engineered to integrate seamlessly into heavy industrial workflows, providing procurement teams with the exact metrics needed for accurate equipment allocation.

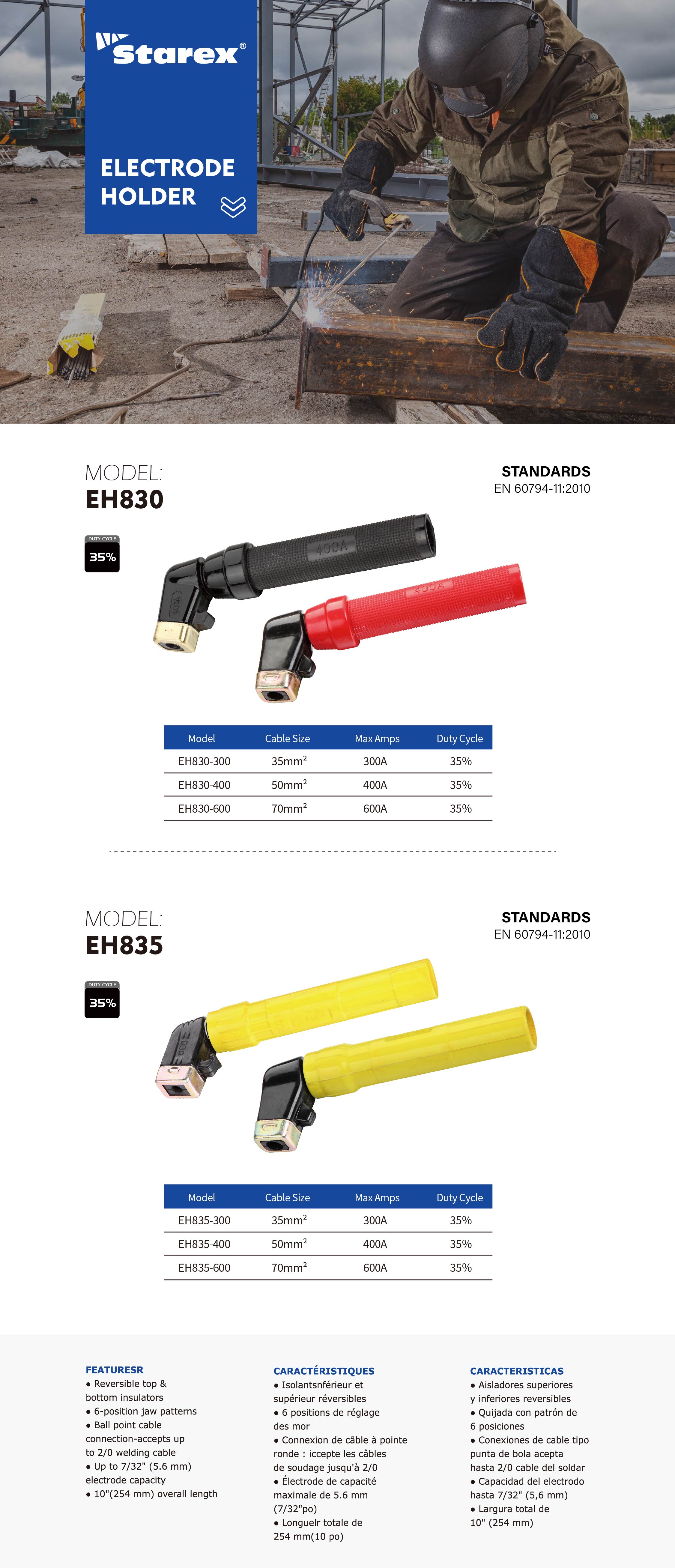

| Specification Feature | Technical Details |
|---|---|
| Product Model | EH830 Series (EH830-300, EH830-400, EH830-600) |
| Amperage Rating (Max Amps) | 300A / 400A / 600A (Heavy Duty) |
| Duty Cycle | 35% |
| Cable Size Compatibility | 35mm² / 50mm² / 70mm² |
| Electrode Capacity | 2.0mm - 6.3mm (5/64" to 1/4") / Up to 7/32" (5.6 mm) |
| Body Material | High-quality Brass / Copper Alloy |
| Handle Material | Heat-resistant Fiberglass / Insulated Polymer |
| Jaw Design | Grooved jaws for multi-angle gripping (45°, 90°, 180°) / 6-position jaw patterns |
| Cable Connection | Heavy-duty grub screw / Allen key connection / Ball point cable connection |
| Spring Material | Fully insulated, high-tension steel spring |
| Weight | Approx. 450g - 600g |
| Overall Length | 10" (254 mm) |
| Standards Compliance | EN 60794-11:2010 |
| Application | MMA/Stick Welding, Heavy Industrial, Construction, Shipbuilding |
Every element of the EH830 has been scrutinized and refined to deliver a superior welding experience. By focusing on the direct needs of professional operators, this tool minimizes common frustrations such as electrode slippage and overheating, thereby maximizing arc-on time and overall productivity.
Reversible Insulators: Top and bottom insulators are fully reversible, effectively doubling the lifespan of the contact points and cutting down on maintenance frequency.
Precision Positioning: The 6-position jaw patterns allow for rapid angle adjustments without compromising the clamping force, adapting instantly to complex joint geometries.
Flawless Circuitry: A specialized ball-point cable connection accepts up to 2/0 welding cable, ensuring a flawless electrical circuit and preventing localized cable overheating.
Versatile Capacity: Capable of handling an electrode capacity from 2.0mm up to 6.3mm, offering immense versatility for diverse structural requirements.
Optimal Leverage: An overall length of 10 inches (254 mm) provides the perfect leverage ratio for secure electrode manipulation while wearing heavy protective gauntlets.
Forged from high-purity brass and premium copper alloys, the internal core boasts exceptionally low electrical resistance. This sophisticated material design drastically reduces energy loss and abnormal heat generation. Even during prolonged, high-amperage (300A-600A) heavy-duty welding tasks, it maintains a highly stable current transfer, fundamentally elevating the metallurgical quality and penetration of every weld.
The handle and upper/lower insulation blocks are constructed from heat-resistant, impact-proof fiberglass and flame-retardant polymers. Featuring a meticulously engineered fully enclosed insulation design and a hidden high-tension spring, it effectively prevents dangerous electrical leakage and spatter burns, providing operators with the highest tier of occupational safety assurance.
Equipped with a high-strength insulated spring and precision-machined grooved jaws, it delivers an immense, vice-like biting force. This ensures the electrode remains completely secure and slip-free across multiple operational angles (45°, 90°, or 180°), easily accommodating complex spatial requirements and varied positional welding needs without frustrating interruptions.
Purpose-built for extended operational hours, the weight distribution is perfectly even, and the center of gravity is meticulously calibrated. The handle surface features an anti-slip texture that feels incredibly comfortable to grip, significantly reducing musculoskeletal fatigue in the operator's hands and wrists, thereby boosting overall daily productivity and focus.
The robust structural integrity is highly resistant to severe drops, heavy abrasion, and atmospheric corrosion. Specifically engineered for the rigorous, unforgiving demands of shipyards, massive commercial construction sites, and remote pipeline laying, this extreme durability inherently lowers the frequency of tool replacement and reduces overall procurement and maintenance expenditures.
Fully compatible with a wide spectrum of electrode sizes ranging from 2.0mm to 6.3mm. The rear cable connection utilizes a large-diameter design secured by heavy-duty grub screws via an Allen key, making wiring incredibly fast, rock-solid, and highly resistant to detachment under tension. It perfectly matches the vast majority of mainstream manual metal arc (MMA) welding machines currently deployed in the field.
Sourcing reliable industrial equipment requires a manufacturing partner who understands the critical balance between uncompromising quality and operational cost-efficiency. Our production facilities are dedicated to advancing welding technology, ensuring that every unit shipped meets stringent quality control protocols. By choosing our manufacturing solutions, you are investing in a streamlined supply chain and tools that consistently outlast the competition in the harshest environments.
Optimized Procurement: Direct-from-manufacturer sourcing eliminates unnecessary markup, allowing you to optimize your equipment budget without sacrificing quality.
Guaranteed Reliability: Stringent quality assurance protocols guarantee that every holder performs flawlessly straight out of the box, ensuring immediate deployment.
Volume Readiness: Scalable production capabilities ensure we can meet the high-volume demands of major industrial projects and fleet upgrades without delay.
Dedicated Support: Comprehensive technical support and dedicated account management streamline your purchasing experience from initial inquiry to final delivery.
Continuous Innovation: Relentless material innovation keeps your workforce equipped with the safest, most ergonomically efficient tools available on the market today.
The high-purity copper alloy core significantly reduces electrical resistance compared to standard materials. This highly efficient conductivity minimizes internal heat generation, allowing the holder to maintain a stable 35% duty cycle at maximum amperages without overheating, thereby protecting both the structural integrity of the tool and the comfort of the operator.
The EH830 series is rigorously tested and manufactured to fully comply with the EN 60794-11:2010 international standards. This certification ensures that the insulation properties, mechanical impact strength, and thermal resistance meet the strict safety requirements mandated for heavy industrial and commercial environments.
Yes, the precision-machined grooved jaws and the 6-position pattern are driven by a fully insulated, high-tension steel spring. This specific design provides a vice-like grip on electrodes as small as 2.0mm (5/64"), preventing any micro-movements or slipping that could cause arc instability during challenging vertical or overhead passes.
Absolutely. The handle is constructed from a specialized heat-resistant fiberglass and insulated polymer blend. Beyond its exceptional thermal properties, this material matrix is highly resistant to common industrial solvents, cutting oils, and abrasive metallic dust, ensuring long-term structural integrity and safe handling.
The ball-point connection, secured tightly by a heavy-duty grub screw, distributes the clamping pressure evenly across the exposed copper strands of the welding cable. This intelligent design prevents the severing or crushing of individual strands, ensuring a solid, low-resistance electrical connection and preventing localized overheating at the critical joint.
