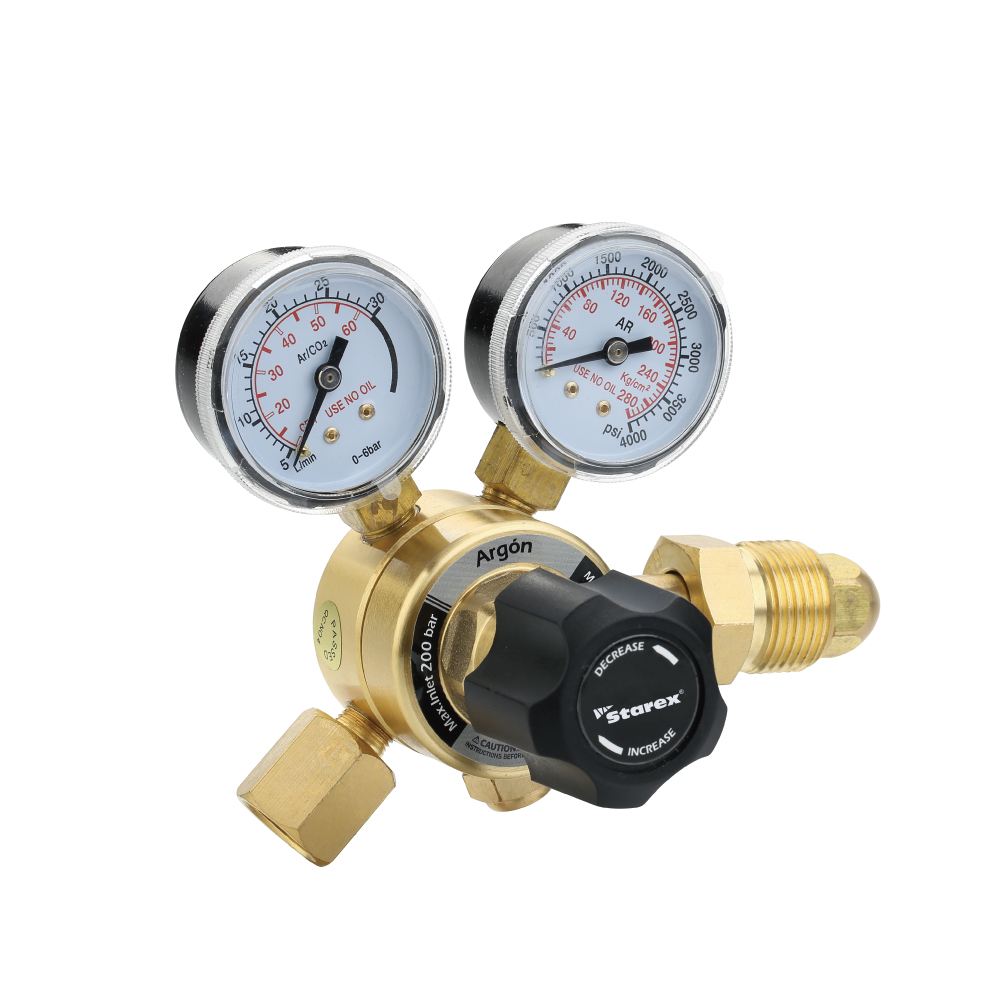

FEATURES:
*MIG/TIG applications
*Single stage construction
*Machined brass body
*Piston design
*Sintered metal inlet filter to trap impurities
*Accurate gas flow regulator
*Safety relief valve is set for all gases
*No soldered joints, for easy maintenance
*Combination of regulator and flowmeter in one unit
*Side entry
*Economy style

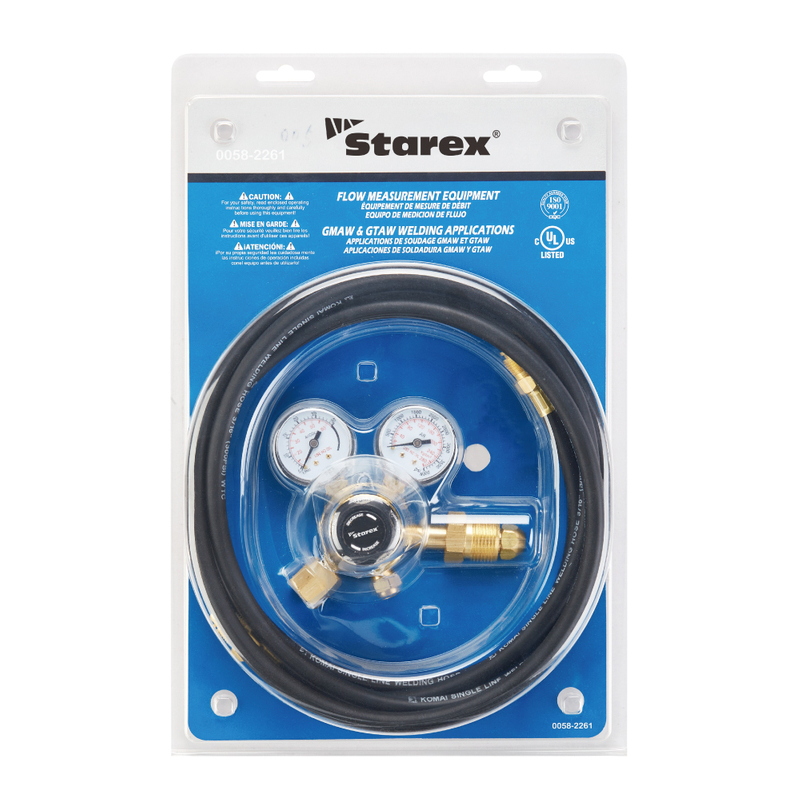

*Optional kit available with 10 feet (3m) hose in clamshell packaging
| Model | Gas | Flow Range | Max. Working Pressure(Bar) | 10 Feet Hose |
| FL52K-AR | Argon | 60(SCFH) | 315 | Included |
| FL152K-CD | Co2 | 60(SCFH) | 315 | Included |
| FL152-AR | Argon | 60(SCFH) | 315 | W/O |
| FL152-CD | Co2 | 60(SCFH) | 315 | W/O |
OUTLET PRESSURE : 3.5 Bar (Preset)
