GC980
STAREX
| Quantity: | |
|---|---|
As a premier manufacturer and direct supplier of industrial welding components, we introduce the Screw Type Ground Clamp GC980. Engineered for high-capacity fabrication environments, this premium grounding solution delivers flawless electrical conductivity and unwavering mechanical stability for your volume procurement requirements.

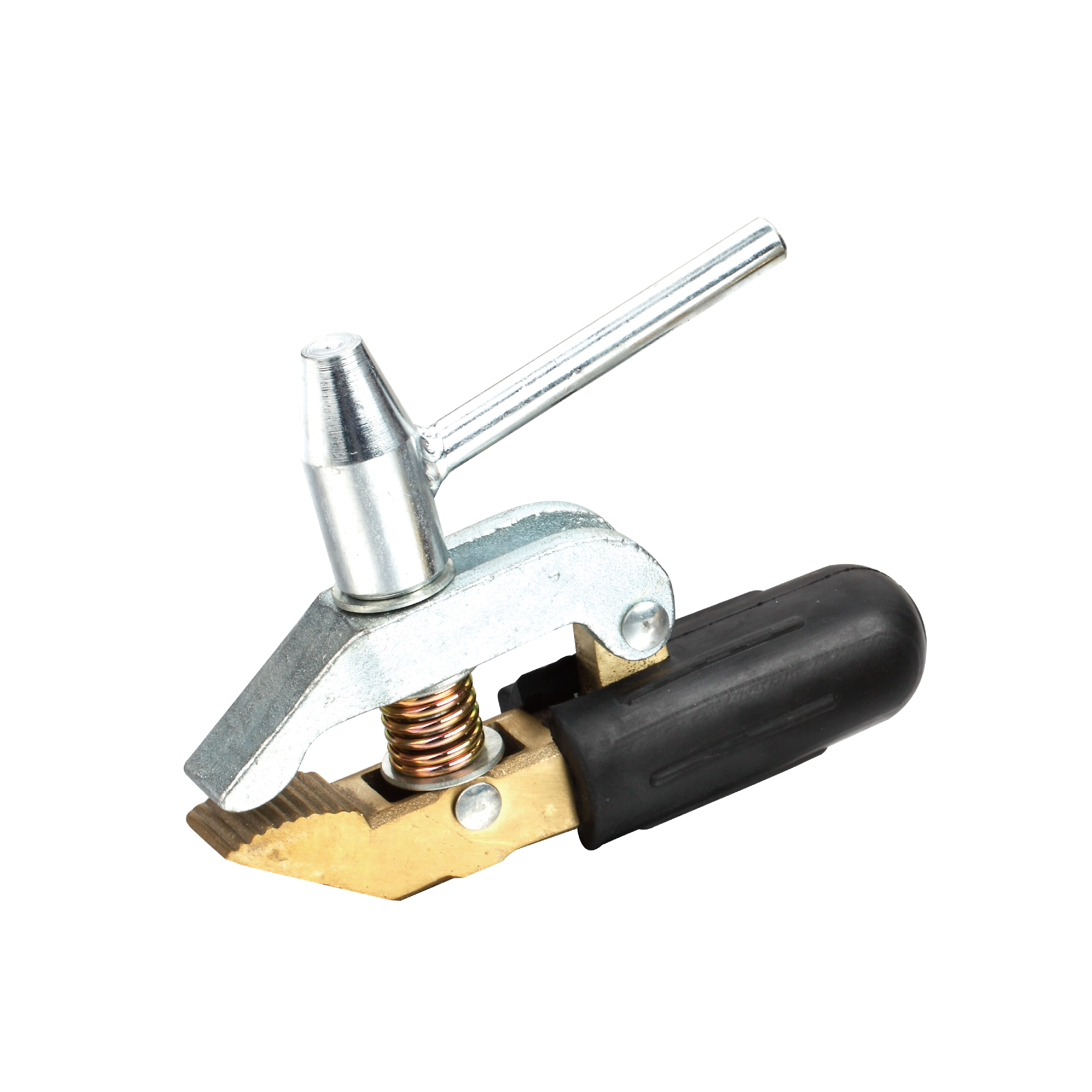

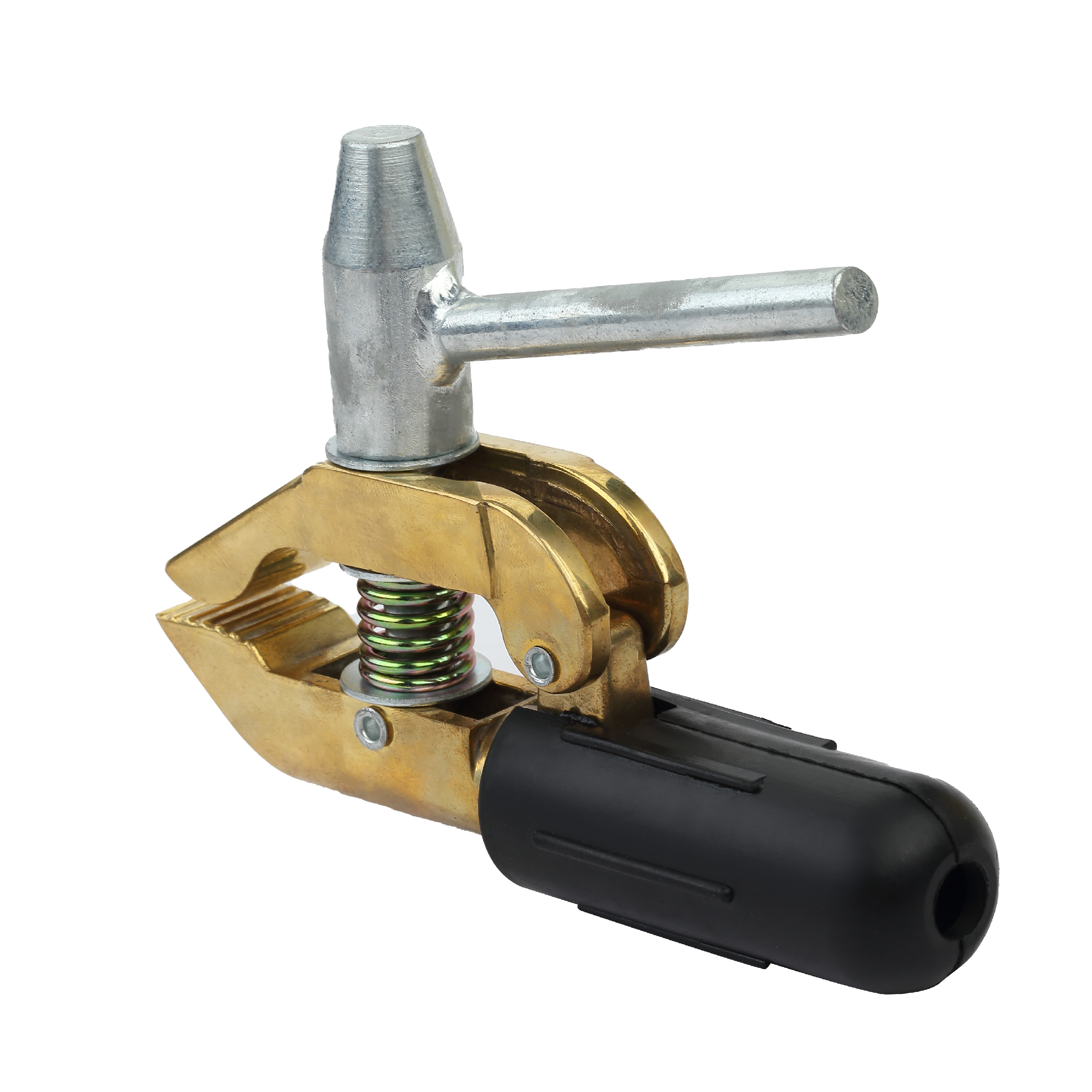

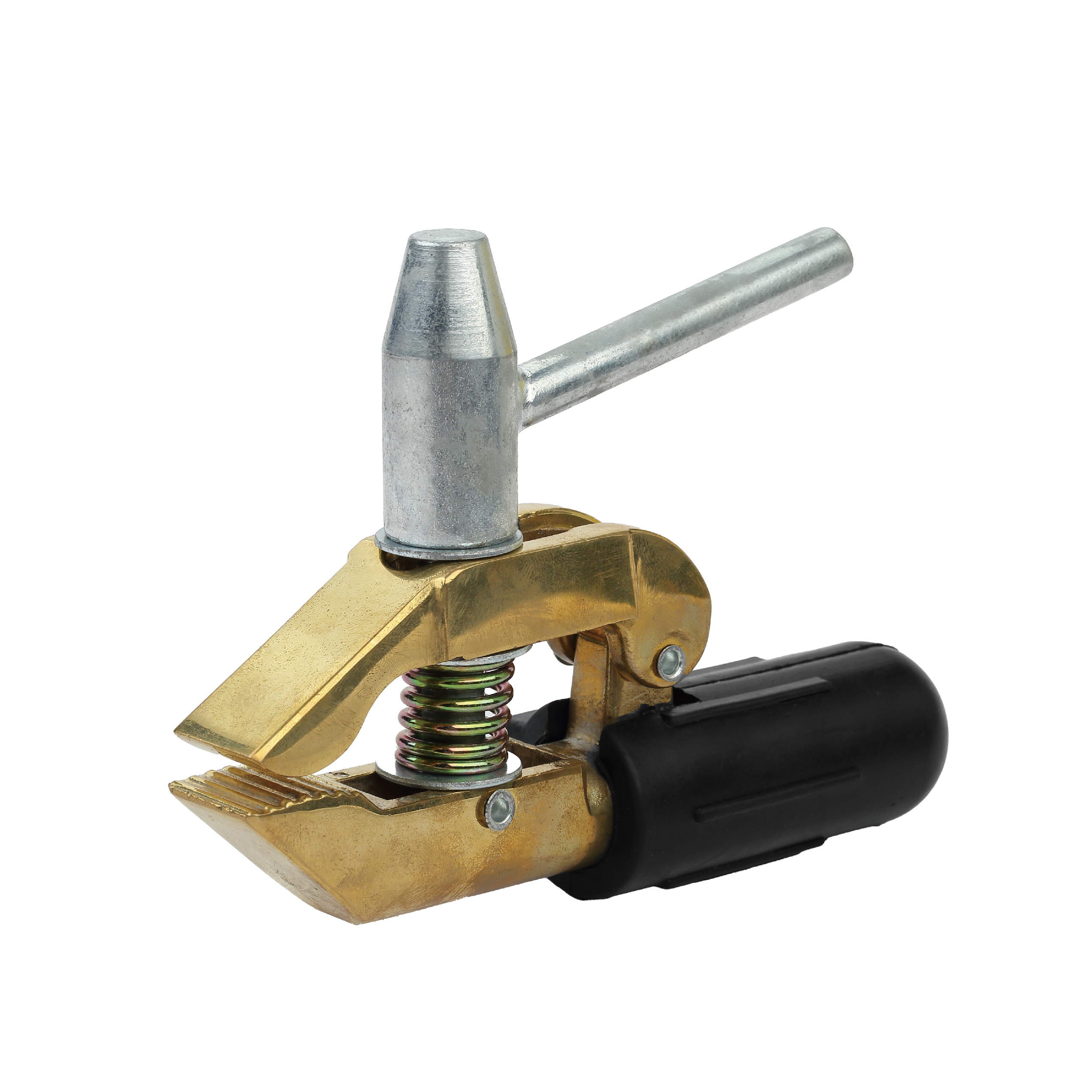

Model: GC980 Screw Type Ground Clamp
Core Material: Premium Forged Brass / Copper-plated Alloy
Amperage Capacity: 500A - 800A Heavy-Duty
Application: Industrial MIG, TIG, MMA, and Submerged Arc Welding
The Screw Type Ground Clamp GC980 is meticulously engineered to redefine the standards of industrial welding connections. When your operators handle this clamp, the substantial, dense weight of the forged brass body instantly communicates its heavy-duty pedigree. The cold, smooth touch of the copper-plated alloy hints at its exceptional resistance to harsh workshop environments, actively repelling corrosive elements and standing defiant against the relentless barrage of high-temperature welding spatter. As the ergonomic T-handle turns with a satisfying, fluid mechanical resistance, it drives the robust jaws together, locking onto metal surfaces with an unyielding bite that feels permanently integrated with the workpiece.
This component is far more than a simple grounding accessory; it is a critical conduit that ensures the lifeblood of your welding operation—the electrical current—flows with absolute zero interruption. By eliminating the micro-arcing and localized overheating that plague inferior clamps, the GC980 transforms erratic, sputtering arcs into a smooth, consistent hum of maximum productivity. Welders on the floor will experience a noticeable reduction in cable heating and a dramatic improvement in weld puddle control. Designed specifically for rigorous, high-amperage applications, the GC980 stands as a silent sentinel of quality, safeguarding both your expensive welding power sources and the structural integrity of every critical joint your production team creates.
| Product Name | Screw Type Ground Clamp / Welding Cable Earth Clamp |
|---|---|
| Model Number | GC980 |
| Body Material | Premium Brass / Pure Copper Forging / Copper-plated Alloy (Heavy-duty anti-corrosion and anti-rust) |
| Rated Current | 500A - 800A (Suitable for heavy-duty high-current welding) |
| Clamping Method | Screw / G-Clamp Type |
| Max Opening Size | Approx. 35mm - 50mm |
| Conductive Contact Surface | Large area pure copper/brass contact pad |
| Handle Design | T-type labor-saving rotary handle |
| Applicable Processes | MIG / TIG / MMA / Submerged Arc Welding (Industrial grade) |
| Duty Cycle | 35% |
| Applicable Cable Size | 70mm² (up to 2/0 welding cable) |
| Electrode Capacity | Up to 7/32" (5.6 mm) |
| Overall Length | 10" (254 mm) |
| Manufacturing Standards | EN 60794-11:2010 |
The GC980 is designed to eliminate the common pain points experienced in heavy fabrication facilities. By focusing on mechanical superiority and electrical efficiency, this clamp directly contributes to lower defect rates and higher operational uptime.
Reversible Insulators: Features reversible top and bottom insulators, extending the usable life of the clamp and reducing replacement inventory needs.
Multi-Position Jaw Patterns: Equipped with 6-position jaw patterns, allowing for secure attachment to a wide variety of irregular metal shapes and angles.
Ball Point Cable Connection: Utilizes a highly secure ball point cable connection that accepts up to 2/0 welding cables, ensuring a tight, high-contact-area electrical bond.
Standardized Compliance: Fully compliant with EN 60794-11:2010 standards, guaranteeing that your facility meets strict international safety and performance regulations.
Optimized Dimensions: With a substantial 10-inch (254 mm) overall length, it provides the necessary leverage for secure tightening without adding unnecessary bulk to the workspace.
The foundation of any exceptional ground clamp lies in its metallurgy. The GC980 utilizes high-purity brass and pure copper forging to create a pathway of least resistance for your welding current. This meticulous material selection solves the prevalent issue of energy loss at the grounding point.
Ultra-Low Contact Resistance: The large-area pure copper/brass contact pads ensure that electrical resistance is kept to an absolute minimum, allowing the full amperage to reach the welding arc.
Thermal Dissipation: High-grade brass naturally dissipates heat rapidly. This prevents the clamp from overheating and melting cable insulation, a common cause of workplace hazards and equipment failure.
Anti-Corrosive Plating: The copper-plated alloy exterior acts as a formidable barrier against atmospheric moisture and chemical vapors common in industrial plants, maintaining a clean conductive surface year after year.
Consistent Arc Stability: By delivering a steady, unimpeded flow of current, the superior materials directly contribute to a smoother, more predictable welding arc, reducing spatter and post-weld cleanup time.
Traditional spring-loaded clamps often fail in dynamic industrial environments, losing their grip over time. The GC980 employs a robust G-clamp style screw mechanism that guarantees a permanent, unyielding connection until manually released by the operator.
Extreme Bite Force: The mechanical advantage of the screw thread allows operators to apply immense clamping pressure, crushing through surface rust or mill scale to reach bare, conductive metal.
Vibration Immunity: In environments with heavy machinery or continuous grinding, the screw lock remains totally unaffected by ambient vibrations, preventing accidental disconnections.
Drag Resistance: When welders need to pull heavy lengths of 70mm² cable across the shop floor, the GC980 stays firmly anchored to the workpiece, eliminating the frustrating interruptions caused by clamps popping off.
Arcing Elimination: A loose clamp causes electrical arcing at the grounding point, which damages the workpiece and wastes energy. The locked-in stability of this screw clamp thoroughly eradicates this costly issue.
Industrial manufacturing demands equipment that can withstand punishing duty cycles without degradation. Rated for an impressive 500A to 800A, the GC980 is built specifically for high-amperage, continuous welding operations.
High Amperage Tolerance: Easily handles the intense electrical loads required for thick-plate welding, gouging, and heavy-duty submerged arc processes without suffering from thermal breakdown.
Sustained Duty Cycles: Engineered to perform reliably under a 35% duty cycle at maximum amperage, ensuring your production lines keep moving without mandatory cooling pauses for grounding equipment.
Thermal Degradation Resistance: Unlike inferior alloys that become brittle or lose conductivity after repeated heating and cooling cycles, our forged brass maintains its structural and electrical integrity indefinitely.
Safety Assurance: By managing extreme heat effectively, the clamp protects the operator from accidental burns and prevents the catastrophic failure of the grounding cable connection.
Frequent replacement of consumable accessories drains procurement budgets and causes unnecessary downtime. The GC980 is constructed with a thickened forging process designed to survive the harshest physical abuse a metalworking shop can dish out.
Drop and Impact Resistance: The dense, solid brass construction absorbs impacts from being dropped off scaffolding or struck by heavy steel beams without cracking or deforming.
Wear-Resistant Threads: The critical screw threads are precision-machined and hardened to prevent stripping or cross-threading, even after thousands of tightening and loosening cycles.
Spatter Deflection: The smooth, plated surface architecture naturally resists the adhesion of molten welding spatter, keeping the mechanical parts moving freely without the need for constant wire-brushing.
Procurement Efficiency: By drastically extending the lifecycle of your grounding clamps, the GC980 significantly reduces your annual consumable spend and simplifies your inventory management.
Operator comfort and speed directly impact the bottom line. The GC980 integrates thoughtful ergonomic features that allow welders to secure their grounding points rapidly, even while wearing heavy, restrictive protective gear.
T-Type Rotary Handle: The prominent, easy-to-grip T-handle provides excellent leverage, allowing operators to achieve maximum clamping force with minimal physical exertion.
Glove-Friendly Operation: Designed specifically to be manipulated while wearing thick leather welding gauntlets, eliminating the need for operators to remove their gloves to adjust the clamp.
Rapid Deployment: The smooth-turning screw mechanism allows for quick opening and closing, saving valuable seconds every time the grounding point needs to be relocated on large fabrications.
Reduced Fatigue: By minimizing the grip strength required to secure the clamp compared to heavy-duty spring clamps, it helps reduce hand and wrist fatigue for welders during long shifts.
A standardized grounding solution simplifies operations across diverse manufacturing sectors. The GC980 is engineered to be the universal grounding choice for a wide array of heavy industries and welding methodologies.
Process Compatibility: Delivers flawless performance across all major industrial welding processes, including MIG (GMAW), TIG (GTAW), MMA (SMAW), and Submerged Arc Welding (SAW).
Shipbuilding and Repair: Ideal for the maritime industry, where secure grounding on massive steel hulls in damp, corrosive environments is an absolute necessity.
Structural Steel Fabrication: Provides the high-amperage capacity and wide jaw opening (up to 50mm) required to clamp onto thick I-beams, H-columns, and heavy base plates.
Pipeline Construction: Ensures stable, reliable arcs for critical pipe joints, where any fluctuation in current can lead to X-ray test failures and costly rework.
Heavy Machinery Manufacturing: Meets the rigorous demands of assembling earth-moving equipment, mining machinery, and agricultural vehicles.
When sourcing critical components for large-scale operations, trust is paramount. Every GC980 clamp undergoes rigorous factory testing to ensure it meets our uncompromising standards before it ever reaches your facility.
Conductivity Verification: Each production batch is subjected to micro-ohm resistance testing to guarantee that the metal composition meets strict electrical conductivity benchmarks.
Mechanical Load Testing: The screw mechanisms and jaws are tested under extreme torque and pressure to ensure they exceed the required clamping force without structural failure.
Thermal Endurance Trials: Clamps are subjected to sustained high-amperage loads in controlled environments to verify their heat dissipation capabilities and thermal stability.
Global Standard Compliance: Backed by CE and ISO certifications, providing procurement officers with the documented assurance required for international compliance and quality audits.
Partnering with the right manufacturer transforms your supply chain from a potential risk into a strategic advantage. We are dedicated to providing superior industrial solutions that drive your operational success.
Direct Manufacturing Capabilities: By controlling the entire production process from raw material forging to final assembly, we ensure consistent quality and highly competitive pricing for volume acquisitions.
Uncompromising QA Standards: Our dedicated quality assurance teams utilize advanced testing protocols, ensuring that every unit delivered performs flawlessly in your demanding environments.
Scalable Production Capacity: Whether you require a standard volume or a massive deployment for a new facility, our agile manufacturing lines can scale to meet your exact delivery schedules.
Technical Expertise: Our engineering support team possesses deep knowledge of industrial welding applications, ready to assist you in selecting the precise specifications required for your unique projects.
Global Logistics Excellence: We have established robust international shipping networks, ensuring your critical components arrive securely packaged, fully documented, and strictly on time.
To assist your engineering and procurement teams in making an informed decision, we have compiled answers to the most technical inquiries regarding the GC980 clamp.
How does the screw-type mechanism outperform traditional spring clamps in heavy fabrication?
Spring clamps rely on tension that degrades over time and can be easily dislodged by cable drag or vibrations. The GC980's screw mechanism utilizes mechanical threads to drive the jaws into the metal, creating a locked, high-pressure connection that cannot be accidentally broken, ensuring zero arc interruption during critical welds.
Can this ground clamp accommodate different welding cable sizes?
Yes, the GC980 features a versatile ball point cable connection designed to securely accept a wide range of industrial cables, up to 70mm² (2/0 welding cable). This ensures a maximum surface area connection between the copper wire and the brass clamp body.
What maintenance is required to ensure optimal conductivity over time?
Due to the premium copper-plated alloy and forged brass construction, maintenance is minimal. We recommend periodically wiping the contact jaws with a wire brush to remove any accumulated mill scale or heavy oxidation from the workpiece transfer, and keeping the screw threads lightly lubricated for smooth operation.
Is the GC980 suitable for high-frequency TIG welding applications?
Absolutely. High-frequency TIG welding requires an exceptionally clean and stable ground to prevent HF wandering and ensure crisp arc starts. The ultra-low contact resistance of the GC980's pure brass/copper pads makes it an ideal choice for precision TIG applications.
How does the forged brass construction impact the thermal dynamics during continuous 500A+ welding?
Forged brass has superior thermal conductivity compared to standard steel clamps. During continuous high-amperage welding, the GC980 rapidly draws heat away from the contact point and dissipates it into the surrounding air. This prevents the clamp from reaching temperatures that could melt the cable jacket or degrade the electrical connection.
