CONFORMITY WITH
EN ISO 2503
CAPACITY : Medium Duty
NET WEIGHT : 1.45 kg / each
OUTLET PRESSURE :3.5 Bar (Preset)

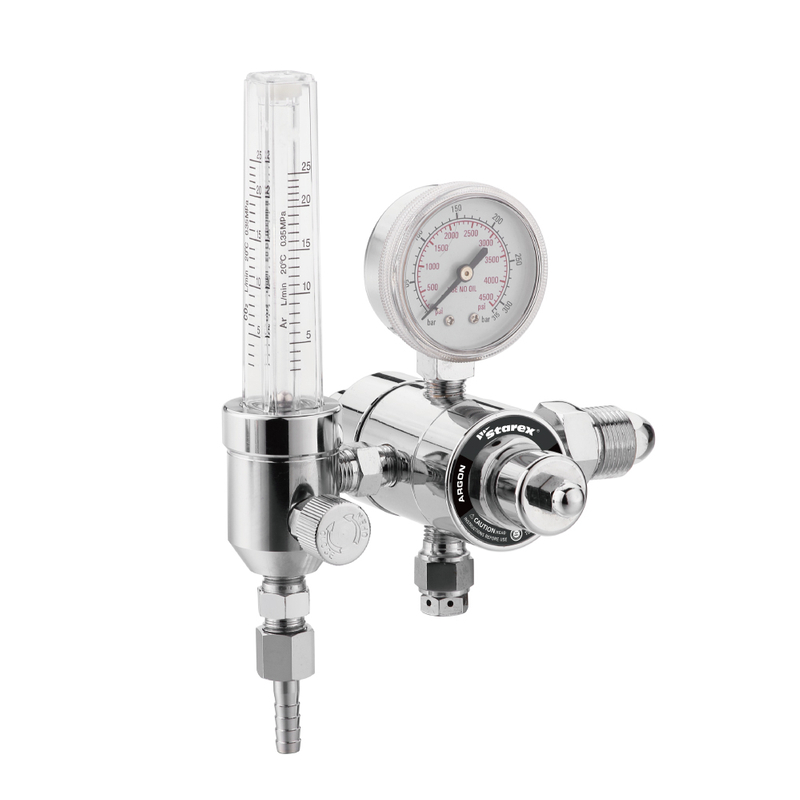

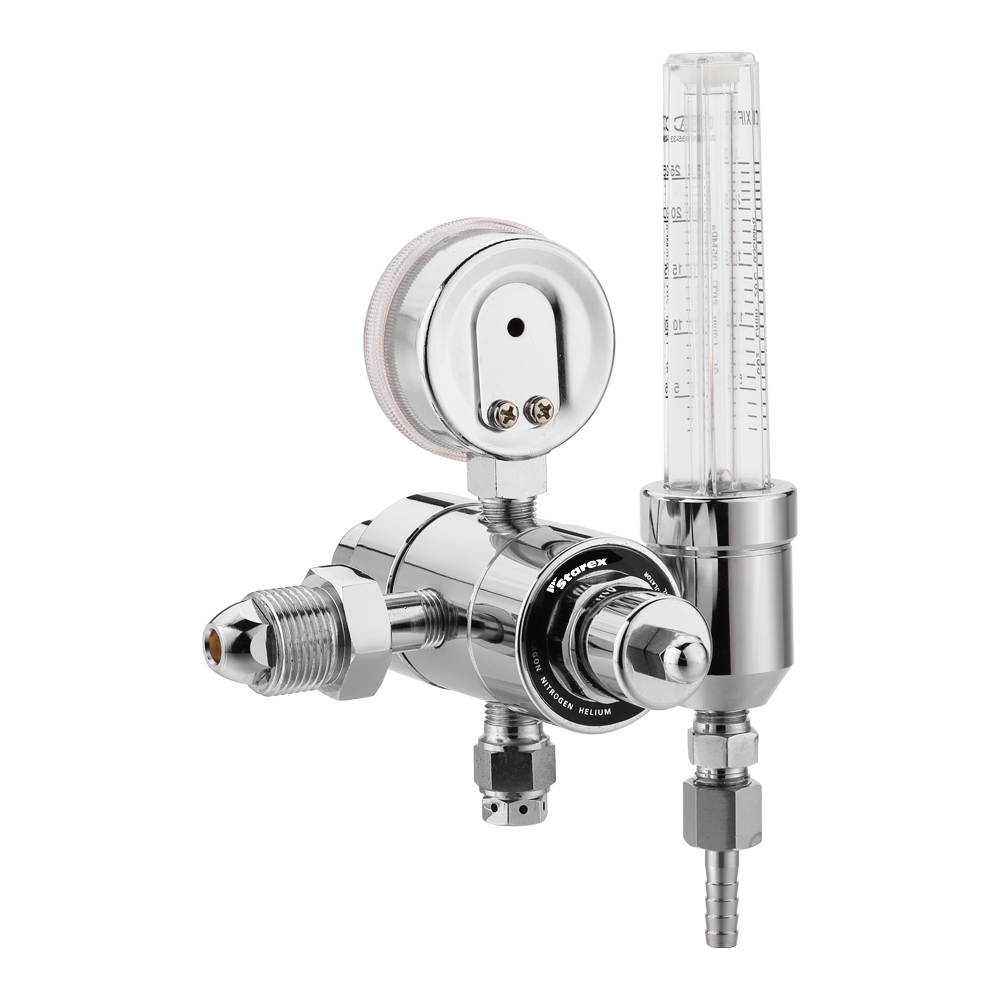

FL1820
STAREX
| Quantity: | |
|---|---|
FEATURES:
*MIG/TIG applications
*Two stage construction
*Machined brass body
*Fully chromed housing cap of regulator
*Neoprene diaphragms
*Sintered metal inlet filter to trap impurities
*Flowmeter is backpressure compensated to ensure accurate readings when line restrictions are present
*Safety relief valve is set for all gases
*No soldered joints, for easy maintenance
*Side entry
| Model | Gas | Flow Range | Max. Working Pressure(Bar) | Outlet Pressure(Bar) |
| FL1820-25L-AR | Argon | 25(Lt./min) | 3000 | 3.5 |
| FL1820-25L-CD | Co2 | 25(Lt./min) | 3000 | 3.5 |
| FL1820-60S-AR | Argon | 60(SCFH) | 3000 | 3.5 |
| FL1820-60S-CD | Co2 | 60(SCFH) | 3000 | 3.5 |
FEATURES:
*MIG/TIG applications
*Two stage construction
*Machined brass body
*Fully chromed housing cap of regulator
*Neoprene diaphragms
*Sintered metal inlet filter to trap impurities
*Flowmeter is backpressure compensated to ensure accurate readings when line restrictions are present
*Safety relief valve is set for all gases
*No soldered joints, for easy maintenance
*Side entry
| Model | Gas | Flow Range | Max. Working Pressure(Bar) | Outlet Pressure(Bar) |
| FL1820-25L-AR | Argon | 25(Lt./min) | 3000 | 3.5 |
| FL1820-25L-CD | Co2 | 25(Lt./min) | 3000 | 3.5 |
| FL1820-60S-AR | Argon | 60(SCFH) | 3000 | 3.5 |
| FL1820-60S-CD | Co2 | 60(SCFH) | 3000 | 3.5 |
