2290-H
STAREX
| Quantity: | |
|---|---|

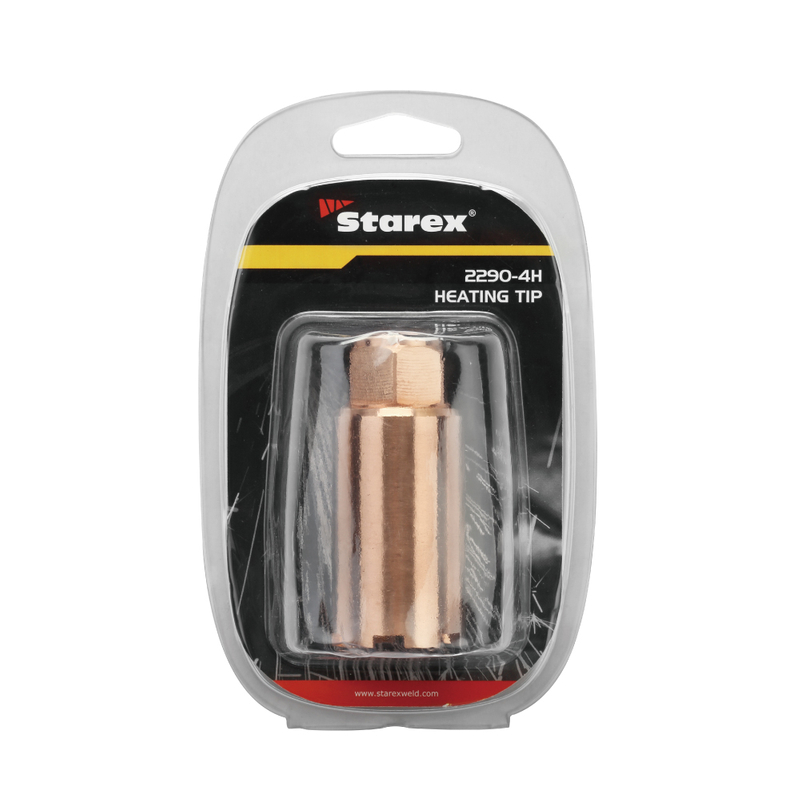

As a premier manufacturer and direct industrial supplier, we present the Heavy Duty Propane / Natural Gas Heating Nozzle 2290-H. Engineered for maximum thermal output, this one-piece heating tip delivers exceptional performance for high-demand fabrication environments.
Optimized for Propane and Natural Gas
Massive heat output exceeding 1,000,000 BTUs
Seamless integration with standard equipment
Direct from a trusted industrial manufacturer
When you hold the Heavy Duty 2290-H Heating Nozzle in your hand, the immediate sensation is one of uncompromising solidity. Crafted from premium-grade materials, the substantial weight of its one-piece construction speaks volumes about its ability to withstand the punishing realities of heavy industrial use. The precisely machined splines and flawlessly threaded base reflect a level of craftsmanship designed not just to look professional, but to perform flawlessly under extreme thermal stress. As the gas ignites, the nozzle produces a steady, concentrated roar—a testament to its superior gas mixing and flow dynamics. There is no sputtering or uneven flame distribution; instead, you witness a perfectly shaped, intensely hot cone of energy that rapidly brings thick metal plates to optimal working temperatures.
This is not merely a replacement part; it is a critical upgrade to your operational efficiency. By ensuring a consistent, high-velocity flame, this heating tip significantly reduces preheating times, allowing your fabrication teams to move faster and with greater precision. The smooth, polished exterior resists slag buildup, while the internal geometries are engineered to prevent flashbacks, ensuring a safe, continuous operation that keeps your assembly lines moving without costly interruptions. Every detail of this nozzle is focused on delivering relentless, reliable heat to the most demanding metalworking applications.
Precision engineering requires exact specifications. The following table outlines the rigorous technical parameters of the 2290-H series, ensuring that procurement specialists and facility managers can verify exact compatibility with their existing infrastructure. Every dimension and rating has been carefully calibrated to meet the stringent demands of heavy fabrication, guaranteeing that your operational requirements are fully satisfied.
| Product Type | Heavy-Duty Heating Tip / Nozzle |
|---|---|
| Model Series | 2290-H (Sizes 1H, 2H, 3H, 4H, 5H) |
| Fuel Gas Compatibility | Propane, Natural Gas, Propylene (HPM models), Butane, Methane |
| Heat Output | Produces more than 1,000,000 BTUs per hour |
| Thread Connection | 1/2" - 25 (M) |
| Tip Construction | One-Piece |
| Compatible Torch Handles | Harris 43-2, 63, V-315-C, K-43 |
| Compatible Mixers | E3-43, F-43, V-W-3 |
| Typical Applications | Heavy Fabrication, Shipbuilding |
| Operating Pressure (Oxygen) | 50 - 110 PSIG (varies by size) |
| Operating Pressure (Fuel Gas) | 10 - 30 PSIG (varies by size) |
Upgrading your industrial heating apparatus with the 2290-H series translates directly into measurable operational improvements. We have engineered this nozzle to address the most common pain points experienced in high-volume metalworking facilities. From reducing fuel consumption to minimizing operator fatigue through efficient heat transfer, every aspect of this tool is designed to enhance your bottom line.
Accelerated Preheating: The optimized internal gas mixer design channels fuel with minimal turbulence, creating a highly focused flame that penetrates thick metals rapidly.
Enhanced Operator Safety: The robust one-piece architecture significantly mitigates the risk of dangerous flashbacks, providing peace of mind during continuous, high-intensity operations.
Reduced Downtime: By utilizing high-density copper alloys, the nozzle resists thermal degradation, meaning fewer replacements and longer uninterrupted production cycles.
Streamlined Inventory: Compatibility with multiple alternate fuel gases means your facility can consolidate its consumable inventory, simplifying procurement and storage.
Managing operational expenses is a critical priority for any large-scale fabrication facility. The 2290-H heating nozzle is specifically engineered to maximize the thermodynamic potential of cost-effective alternative fuel gases, including propane, natural gas, and propylene. By moving away from more expensive traditional fuels without sacrificing performance, your operation can realize significant cost savings.
Achieves a staggering heat output of over 1,000,000 BTUs per hour, ensuring that even the most massive steel structures reach target temperatures rapidly.
The precision-engineered flutes ensure an optimal oxygen-to-fuel ratio, resulting in a clean, complete combustion that minimizes wasted gas and reduces atmospheric emissions within the workshop.
Delivers a consistent, high-velocity flame that maintains its integrity even in drafty, open-air environments like shipyards.
We understand that overhauling your entire inventory of welding and heating equipment is a massive, often unjustifiable capital expense. Therefore, the 2290-H series is designed with universal integration in mind. It serves as a direct, drop-in upgrade for your existing hardware ecosystem, allowing you to enhance performance with minimal disruption.
Features an industry-standard 1/2" - 25 (M) thread connection, ensuring a secure, leak-free seal with a wide array of existing equipment.
Flawlessly compatible with mainstream torch handles such as the Harris 43-2, 63, V-315-C, and K-43, eliminating the need for proprietary adapters.
Pairs perfectly with E3-43 and F-43 mixers, allowing your procurement team to source this high-performance nozzle without disrupting your current supply chain of handles and mixers.
Industrial environments are unforgiving. Equipment is routinely dropped, exposed to extreme thermal shock, and subjected to continuous, grueling use. The 2290-H heating nozzle is built to survive and thrive in these exact conditions. Its heavy-duty, one-piece construction is a deliberate design choice to eliminate the weak points found in multi-part assembled nozzles.
Machined from a single block of high-thermal-conductivity copper alloy, ensuring uniform heat dissipation and preventing the tip from melting or deforming under its own massive heat output.
The absence of brazed joints or threaded sub-components means there are zero points of failure for gas leaks, drastically extending the operational lifespan of the tool.
The rugged exterior easily withstands the physical impacts common in heavy metalworking, reducing the frequency of your replacement cycles and lowering long-term maintenance costs.
No two heating jobs are exactly alike. A localized repair on a cast iron block requires a vastly different thermal approach than preheating a massive steel I-beam for structural welding. To accommodate the diverse needs of a modern fabrication plant, the 2290-H series is available in a comprehensive matrix of sizes, ensuring you always have the exact tool for the task.
Available in a complete range from Size 1H to Size 5H, providing granular control over your thermal application.
Smaller sizes offer precise, concentrated heat for localized straightening or bending, minimizing the heat-affected zone on sensitive components.
The largest sizes unleash the full 1,000,000+ BTU potential, blanketing massive surface areas with intense heat for rapid, uniform preheating prior to heavy structural welding.
In a bustling, dimly lit shipyard or a fast-paced manufacturing floor, clarity and ease of use are paramount. Misidentifying a heating tip can lead to suboptimal performance or, worse, severe safety hazards. We have engineered the 2290-H series to be as user-friendly as it is powerful, ensuring that your technicians can work confidently and efficiently.
Each nozzle features deeply engraved, high-contrast markings denoting the exact model and size, remaining legible even after months of exposure to soot and high temperatures.
This clear identification system empowers shop floor workers to instantly select the correct tool for the specific job, eliminating guesswork and preventing dangerous mismatches with gas pressures.
The standard hex-base design allows for swift, secure installation and removal using standard wrenches, minimizing setup time and keeping your workforce focused on the task at hand.
The true value of the 2290-H heating nozzle is realized in the field, where time is money and performance is non-negotiable. This tool is not designed for light hobbyist work; it is a heavy-duty implement forged for the most demanding industrial sectors. It empowers your workforce to tackle monumental tasks with confidence and efficiency.
Shipbuilding and Repair: Ideal for preheating massive hull plates and structural ribs, ensuring deep, flawless weld penetration in maritime construction.
Heavy Metal Fabrication: Rapidly brings thick steel beams and columns to optimal working temperatures, critical for structural integrity in construction and infrastructure projects.
Large-Scale Pipe Fitting: Provides the intense, enveloping heat required to bend, shape, and weld large-diameter industrial pipelines.
Casting Repair and Stress Relieving: Delivers controlled, high-volume heat to large metal castings, facilitating effective repairs and preventing post-weld cracking.
Partnering with the right manufacturer is just as critical as selecting the right tool. As a dedicated direct supplier of industrial welding and heating equipment, we offer more than just a product; we provide a reliable foundation for your operational success. Our commitment to excellence ensures that every nozzle delivered to your facility meets the highest standards of quality and performance.
Direct Manufacturer Advantage: By sourcing directly from us, you eliminate intermediary markups, securing premium industrial-grade equipment at highly competitive procurement rates.
Stringent Quality Control: Every single 2290-H nozzle undergoes rigorous pressure and flow testing before it leaves our facility, guaranteeing out-of-the-box reliability.
Scalable Supply Chain: Whether you are outfitting a single workshop or standardizing equipment across multiple global shipyards, our robust manufacturing capacity ensures consistent, on-time delivery.
Expert Technical Support: Our team of engineering specialists is always available to assist your procurement and technical staff in selecting the optimal configurations for your specific operational needs.
To assist your procurement and engineering teams in making an informed decision, we have compiled a list of the most commonly asked technical questions regarding the 2290-H heating nozzle series. These answers provide deeper insights into the operational capabilities and maintenance requirements of the product.
No. The 2290-H series is explicitly engineered for alternative fuel gases such as Propane, Natural Gas, Propylene, Butane, and Methane. Using Acetylene with this specific multi-flame heating tip design poses a severe safety risk, including the potential for dangerous flashbacks and equipment destruction. Always ensure you are using the correct fuel gas.
The operating pressure varies significantly depending on the specific size of the nozzle being utilized. For the larger sizes, such as the 4H and 5H, the oxygen pressure requirement typically ranges from 50 to 110 PSIG. It is crucial to consult the specific flow chart for the exact size to ensure optimal flame characteristics and prevent gas starvation.
The primary advantage of the one-piece construction is its extremely low maintenance requirement. Because there are no internal threads or brazed joints to fail, standard maintenance is limited to keeping the gas orifices clean. We recommend using a dedicated tip cleaner of the appropriate size to gently remove any carbon buildup or slag from the flutes, ensuring a consistent, balanced flame.
This nozzle features a standard 1/2" - 25 (M) thread connection, which is fully compatible with industry-standard heavy-duty handles, including the 43-2, 63, V-315-C, and K-43 models. You will need to use an appropriate mixer, such as the E3-43 or F-43, to connect the nozzle to the handle securely.
The massive heat output is achieved through a combination of large, precision-drilled gas orifices and optimized internal flow dynamics. When paired with the correct high-flow mixer and supplied with adequate gas volumes (often requiring manifolded cylinders for continuous operation), the nozzle efficiently combusts large quantities of fuel, converting it directly into intense, usable thermal energy.
