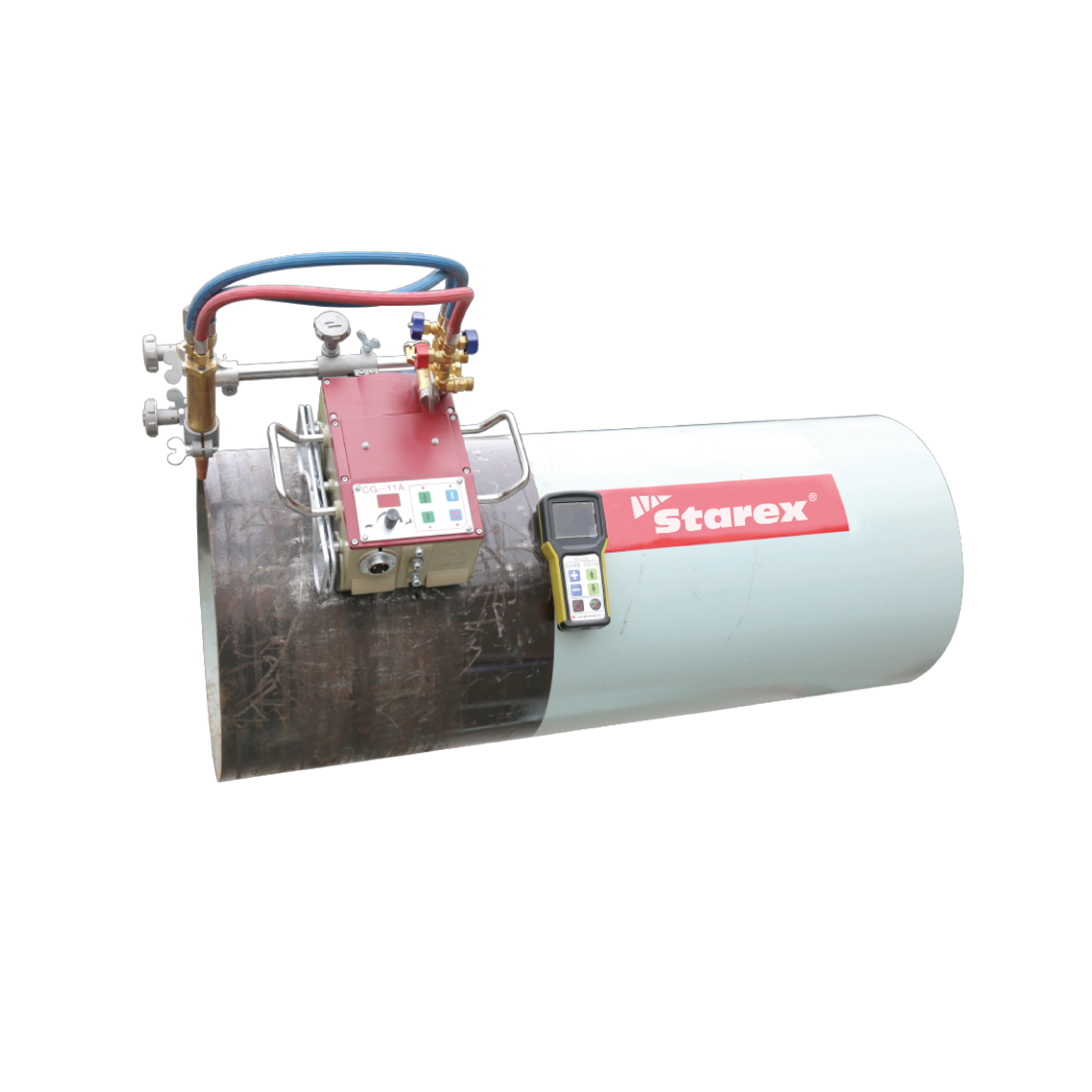

CG2-11A Magnetic Pipe Cutting Machine
(wireless remote control)
● The main body is made of aluminum alloy, light and portable.
● lt adopts permanent magnet wheel to crawl on pipe while cutting.
● Can be used for parallel,upright and face upward cutting.
● Bevel angle: I.Y.V(45).
● Especially for pipe cutting,convenient in operation.
● Widely applied to oil production,chemical pipe project.
Remark: lf the dia>600mm, should use optional guide band.
| Model | LxWxH (mm) | Supply Voltage V/HZ | Dia.of Circle Cutting (mm) | Cutting Thickness (mm) | Cutting Speed (mm/min) | Magnetic Adsorbability (Kg) | Total Weight (kg) |
| CG2-11A | 350x310x180 | AC220/50 | >φ108 | 6-50 | 50-750 | >50 | 20 |
