Single stage | Flowmeter Regulators
CAPACITY : Medium Duty
NET WEIGHT : 0.9 kg / each
OUTLET PRESSURE :3.5 Bar (Preset)
CERTIFICATIONS :
Conform with EN ISO 2503

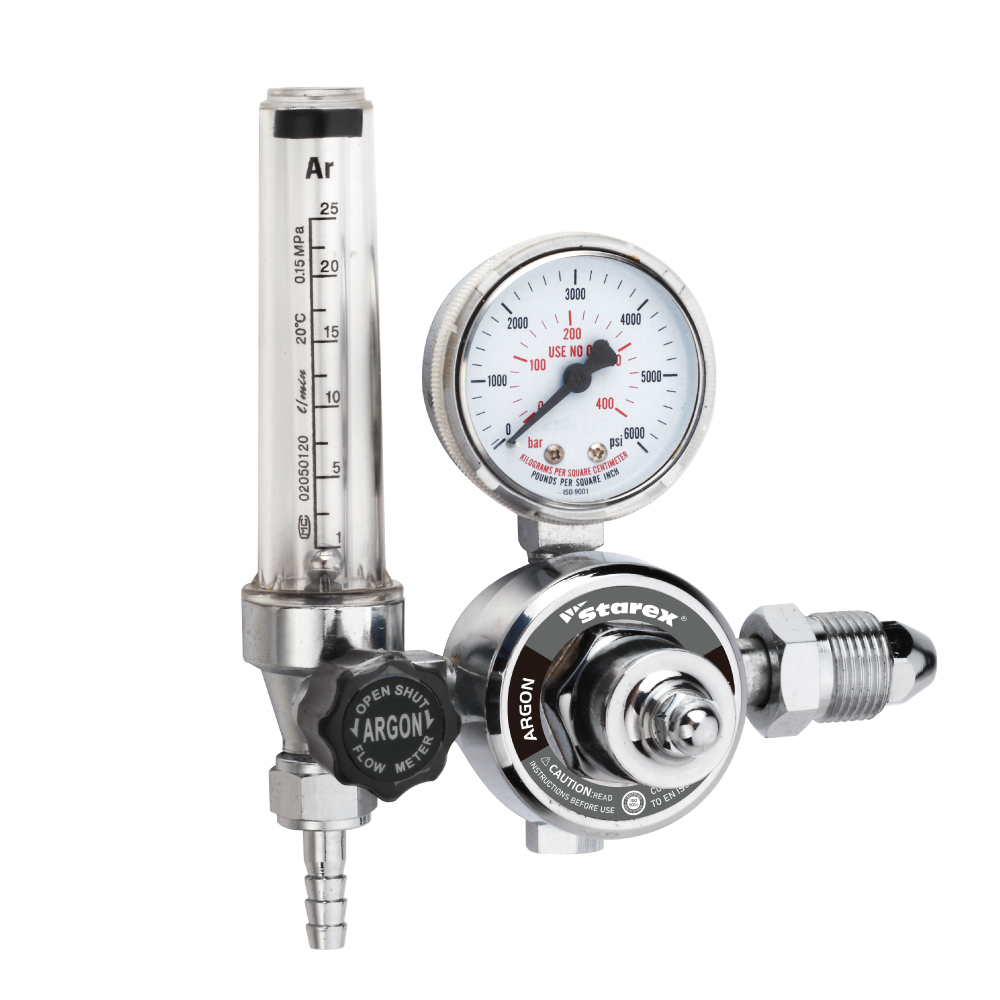

FL1700
STAREX
| MODEL: | |
|---|---|
| Quantity: | |
FEATURES:
MIG/TIG applications
Single stage construction
Machined brass body
Fully chromed
Neoprene diaphragms
Sintered metal inlet filter to trap impurities
Accurate gas flow regulator
Safety relief valve is set for all gases
No soldered joints, for easy maintenance
Side entry
Economy style
| Model | Gas | Flow Range | Max. Working Pressure(Bar) | Outlet Pressure(Bar) |
| FL1670-25L-AR | Argon | 25(Lt./min) | 3000 | 3.5 |
| FL1670-25L-CD | Co2 | 25(Lt./min) | 3000 | 3.5 |
| FL1670-60S-AR | Argon | 60(SCFH) | 3000 | 3.5 |
| FL1670-60S-CD | Co2 | 60(SCFH) | 3000 | 3.5 |
| FL1700-25L-AR | Argon | 25(Lt./min) | 3000 | 3.5 |
| FL1700-25L-CD | Co2 | 25(Lt./min) | 3000 | 3.5 |
| FL1700-60S-AR | Argon | 60(SCFH) | 3000 | 3.5 |
| FL1700-60S-CD | Co2 | 60(SCFH) | 3000 | 3.5 |
FEATURES:
MIG/TIG applications
Single stage construction
Machined brass body
Fully chromed
Neoprene diaphragms
Sintered metal inlet filter to trap impurities
Accurate gas flow regulator
Safety relief valve is set for all gases
No soldered joints, for easy maintenance
Side entry
Economy style
| Model | Gas | Flow Range | Max. Working Pressure(Bar) | Outlet Pressure(Bar) |
| FL1670-25L-AR | Argon | 25(Lt./min) | 3000 | 3.5 |
| FL1670-25L-CD | Co2 | 25(Lt./min) | 3000 | 3.5 |
| FL1670-60S-AR | Argon | 60(SCFH) | 3000 | 3.5 |
| FL1670-60S-CD | Co2 | 60(SCFH) | 3000 | 3.5 |
| FL1700-25L-AR | Argon | 25(Lt./min) | 3000 | 3.5 |
| FL1700-25L-CD | Co2 | 25(Lt./min) | 3000 | 3.5 |
| FL1700-60S-AR | Argon | 60(SCFH) | 3000 | 3.5 |
| FL1700-60S-CD | Co2 | 60(SCFH) | 3000 | 3.5 |
